Highlights
View Details- Highest performing KVM-over-IP switch provides a new level of Ultra HD 4K performance for remote access and management
- Dimensions: 1.18"H x 5.51"W x 5.67"D
- Contains 1 x Gigabit Ethernet (RJ-45) port IPv6/IPv4 dual stack, HDMI port with locking cord, USB-B to server USB-A port, HDMI passthrough port. 2xUSB-A port for keyboard and mouse control

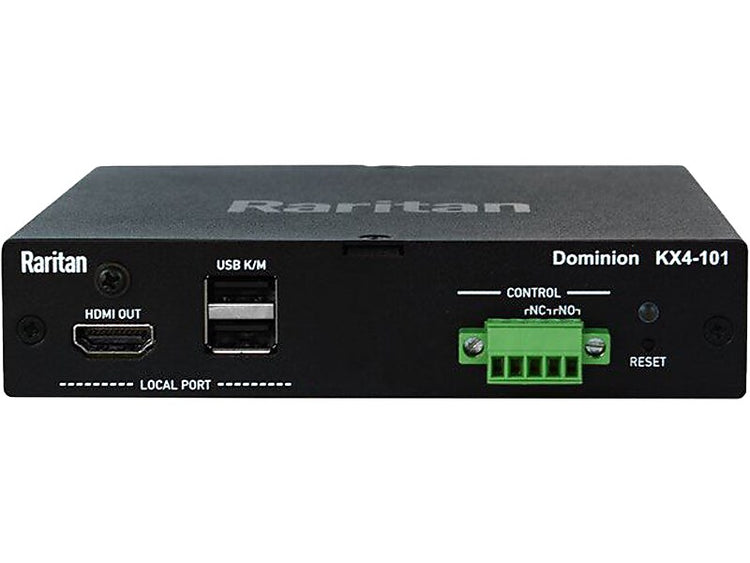

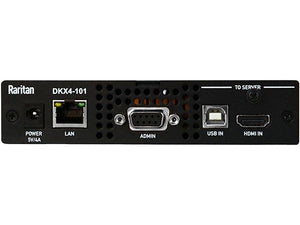

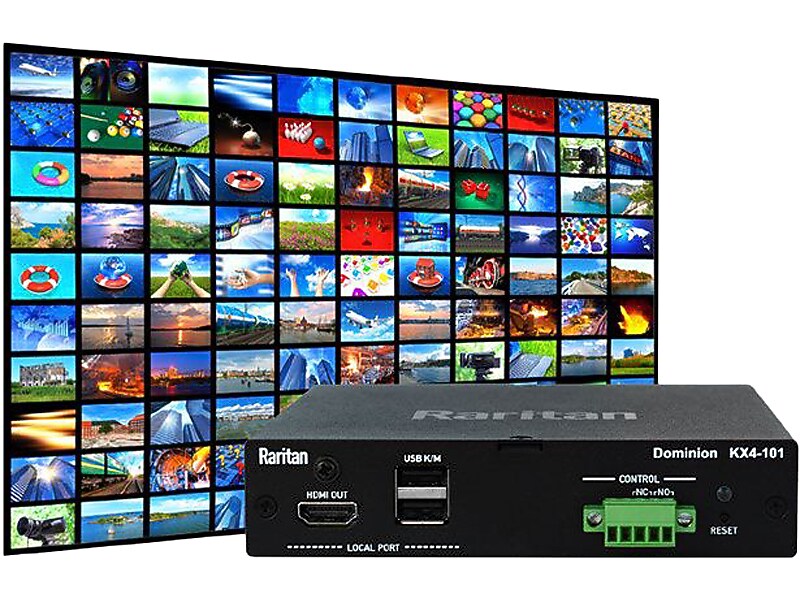

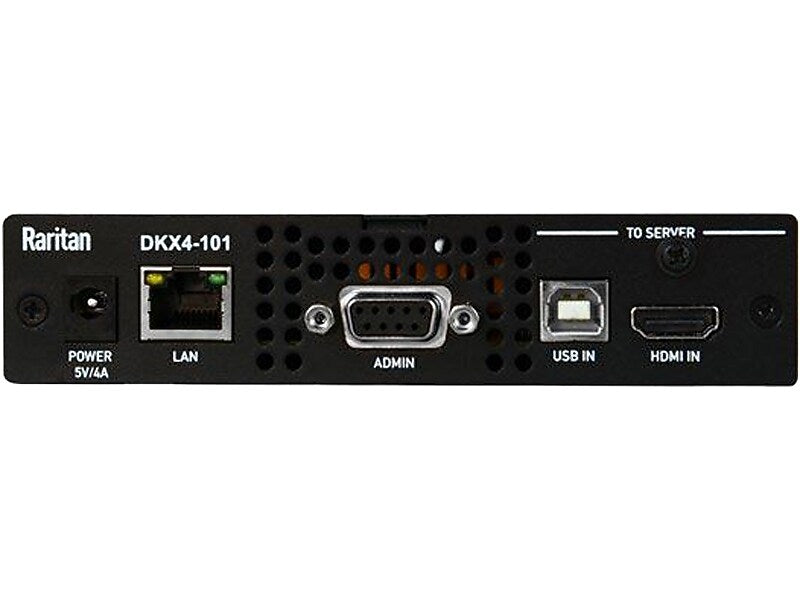

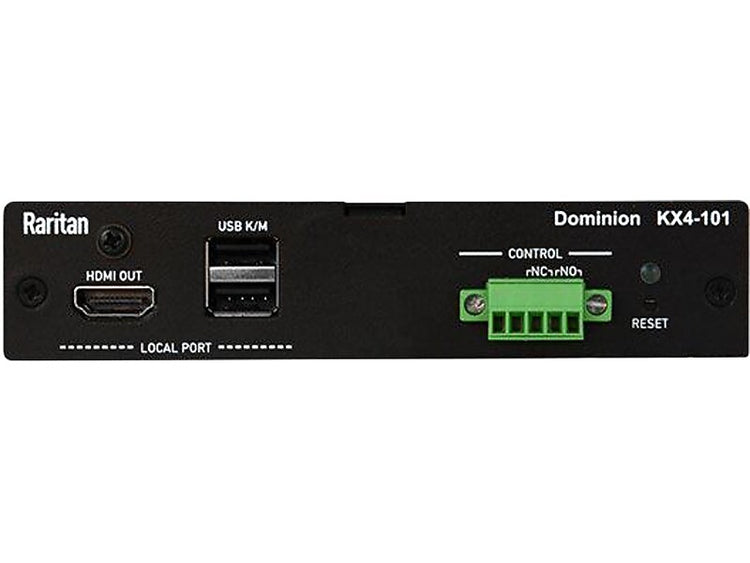

Raritan Dominion DKX4-101 KVM-over-IP Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Raritan's Dominion highest performing KVM-over-IP switch, provides a new level of Ultra HD 4K performance for remote access and management. More powerful and flexible than any other KVM-over-IP solution, it supports higher video resolutions, faster frame rates, higher video quality, and substantially faster virtual media. Manage up to eight serial devices with optional DSAM modules. New fanless operation with no moving parts — silent operation with enhanced reliability and longer life. Switch supports unblocked, Java-free, BIOS-level remote access of a single server, PC or workstation over LAN, WAN or even the Internet. A native HDMI device, switch has available cables/adapters for VGA, DVI, Mini DisplayPort, and USB-C. It provides users the most flexibility with access remote computers via User Station, laptop, PC or smartphone. Switch supports many of the popular Dominion features such as virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to eight simultaneous sessions, and much, much more.
- Highest performing KVM-over-IP switch provides a new level of Ultra HD 4K performance for remote access and management
- Dimensions: 1.18"H x 5.51"W x 5.67"D
- Contains 1 x Gigabit Ethernet (RJ-45) port IPv6/IPv4 dual stack, HDMI port with locking cord, USB-B to server USB-A port, HDMI passthrough port. 2xUSB-A port for keyboard and mouse control
- Supports access to servers with 4K video resolution (3840x2160), up to 30 fps, and HD resolutions up to 1920x1080 and 1920x1200 at up to 60 fps with high quality 4:4:4 color for high quality images and video
- Features user-configurable bandwidth to operate over LAN, WAN, and even the Internet for emergency out-of-hours IT support
- Accessible via user station, laptop, PC, and smartphone supporting users, managers, engineers, and IT
- Supports BIOS-level access, virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption
- Provides native support for HDMI, with optional adapters for VGA, DVI, Mini DisplayPort and USB-C
- Connects to a single server, without the possibility of blocking
- Silent operation with no moving parts for broadcast, A/V and media. Increased reliability and longer life
- Rack-mountable with included L-bracket
- Compatible with Windows, Linux, and macOS
- 2-year manufacturer limited warranty
- Black
| Manufacturer # | DKX4101 |
| Brand Name | Raritan |
| Connector, Port or Interface Type(s) | HDMI, RJ-45, USB-A |
| Connects Devices (to and From) | USB-B to server USB-A port |
| Dvi | Yes |
| Display Port | Yes |
| Hdmi | Yes |
| Ip Control | Yes |
| Kvm Cable or Switch Type | KVM Switch |
| Maximum Resolution | 4K |
| Os Compatibility | Windows, Linux, and macOS |
| Power Source | 100-240 VAC 50-60Hz |
| Rack-mountable | Rack-Mountable |
| Series or Collection | Dominion |
| Usb | Yes |
| Vga | Yes |
| Warranty Information | 2 Year |
Details
Raritan's Dominion highest performing KVM-over-IP switch, provides a new level of Ultra HD 4K performance for remote access and management. More powerful and flexible than any other KVM-over-IP solution, it supports higher video resolutions, faster frame rates, higher video quality, and substantially faster virtual media. Manage up to eight serial devices with optional DSAM modules. New fanless operation with no moving parts — silent operation with enhanced reliability and longer life. Switch supports unblocked, Java-free, BIOS-level remote access of a single server, PC or workstation over LAN, WAN or even the Internet. A native HDMI device, switch has available cables/adapters for VGA, DVI, Mini DisplayPort, and USB-C. It provides users the most flexibility with access remote computers via User Station, laptop, PC or smartphone. Switch supports many of the popular Dominion features such as virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to eight simultaneous sessions, and much, much more.
- Highest performing KVM-over-IP switch provides a new level of Ultra HD 4K performance for remote access and management
- Dimensions: 1.18"H x 5.51"W x 5.67"D
- Contains 1 x Gigabit Ethernet (RJ-45) port IPv6/IPv4 dual stack, HDMI port with locking cord, USB-B to server USB-A port, HDMI passthrough port. 2xUSB-A port for keyboard and mouse control
- Supports access to servers with 4K video resolution (3840x2160), up to 30 fps, and HD resolutions up to 1920x1080 and 1920x1200 at up to 60 fps with high quality 4:4:4 color for high quality images and video
- Features user-configurable bandwidth to operate over LAN, WAN, and even the Internet for emergency out-of-hours IT support
- Accessible via user station, laptop, PC, and smartphone supporting users, managers, engineers, and IT
- Supports BIOS-level access, virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption
- Provides native support for HDMI, with optional adapters for VGA, DVI, Mini DisplayPort and USB-C
- Connects to a single server, without the possibility of blocking
- Silent operation with no moving parts for broadcast, A/V and media. Increased reliability and longer life
- Rack-mountable with included L-bracket
- Compatible with Windows, Linux, and macOS
- 2-year manufacturer limited warranty
- Black
