Highlights
View Details- Power distribution unit enable advanced, user-customizable power control and active monitoring
- Measures 988 mm x 55 mm x 46 mm
- Comes in black color for new look

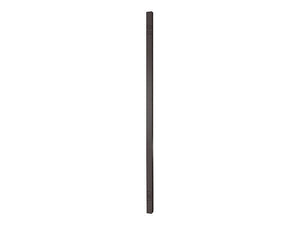

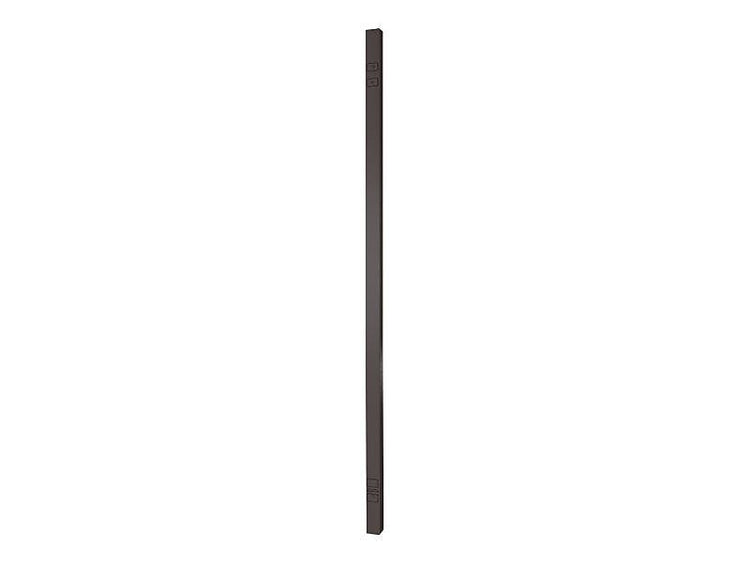

Schneider 100V, 120V Switched Power Distribution Unit, 8-Outlet, Black (AP8931)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Schneider® AP8931 APC® Electric Switched rack power distribution unit with 8 outputs reduce circuit overload during power recovery. Enables power on/off functionality for power recycling to remotely reboot equipment. Includes ultra low profile circuit breakers, real power monitoring, a temperature/humidity sensor port and locking IEC receptacles. Has a nominal input voltage rating of 100/120 V and frequency rating of 50/60 Hz. Operates at a temperature range of -5 to 45 deg C.
- Power distribution unit enable advanced, user-customizable power control and active monitoring
- Measures 988 mm x 55 mm x 46 mm
- Comes in black color for new look
- Features input voltage rating of 100V, 120V and input frequency of 50/60 Hz for reliable operation
- Output voltage rating of 100 V, 120 V and 8 x NEMA 5-15R output connections
- Remotely manage outlets so users can turn outlets off
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space
- Full-featured network management interfaces that offer standards-based management via Web
- Operating environment of -5 - 45 deg C, operating relative humidity of 5 - 95% and operating elevation of 0-3000 meters for better performance
- Alarm threshold avoids overloaded circuits
- Aggregate current draw per rack PDU is displayed on the unit via a digital display
- Power delays allow users to configure the sequence in which power is turned on or off for each outlet
- LED indicator indicates overload and warning conditions based on the user-defined alarm thresholds
- Easily upgrade firmware via network download for future product enhancements
- Integrates with StruxureWare data center expert for added flexibility
- Single input power source supplies power from one branch whip to multiple pieces of equipment
- Meets cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL certification and standards
- Weighs 4.16 KG
- Comes with 2 years limited warranty
| Manufacturer # | AP8931 |
| Brand Name | Schneider |
| Depth in Inches | 1.81 |
| Height in Inches | 38.9 |
| Input Connector | NEMA 5-15P |
| Input Voltage | 100V, 120V |
| Load Capacity | 1440 VA |
| Operating Temperature (celsius) | -5 - 45 deg C |
| Outlet Connectors | 8 x NEMA 5-15R |
| Outlet Count | 8 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 100V, 120V |
| Overload Protection | Yes |
| Power Distribution Unit Type | Switched |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 9.17 |
| Width in Inches | 2.17 |
Details
Schneider® AP8931 APC® Electric Switched rack power distribution unit with 8 outputs reduce circuit overload during power recovery. Enables power on/off functionality for power recycling to remotely reboot equipment. Includes ultra low profile circuit breakers, real power monitoring, a temperature/humidity sensor port and locking IEC receptacles. Has a nominal input voltage rating of 100/120 V and frequency rating of 50/60 Hz. Operates at a temperature range of -5 to 45 deg C.
- Power distribution unit enable advanced, user-customizable power control and active monitoring
- Measures 988 mm x 55 mm x 46 mm
- Comes in black color for new look
- Features input voltage rating of 100V, 120V and input frequency of 50/60 Hz for reliable operation
- Output voltage rating of 100 V, 120 V and 8 x NEMA 5-15R output connections
- Remotely manage outlets so users can turn outlets off
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space
- Full-featured network management interfaces that offer standards-based management via Web
- Operating environment of -5 - 45 deg C, operating relative humidity of 5 - 95% and operating elevation of 0-3000 meters for better performance
- Alarm threshold avoids overloaded circuits
- Aggregate current draw per rack PDU is displayed on the unit via a digital display
- Power delays allow users to configure the sequence in which power is turned on or off for each outlet
- LED indicator indicates overload and warning conditions based on the user-defined alarm thresholds
- Easily upgrade firmware via network download for future product enhancements
- Integrates with StruxureWare data center expert for added flexibility
- Single input power source supplies power from one branch whip to multiple pieces of equipment
- Meets cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL certification and standards
- Weighs 4.16 KG
- Comes with 2 years limited warranty
