Highlights
View Details- Power distribution unit offer active metering to enable energy optimization and circuit protection
- Measures 1791 mm x 55 mm x 44 mm
- Comes in black color for new look

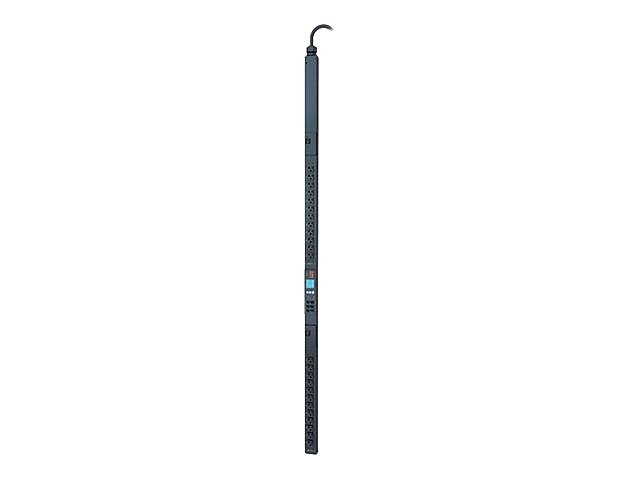

Schneider Electric 100 - 120 VAC Metered Power Distribution Unit, 24-Outlet, Black (AP8832)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Schneider® AP8832 APC® Electric Metered rack power distribution unit with 24 outputs offer active metering to allow energy optimization and circuit protection. User-defined alarm reduces the risk with real-time local and remote alerts to warn of potential circuit overloads. Includes ultra low profile circuit breakers, real power monitoring, a temperature/humidity sensor port and locking IEC receptacles. Has a nominal input voltage rating of 100/120 V and frequency rating of 50/60 Hz. Operates at a temperature range of -5 to 45 deg C.
- Power distribution unit offer active metering to enable energy optimization and circuit protection
- Measures 1791 mm x 55 mm x 44 mm
- Comes in black color for new look
- Features input voltage rating of 100V, 120V and input frequency of 50/60 Hz for reliable operation
- Output voltage rating of 100 V, 120 V and 24 x NEMA 5-20R output connections
- Local digital display helps installers avoid overloaded circuits
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space
- Full-featured network management interfaces that offer standards-based management via Web
- Operating environment of -5 - 45 deg C, operating relative humidity of 5 - 95percentage and operating elevation of 0-3000 meters for better performance
- Alarm threshold avoids overloaded circuits
- LED indicator indicates overload and warning conditions based on the user-defined alarm thresholds
- Integrates with StruxureWare data center expert for added flexibility
- Easily upgrade firmware via network download for future product enhancements
- Contains horizontal, vertical and toolless-mount varieties
- Meets cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL certification and standards
- Weighs 6.67 kg
- Comes with 2 years limited warranty
| Manufacturer # | AP8832 |
| Brand Name | Schneider Electric |
| Depth in Inches | 1.73 |
| Height in Inches | 70.51 |
| Input Voltage | 100 - 120 VAC |
| Operating Temperature (celsius) | -5 - 45 deg C |
| Outlet Count | 24 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 100 - 120 V |
| Power Distribution Unit Type | Metered |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 14.7 |
| Width in Inches | 2.17 |
Details
Schneider® AP8832 APC® Electric Metered rack power distribution unit with 24 outputs offer active metering to allow energy optimization and circuit protection. User-defined alarm reduces the risk with real-time local and remote alerts to warn of potential circuit overloads. Includes ultra low profile circuit breakers, real power monitoring, a temperature/humidity sensor port and locking IEC receptacles. Has a nominal input voltage rating of 100/120 V and frequency rating of 50/60 Hz. Operates at a temperature range of -5 to 45 deg C.
- Power distribution unit offer active metering to enable energy optimization and circuit protection
- Measures 1791 mm x 55 mm x 44 mm
- Comes in black color for new look
- Features input voltage rating of 100V, 120V and input frequency of 50/60 Hz for reliable operation
- Output voltage rating of 100 V, 120 V and 24 x NEMA 5-20R output connections
- Local digital display helps installers avoid overloaded circuits
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space
- Full-featured network management interfaces that offer standards-based management via Web
- Operating environment of -5 - 45 deg C, operating relative humidity of 5 - 95percentage and operating elevation of 0-3000 meters for better performance
- Alarm threshold avoids overloaded circuits
- LED indicator indicates overload and warning conditions based on the user-defined alarm thresholds
- Integrates with StruxureWare data center expert for added flexibility
- Easily upgrade firmware via network download for future product enhancements
- Contains horizontal, vertical and toolless-mount varieties
- Meets cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL certification and standards
- Weighs 6.67 kg
- Comes with 2 years limited warranty
| Attribute Name | Attribute Value |
|---|
