Highlights
View Details- Power distribution unit
- Dimensions: 15.28"H x 1.72"W x 3.66"D
- Color: Black and silver

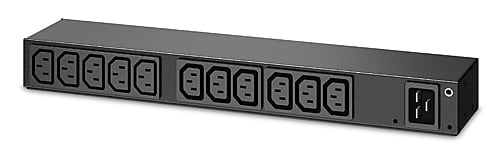

Schneider Electric 100 - 240 VAC Rack Power Distribution Unit, 1U Rack Mount, Black (AP6020A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Rack power distribution unit with 100 - 240 V nominal input voltage and 20 A maximum input current.
- Power distribution unit
- Dimensions: 15.28"H x 1.72"W x 3.66"D
- Color: Black and silver
- Nominal voltage: 100 - 240 V Input, Frequency: 50 - 60 Hz
- Input current: 20 A, Regulatory derated input current: 16 A
- Input receptacles: IEC-320 C20
- Rack height: 1U
- Certifications and standards: cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH, RoHS
- Weight: 3.3 lbs
- 2 years repair or replace warranty
| Manufacturer # | AP6020A |
| Brand Name | Schneider Electric |
| Depth in Inches | 3.66 |
| Height in Inches | 15.28 |
| Input Connector | IEC-320 C20 |
| Input Current | 20 A |
| Input Voltage | 100 - 240 VAC |
| Output Frequency | 50 - 60 Hz |
| Power Distribution Unit Type | Rack Power |
| Rack Units | 1U |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 3.3 |
| Width in Inches | 1.72 |
Details
Rack power distribution unit with 100 - 240 V nominal input voltage and 20 A maximum input current.
- Power distribution unit
- Dimensions: 15.28"H x 1.72"W x 3.66"D
- Color: Black and silver
- Nominal voltage: 100 - 240 V Input, Frequency: 50 - 60 Hz
- Input current: 20 A, Regulatory derated input current: 16 A
- Input receptacles: IEC-320 C20
- Rack height: 1U
- Certifications and standards: cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH, RoHS
- Weight: 3.3 lbs
- 2 years repair or replace warranty
| Attribute Name | Attribute Value |
|---|
