Highlights
View Details- Dimensions: 4.6"H x 2.4"W x 6.77"D
- Meets or exceeds IP66 standard
- Made from ASA, EPDM, and aluminum alloy, comes in black

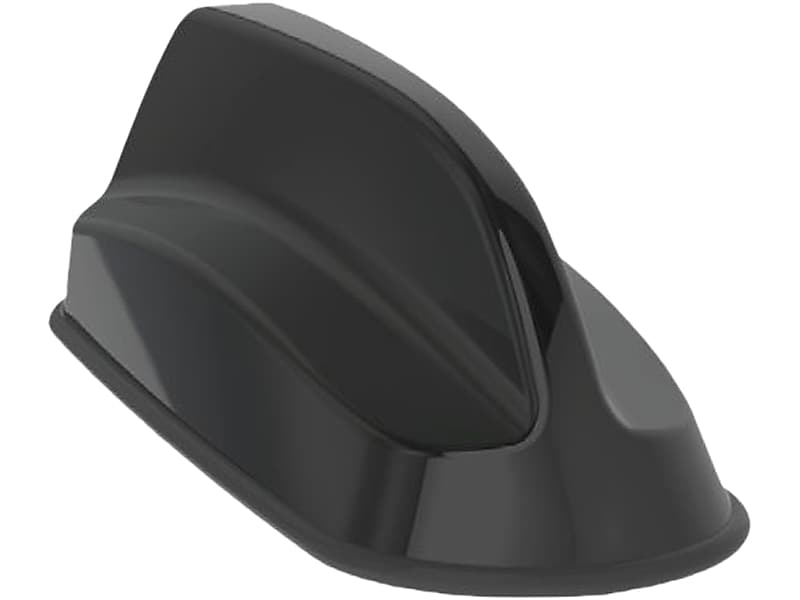

Sierra Wireless AirLink 6-in-1 SharkFin Antenna, Black (6001197)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Sierra Wireless is building the Internet of Things with intelligent wireless solutions that empower organizations to innovate in the connected world. Tested and certified to operate with AirLink routers and gateways, the AirLink 6-in-1 SharkFin antenna has a compact OEM style housing that contains a 2x2 MiMo antenna function for 2G, 3G, and 4G LTE frequencies, an active antenna for GNSS with 26dB gain LNA and offers dual-band 3x3 MiMo Wi-Fi (2.4/5.0GHz) in a compact package.
- Dimensions: 4.6"H x 2.4"W x 6.77"D
- Meets or exceeds IP66 standard
- Made from ASA, EPDM, and aluminum alloy, comes in black
- Frequency range: elements 2 and 3: 698-960MHz, 1710-2170MHz, 2500-3800MHz; elements 4 and 5: 2.4GHz/4.9-6.0GHz; element 6 (Whip): 2.4GHz/4.9-6.0GHz; GPS/GNSS (element 1): 1562-1612MHz
- Gain: 26dB LNA
- Operational bands: elements 2 and 3: 2G/3G/4G LTE; elements 4, 5, and 6: 2.4/5GHz Wi-Fi
- Peak gain (isotropic): elements 2 and 3: 2dBi (698-960MHz), 5dBi (1710-3800MHz); elements 4, 5, and 6: 4dBi (2.4GHz), 6dBi (5.8GHz)
- Isolation with 13' CS29: more thah 11dB cellular; more than 19db Wi-Fi
- Typical efficiency without cable loss: more than 50% for elements 2 and 3
- Polarization: vertical
- Pattern: omnidirectional
- Impedance: 50 ohms
- Max input power: 25W
- Mounting type: bolt mount, 3/4" mounting hole
- Operating temperature: -40 to 176 degrees Fahrenheit
| Manufacturer # | 6001197 |
| Antenna | 6-in-1 SharkFin |
| Brand Name | Sierra Wireless |
| Color Family | Black |
| Depth in Inches | 6.77 |
| Frequencies | 2.4/5 GHz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Height in Inches | 4.6 |
| Series or Collection | AirLink |
| True Color | Black |
| Weight (lbs.) | 2.83 |
| Width in Inches | 2.4 |
| Wireless Bands | Dual Band |
Details
Sierra Wireless is building the Internet of Things with intelligent wireless solutions that empower organizations to innovate in the connected world. Tested and certified to operate with AirLink routers and gateways, the AirLink 6-in-1 SharkFin antenna has a compact OEM style housing that contains a 2x2 MiMo antenna function for 2G, 3G, and 4G LTE frequencies, an active antenna for GNSS with 26dB gain LNA and offers dual-band 3x3 MiMo Wi-Fi (2.4/5.0GHz) in a compact package.
- Dimensions: 4.6"H x 2.4"W x 6.77"D
- Meets or exceeds IP66 standard
- Made from ASA, EPDM, and aluminum alloy, comes in black
- Frequency range: elements 2 and 3: 698-960MHz, 1710-2170MHz, 2500-3800MHz; elements 4 and 5: 2.4GHz/4.9-6.0GHz; element 6 (Whip): 2.4GHz/4.9-6.0GHz; GPS/GNSS (element 1): 1562-1612MHz
- Gain: 26dB LNA
- Operational bands: elements 2 and 3: 2G/3G/4G LTE; elements 4, 5, and 6: 2.4/5GHz Wi-Fi
- Peak gain (isotropic): elements 2 and 3: 2dBi (698-960MHz), 5dBi (1710-3800MHz); elements 4, 5, and 6: 4dBi (2.4GHz), 6dBi (5.8GHz)
- Isolation with 13' CS29: more thah 11dB cellular; more than 19db Wi-Fi
- Typical efficiency without cable loss: more than 50% for elements 2 and 3
- Polarization: vertical
- Pattern: omnidirectional
- Impedance: 50 ohms
- Max input power: 25W
- Mounting type: bolt mount, 3/4" mounting hole
- Operating temperature: -40 to 176 degrees Fahrenheit
