Highlights
View Details- This four-port HDMI HDR mini splitter amplifier distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality
- Built-in Micro-USB port for power or firmware updates; contains 1 x HDMI input, 5 x HDMI output, and 1 x EDID management
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
SIIG CE-H23L11-S1 Mini Splitter Amplifier, Black
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

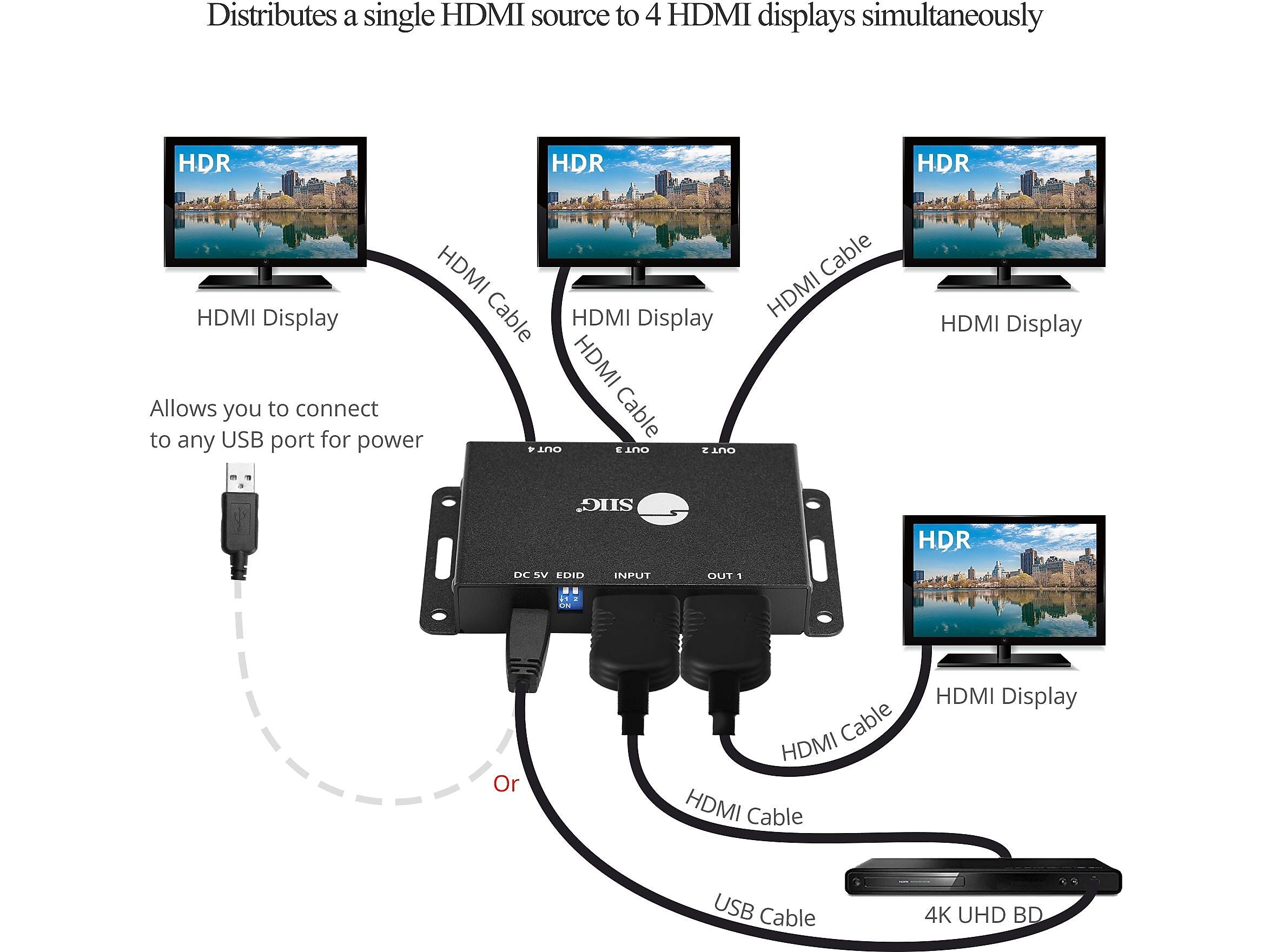

This SIIG four-port HDMI HDR mini splitter amplifier with EDID management distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality. Allows high-quality HDMI video/audio to be transmitted to four displays without signal degradation. Comes with adjustable EDID management and intelligent auto video scaling provides a cost effective and an advanced HDMI splitter solution.
- This four-port HDMI HDR mini splitter amplifier distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality
- Built-in Micro-USB port for power or firmware updates; contains 1 x HDMI input, 5 x HDMI output, and 1 x EDID management
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Supports 4K and 2K resolutions on 60Hz (YUV 4:4:4 8-bit) and HDR 4K and 2K resolutions on 60Hz (YUV 4:2:0 10-bit) with xvYCC, x.v.Color, and Deep Color
- Works with PS4 Pro/XBox One X/Apple Tv 4K/Fire Tv/Roku/Blu-Ray/Nvidia SHIELD

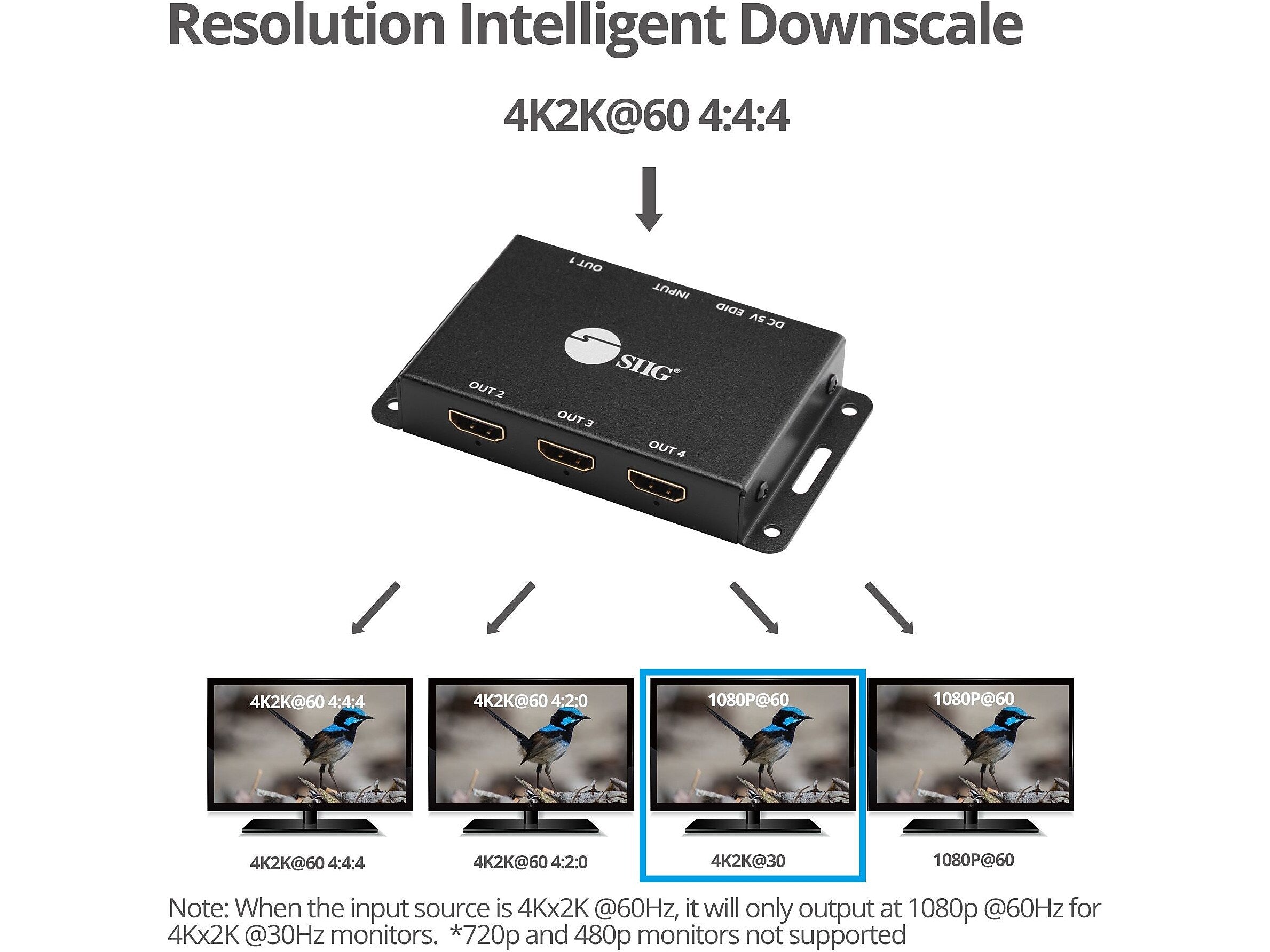

- Downscaling from 4K to 1080p capability
- Provides an 18Gbps video bandwidth (single-link 600MHz) and a wide frequency range of 25-600MHz
- Supports embedded EDID and EDID learning via DIP switches to automatically format to your display
- Cascadable up to 10 layers
- EDID and firmware management allow for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays
- Detects and configures the video resolution automatically according to the capabilities of each connected monitor to support simultaneous 4K and 1080P output
- 10-bit High Dynamic Range (HDR) provides an increased level of contrast between light and dark images to create a more vivid image (HDR source, display, and Premium High Speed HDMI cables are needed to obtain HDR video quality)
- LED indication for power and signal status
- Power consumption: 2.21W

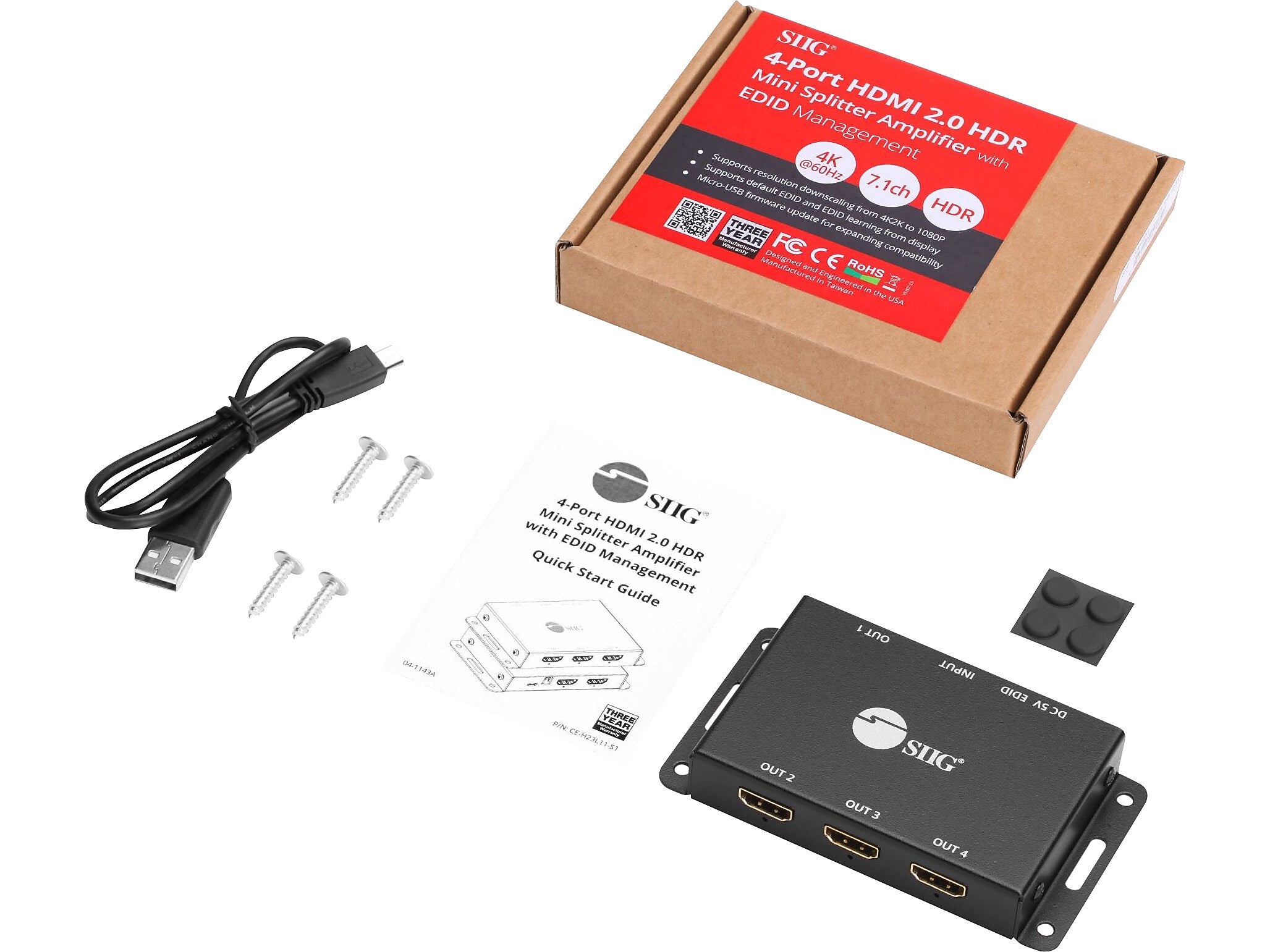

- Box contains: amplifier with EDID management, USB Type-A to Micro-USB cable, quick start guide
- Meets or exceeds the TAA, FCC, CE, and RoHS standards
- 3-year manufacturer limited warranty
| Manufacturer # | CEH23L11S1 |
| Brand Name | SIIG |

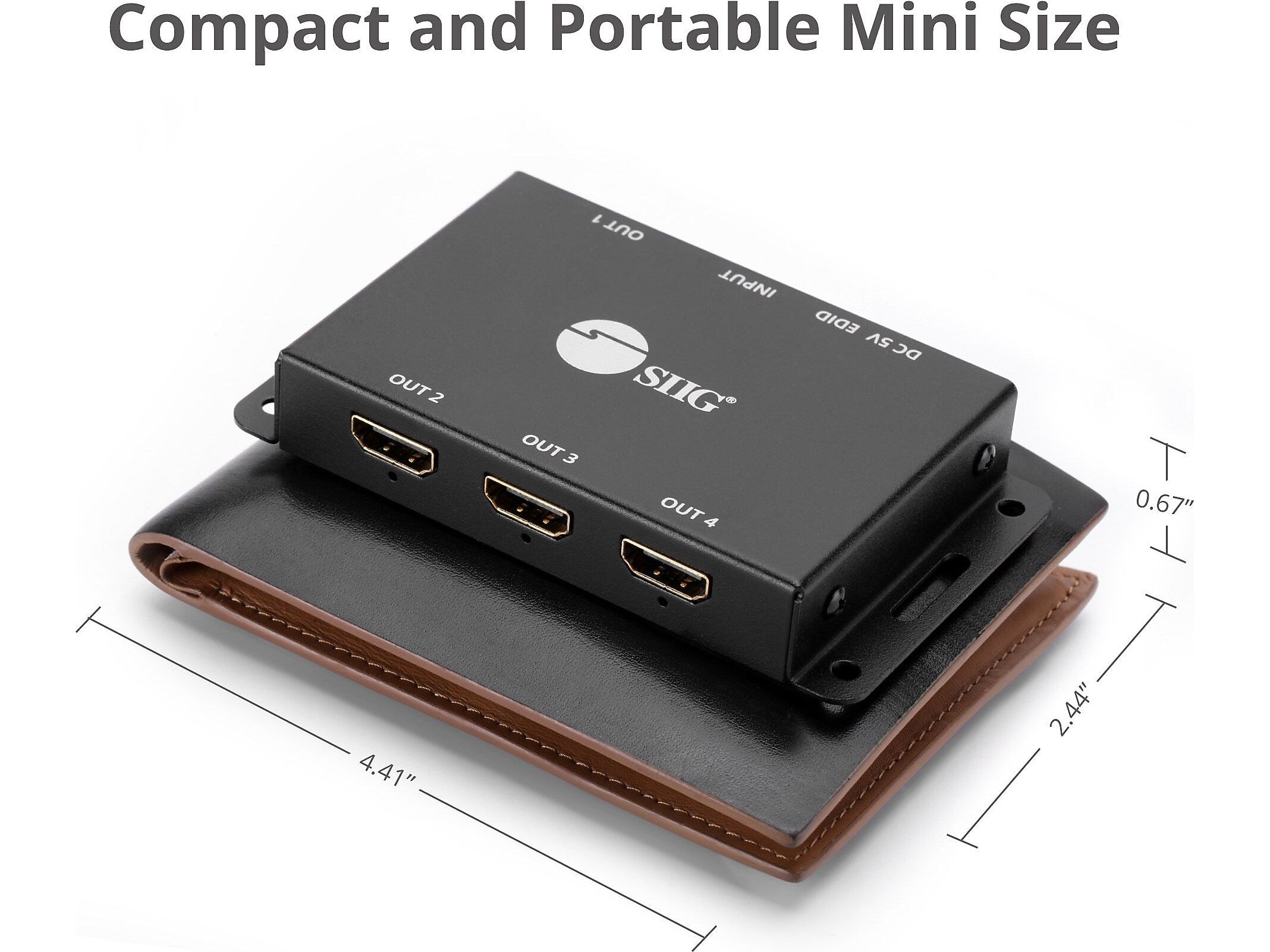

| Depth in Inches | 3.57 |
| Height in Inches | 0.67 |
| Number of Channels | 7.1 |
| Receiver & Amplifier Type | Amplifier |
| True Color | Black |
| Video Output | HDMI |
| Warranty Information | 3 Year |
| Weight (lbs.) | 0.4 |
| Width in Inches | 2.42 |
Details
This SIIG four-port HDMI HDR mini splitter amplifier with EDID management distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality. Allows high-quality HDMI video/audio to be transmitted to four displays without signal degradation. Comes with adjustable EDID management and intelligent auto video scaling provides a cost effective and an advanced HDMI splitter solution.
- This four-port HDMI HDR mini splitter amplifier distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality
- Built-in Micro-USB port for power or firmware updates; contains 1 x HDMI input, 5 x HDMI output, and 1 x EDID management
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Supports 4K and 2K resolutions on 60Hz (YUV 4:4:4 8-bit) and HDR 4K and 2K resolutions on 60Hz (YUV 4:2:0 10-bit) with xvYCC, x.v.Color, and Deep Color
- Works with PS4 Pro/XBox One X/Apple Tv 4K/Fire Tv/Roku/Blu-Ray/Nvidia SHIELD
- Downscaling from 4K to 1080p capability
- Provides an 18Gbps video bandwidth (single-link 600MHz) and a wide frequency range of 25-600MHz
- Supports embedded EDID and EDID learning via DIP switches to automatically format to your display
- Cascadable up to 10 layers
- EDID and firmware management allow for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays
- Detects and configures the video resolution automatically according to the capabilities of each connected monitor to support simultaneous 4K and 1080P output
- 10-bit High Dynamic Range (HDR) provides an increased level of contrast between light and dark images to create a more vivid image (HDR source, display, and Premium High Speed HDMI cables are needed to obtain HDR video quality)
- LED indication for power and signal status
- Power consumption: 2.21W
- Box contains: amplifier with EDID management, USB Type-A to Micro-USB cable, quick start guide
- Meets or exceeds the TAA, FCC, CE, and RoHS standards
- 3-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
