Highlights
View Details- Fits toilets with 1-1/2" top spud coupling connection
- Flush Volume: 3.5 gpf (13.2 Lpf)
- Polished Chrome finish

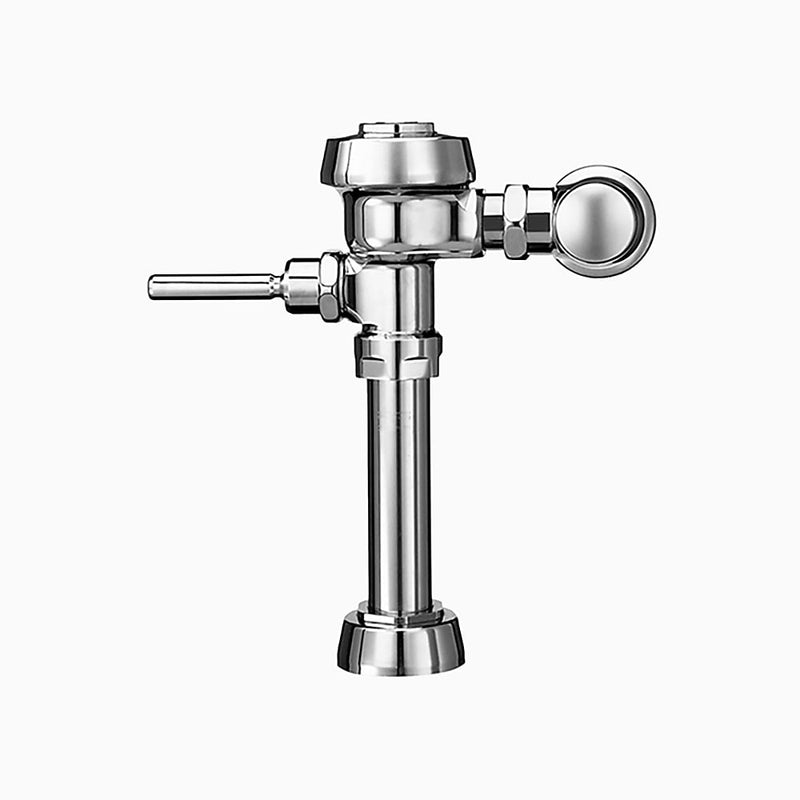

Sloan Royal 110-3.5 Flushometer in Polished Chrome (3010100)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Sloan Royal 110-3.5 is a 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush Flushometer.
- Fits toilets with 1-1/2" top spud coupling connection
- Flush Volume: 3.5 gpf (13.2 Lpf)
- Polished Chrome finish
- (ADA Compliant, BAA Compliant, BABAA Compliant, UPC Certified, Made in the USA
- Valve Body Material: Semi-red Brass
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
- Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
- Valve Operating Pressure (Flowing): 15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
| Manufacturer # | S3010100 |
| Brand Name | Sloan |
| Fixture Type | Toilet |
| Flush Mode | Single |
| Valve Type | Manual |
Details
Sloan Royal 110-3.5 is a 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush Flushometer.
- Fits toilets with 1-1/2" top spud coupling connection
- Flush Volume: 3.5 gpf (13.2 Lpf)
- Polished Chrome finish
- (ADA Compliant, BAA Compliant, BABAA Compliant, UPC Certified, Made in the USA
- Valve Body Material: Semi-red Brass
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
- Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
- Valve Operating Pressure (Flowing): 15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
| Attribute Name | Attribute Value |
|---|
