Highlights
View Details- Network adapter interface: RJ45, 1 x AC power plug
- Network adapter speed: 1000 Mbps
- Compatible networks: 10/100/1000 Mbps

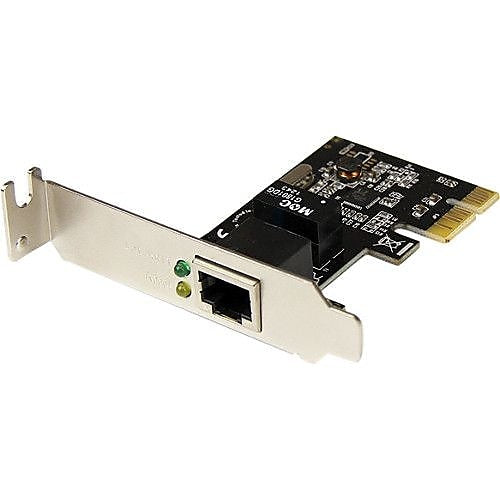

StarTech 1-Port PCIe Gigabit NIC Low Profile Server Adapter Network Card (ST1000SPEX2L)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Startech Gigabit Ethernet card includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor. Card adds a 10/100/1000 Mbps which is compatible with RJ45 Ethernet port.
- Network adapter interface: RJ45, 1 x AC power plug
- Network adapter speed: 1000 Mbps
- Compatible networks: 10/100/1000 Mbps
- Card type: Low profile, Chipset ID: Realtek RTL8111E, Auto MDIX, full duplex support, Supported protocols: CSMA/CD
- Connector type: 1 x PCI Express x1, Bus type: PCI Express, External ports: 1 x RJ-45
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
- LED indicators: 1 x Gigabit Detect (Yellow), 1 x Link/Activity (Green)
- Versatile Gigabit NIC/Server Adapter offers effective network performance
- Environmental: Humidity 10% approx. 90% RH, Operating temperature: 0 to 70 deg C (32 to 158 deg F), Storage temperature: 0 to 100 deg C (32 to 212 deg F)
- System and cable requirements: Available PCI Express expansion card slot
- OS Compatibility: Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows® Server 2008 R2, 2003(32/64), Mac OS X (Intel based, tested up to 10.8), Linux, Physical Characteristics
- Includes 1 x Gigabit Ethernet PCI Express Card, 1 x Standard Profile Bracket, 1 x Driver CD, 1 x Instruction Manual
- Platform supported: PC
- Warranty: 2 years limited
| Manufacturer # | TE0507 |
| Brand Name | StarTech |
| Data Transfer Rate (gbps) | 1 |
| Data Transfer Rate (mbps) | 1000 |
| Gigabit | Yes |
| Height in Inches | 1.9 |
| Included Components | 1 x Gigabit Ethernet PCI Express Card, 1 x Standard Profile Bracket, 1 x Driver CD, 1 x Instruction Manual |
| Led Indicators | 1 x Gigabit Detect (Yellow), 1 x Link/Activity (Green) |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Adapter Interface | PCIe |
| Security Protocols | CSMA/CD |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Wake on Lan | Yes |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.06 |
| Width in Inches | 0.7 |
Details
Startech Gigabit Ethernet card includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor. Card adds a 10/100/1000 Mbps which is compatible with RJ45 Ethernet port.
- Network adapter interface: RJ45, 1 x AC power plug
- Network adapter speed: 1000 Mbps
- Compatible networks: 10/100/1000 Mbps
- Card type: Low profile, Chipset ID: Realtek RTL8111E, Auto MDIX, full duplex support, Supported protocols: CSMA/CD
- Connector type: 1 x PCI Express x1, Bus type: PCI Express, External ports: 1 x RJ-45
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
- LED indicators: 1 x Gigabit Detect (Yellow), 1 x Link/Activity (Green)
- Versatile Gigabit NIC/Server Adapter offers effective network performance
- Environmental: Humidity 10% approx. 90% RH, Operating temperature: 0 to 70 deg C (32 to 158 deg F), Storage temperature: 0 to 100 deg C (32 to 212 deg F)
- System and cable requirements: Available PCI Express expansion card slot
- OS Compatibility: Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows® Server 2008 R2, 2003(32/64), Mac OS X (Intel based, tested up to 10.8), Linux, Physical Characteristics
- Includes 1 x Gigabit Ethernet PCI Express Card, 1 x Standard Profile Bracket, 1 x Driver CD, 1 x Instruction Manual
- Platform supported: PC
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
