Highlights
View Details- Enhance the performance capabilities of SWDM applications with this OM5 fiber cable
- Cable length: 49.2'
- LC/LC-UPC ends for improved return loss over PC polish

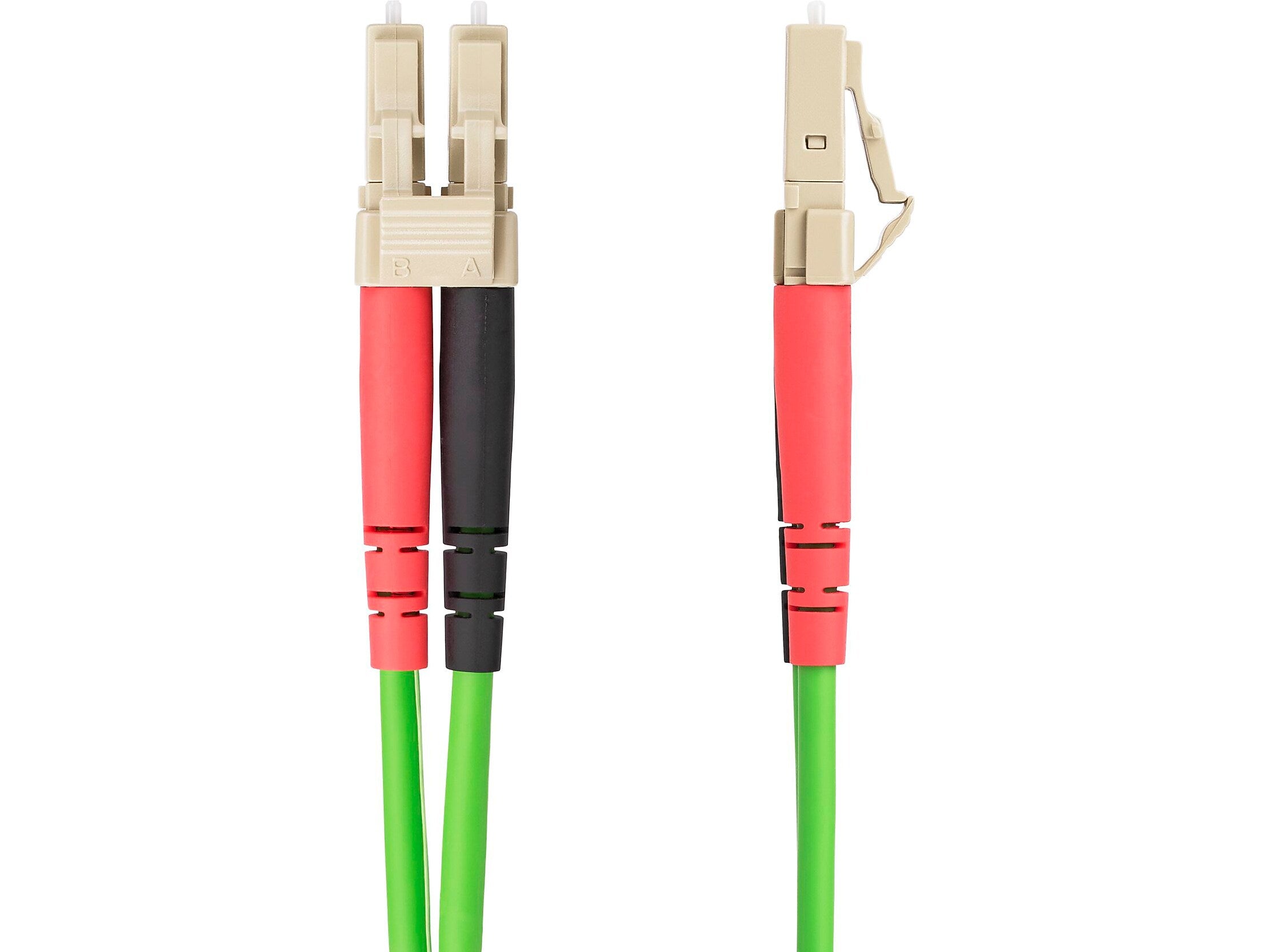

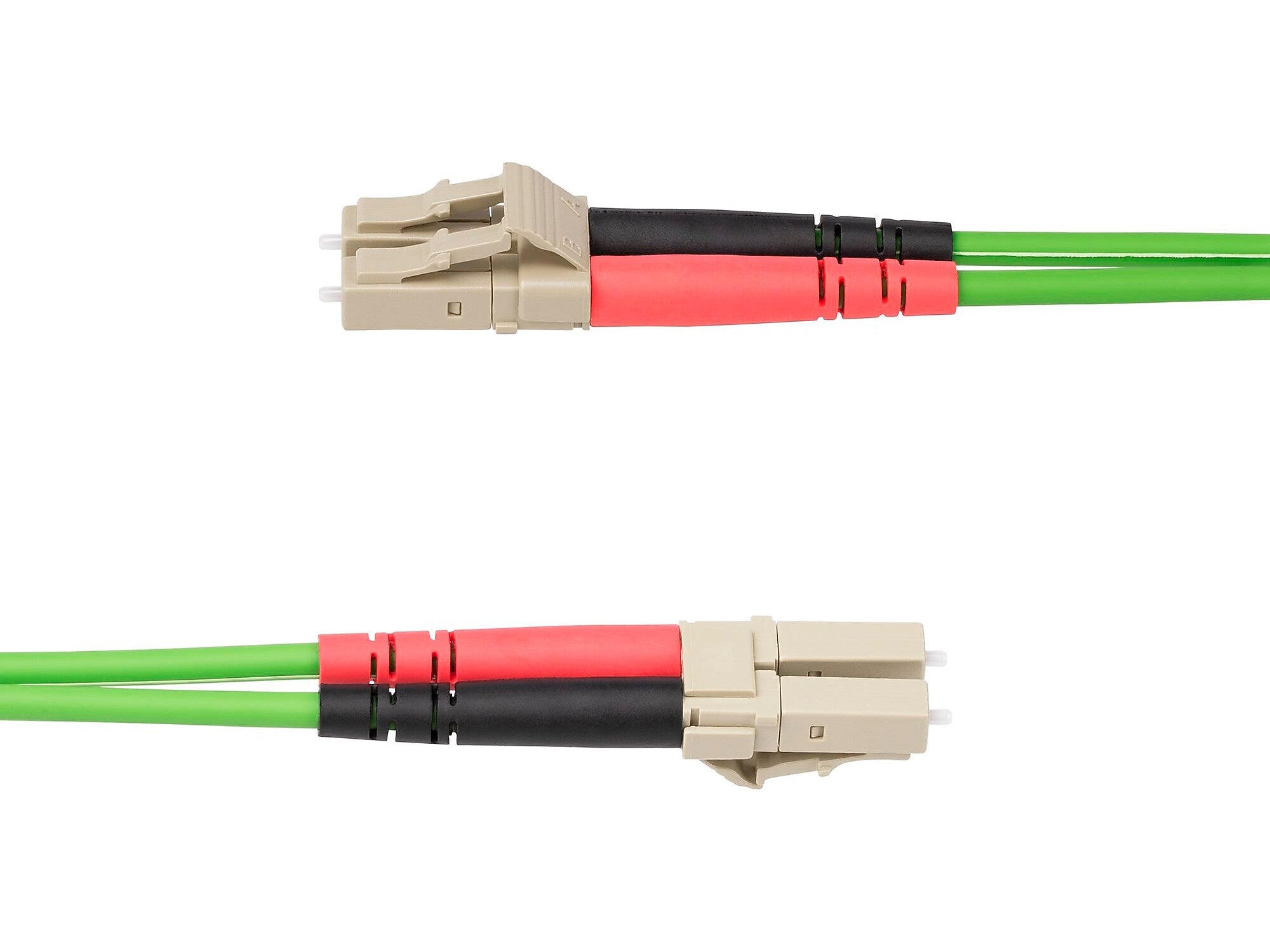

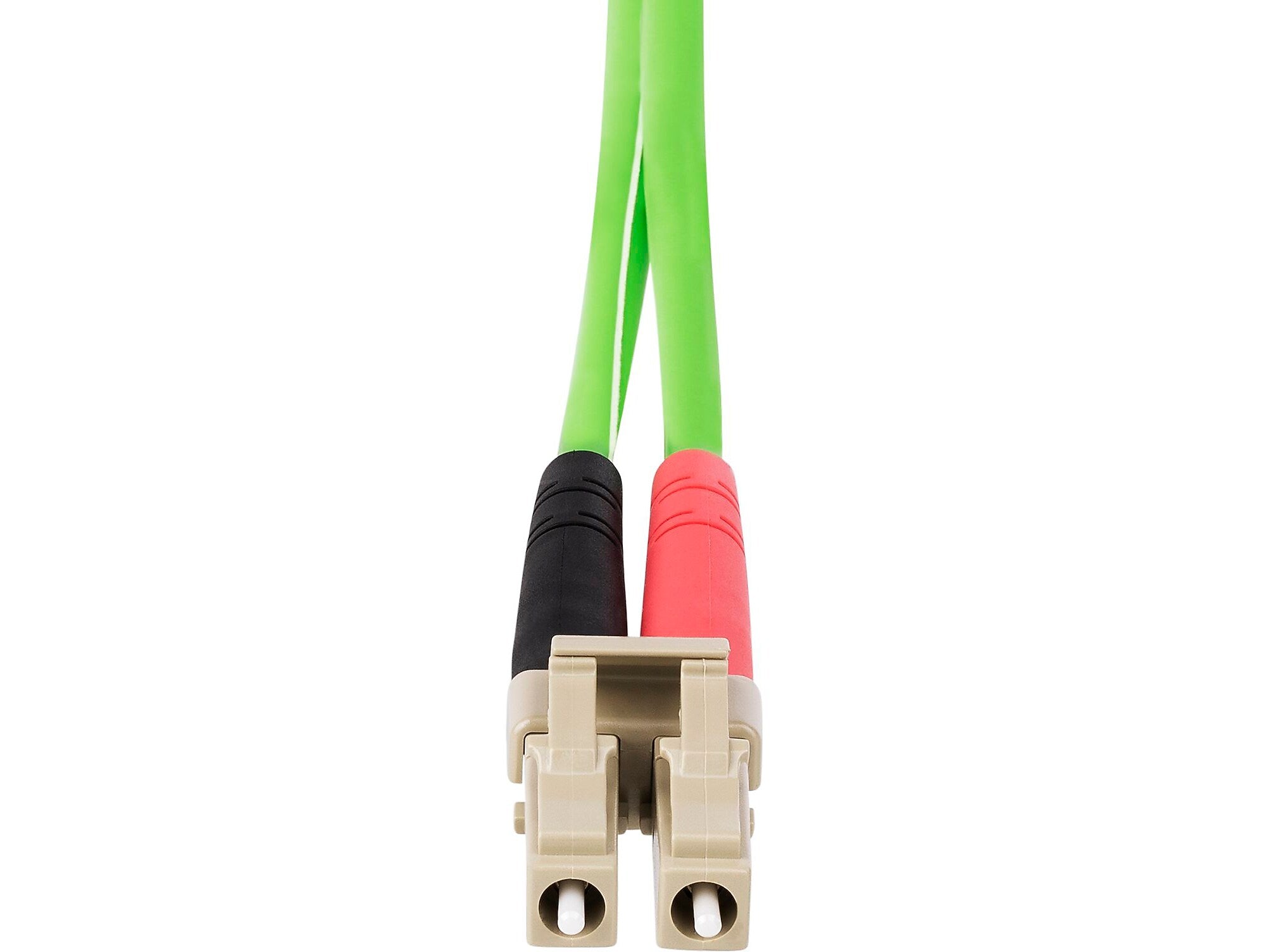

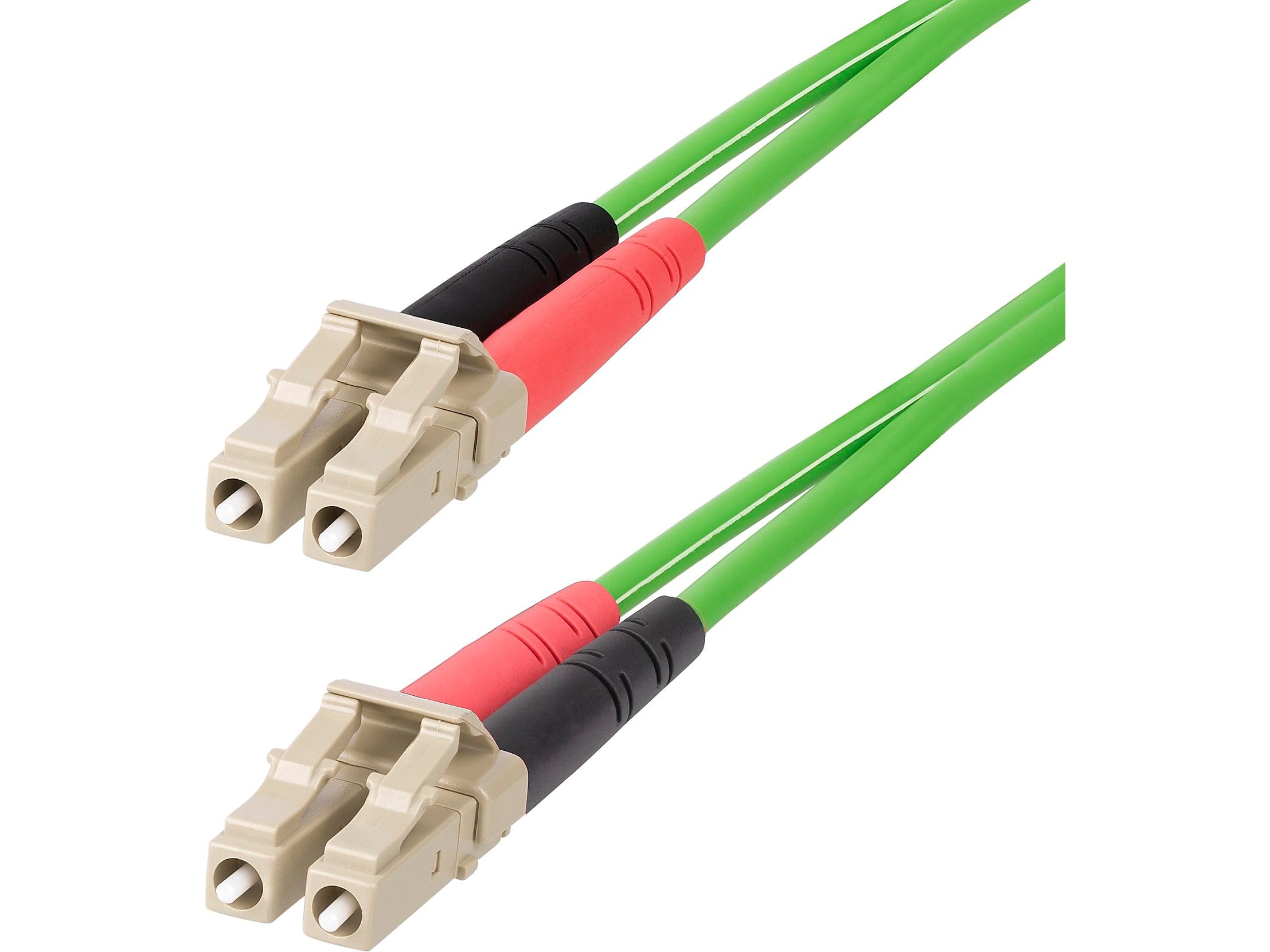

StarTech 15m (49.2ft) LC to LC (UPC) Duplex OM5 Multimode Fiber Optic Patch Cable, 50/125, Green (LCLCL-15M-OM5-FIBER)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
OM5 LC to LC multimode duplex fiber optic patch cable by StarTech facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is perfect for 850-953nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
- Enhance the performance capabilities of SWDM applications with this OM5 fiber cable
- Cable length: 49.2'
- LC/LC-UPC ends for improved return loss over PC polish
- Bend insensitive fiber core housed in Aramid-reinforced green jacket for a loaded bend radius of 6cm and 3cm when unloaded
- Multimode OM5 fiber cable supports 10/40/100G networks and backward compatible with OM4/OM3
- Perfect for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules
- LSZH jacket emits low toxic fumes if combusted and safe for enclosed/poorly ventilated spaces
- Attenuation value under 2.4dB/km outperforms industry standards
- High micro-bend resistance facilitates tight bends in complex installations
- Short Wavelength Division Multiplexing (SWDM) enables extended 850-953nm wavelength support for greater channel isolation, enhancing performance capacity beyond OM4 cables
- Zipcord design, color-coded connectors for polarity
- Lifetime manufacturer limited warranty
| Manufacturer # | LCLCL15MOM5FIBER |
| Brand Name | StarTech |
| Data Transfer Rate (gbps) | 100 |
| Fiber Cable Type | Plastic Optical Fiber (POF) |
| Fiber Connector Type | LC |
| Gigabit | Yes |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Green |
Details
OM5 LC to LC multimode duplex fiber optic patch cable by StarTech facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is perfect for 850-953nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
- Enhance the performance capabilities of SWDM applications with this OM5 fiber cable
- Cable length: 49.2'
- LC/LC-UPC ends for improved return loss over PC polish
- Bend insensitive fiber core housed in Aramid-reinforced green jacket for a loaded bend radius of 6cm and 3cm when unloaded
- Multimode OM5 fiber cable supports 10/40/100G networks and backward compatible with OM4/OM3
- Perfect for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules
- LSZH jacket emits low toxic fumes if combusted and safe for enclosed/poorly ventilated spaces
- Attenuation value under 2.4dB/km outperforms industry standards
- High micro-bend resistance facilitates tight bends in complex installations
- Short Wavelength Division Multiplexing (SWDM) enables extended 850-953nm wavelength support for greater channel isolation, enhancing performance capacity beyond OM4 cables
- Zipcord design, color-coded connectors for polarity
- Lifetime manufacturer limited warranty
