Highlights
View Details- Dimensions: 4.7"(H) x 0.7"(W) x 3.6"(L)
- Chipset ID: Realtek - RTL8111E, Asmedia - ASM1182E
- Host interface: PCI-Express x1, Network technology: 10/100/1000Base-T- Gigabit Ethernet, Maximum data transfer rate: 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)

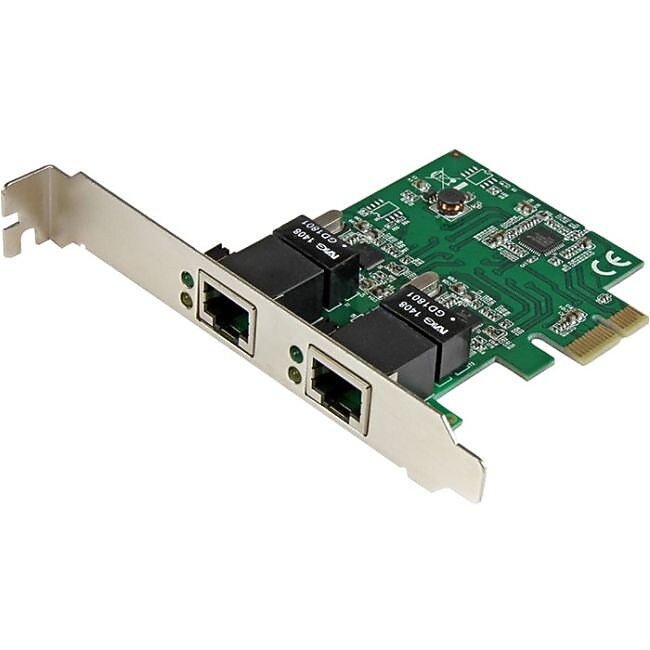

StarTech 2-Port PCIe Gigabit Ethernet Adapter (ST1000SPEXD4)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
StarTech.com® Server network adapter card features two RJ-45 female Ethernet ports and offers full duplex support. Card offers a data transfer rate of 2000 Mbps for full-duplex transmission and 1000 Mbps for half-duplex transmission.
- Dimensions: 4.7"(H) x 0.7"(W) x 3.6"(L)
- Chipset ID: Realtek - RTL8111E, Asmedia - ASM1182E
- Host interface: PCI-Express x1, Network technology: 10/100/1000Base-T- Gigabit Ethernet, Maximum data transfer rate: 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
- Interface/ports: 2 x RJ-45 network, Connector type: 1x PCI-Express x1 male
- Form factor: Plug-in card
- Device supported: Server
- Performance: Auto MDIX, full-duplex support, Jumbo frame support: 9K max
- Supported protocols: IEEE 802.1Q VLAN tagging, IEEE 802.1P layer 2 priority encoding and IEEE 802.3x full-duplex flow control
- Card type: Standard Profile (LP bracket included), Port style: Integrated on card, Industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, PCI express base specification 2.0
- Optional low-profile/half-height bracket that can be used for installation into a standard or small form-factor computer chassis
- Indicators: LED: 2 - Green - Link/Activity, 2 - Yellow - Gigabit Mode
- Software: OS Compatibility: Windows® 8.1 / 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows® Server 2012, 2008 R2, 2003(32/64), Mac OS 10.4 and up, Linux 2.4.x and up
- System and cable requirements: Available PCI-Express slot
- Environmental: Temperature: Operating: 0 deg C to 70 deg C (32 deg F to 158 deg F), Storage: 0 deg C to 100 deg C (32 deg F to 212 deg F), Humidity: 10 approx. 90% RH
- Includes 1 x PCIe network card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual
- Weight: 1.8 oz.
- Warranty: 2 years limited
| Manufacturer # | ST1000SPEXD4 |
| # of Ports | 2 |
| Brand Name | StarTech |
| Data Transfer Rate (gbps) | 2 |
| Data Transfer Rate (mbps) | 2000 |
| Depth in Inches | 3.6 |
| Gigabit | Yes |
| Height in Inches | 4.7 |
| Included Components | 1 x PCIe network card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual |
| Led Indicators | 2 - Green - Link/Activity, 2 - Yellow - Gigabit Mode |
| Network Adapter Interface | PCIe |
| Network Adapter Type | Ethernet |
| Security Protocols | IEEE 802.1Q VLAN tagging, IEEE 802.1P layer 2 priority encoding and IEEE 802.3x full-duplex flow control |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.11 |
| Width in Inches | 0.7 |
Details
StarTech.com® Server network adapter card features two RJ-45 female Ethernet ports and offers full duplex support. Card offers a data transfer rate of 2000 Mbps for full-duplex transmission and 1000 Mbps for half-duplex transmission.
- Dimensions: 4.7"(H) x 0.7"(W) x 3.6"(L)
- Chipset ID: Realtek - RTL8111E, Asmedia - ASM1182E
- Host interface: PCI-Express x1, Network technology: 10/100/1000Base-T- Gigabit Ethernet, Maximum data transfer rate: 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
- Interface/ports: 2 x RJ-45 network, Connector type: 1x PCI-Express x1 male
- Form factor: Plug-in card
- Device supported: Server
- Performance: Auto MDIX, full-duplex support, Jumbo frame support: 9K max
- Supported protocols: IEEE 802.1Q VLAN tagging, IEEE 802.1P layer 2 priority encoding and IEEE 802.3x full-duplex flow control
- Card type: Standard Profile (LP bracket included), Port style: Integrated on card, Industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, PCI express base specification 2.0
- Optional low-profile/half-height bracket that can be used for installation into a standard or small form-factor computer chassis
- Indicators: LED: 2 - Green - Link/Activity, 2 - Yellow - Gigabit Mode
- Software: OS Compatibility: Windows® 8.1 / 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows® Server 2012, 2008 R2, 2003(32/64), Mac OS 10.4 and up, Linux 2.4.x and up
- System and cable requirements: Available PCI-Express slot
- Environmental: Temperature: Operating: 0 deg C to 70 deg C (32 deg F to 158 deg F), Storage: 0 deg C to 100 deg C (32 deg F to 212 deg F), Humidity: 10 approx. 90% RH
- Includes 1 x PCIe network card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual
- Weight: 1.8 oz.
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
