Highlights
View Details- PCI express x4
- Dimensions: 2.2"(H) x 0.6"(W) x 6.6"(L), cable length: 9.8'
- Form factor: Plug-in card

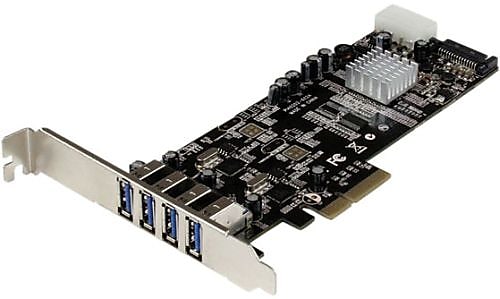

StarTech 4 Port Dual Bus PCI Express SuperSpeed USB 3.0 Card Adapter
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This card adapter features a maximum data transfer rate of 5Gbps/2 ports.
- PCI express x4
- Dimensions: 2.2"(H) x 0.6"(W) x 6.6"(L), cable length: 9.8'
- Form factor: Plug-in card
- Chipset ID: 2 x Renesas/NEC - Micro PD720202, Port style: Integrated on card, No. of ports: 4
- Connector type: 1 x PCI express x 4 male, External ports: 4 x USB 3.0 A (9-pin, superspeed) female, Internal ports: 1 x LP4 (4-pin, molex large drive power) female, 1 x SATA power (15-pin) plug
- OS compatibility: Windows® 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Windows® server 2012, 2008 R2, 2003 (32/64), Linux Kernel 2.6.31 or later
- System requirements: Available PCI express x4 or greater slot
- Operating temperature: 0 - 50 deg C, Storage temperature: -20 - 60 deg C, humidity: 5 - 85% RH
- Optional LP4 or SATA power connector provides up to 900 mA per USB port
- Backward-compatible with USB 2.0 and USB 1.0/1.1 devices
- Hot-swap feature to connect/disconnect devices without powering down the system
- UASP support across all four ports
- Supports USB battery charging specification 1.2 (Apple mode only)
- Includes 1 x 4 port PCIe USB card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual
- Certifications & standards: WEEE, RoHS, Green Compliant
- Weight: 3.2 oz.
- Warranty: 2 years limited
| Manufacturer # | UN4211 |
| Brand Name | StarTech |
| Card Type | PCI to Parallel |
| Component Form Factor | External |
| Data Transfer Rate (gbps) | 5 |
| Depth in Inches | 6.6 |
| Gaming | Non Gaming |
| Height in Inches | 2.2 |
| Host Interface | PCI Express |
| Warranty Information | 2 Year |
| Weight (ounces) | 3.2 |
| Width in Inches | 0.6 |
Details
This card adapter features a maximum data transfer rate of 5Gbps/2 ports.
- PCI express x4
- Dimensions: 2.2"(H) x 0.6"(W) x 6.6"(L), cable length: 9.8'
- Form factor: Plug-in card
- Chipset ID: 2 x Renesas/NEC - Micro PD720202, Port style: Integrated on card, No. of ports: 4
- Connector type: 1 x PCI express x 4 male, External ports: 4 x USB 3.0 A (9-pin, superspeed) female, Internal ports: 1 x LP4 (4-pin, molex large drive power) female, 1 x SATA power (15-pin) plug
- OS compatibility: Windows® 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Windows® server 2012, 2008 R2, 2003 (32/64), Linux Kernel 2.6.31 or later
- System requirements: Available PCI express x4 or greater slot
- Operating temperature: 0 - 50 deg C, Storage temperature: -20 - 60 deg C, humidity: 5 - 85% RH
- Optional LP4 or SATA power connector provides up to 900 mA per USB port
- Backward-compatible with USB 2.0 and USB 1.0/1.1 devices
- Hot-swap feature to connect/disconnect devices without powering down the system
- UASP support across all four ports
- Supports USB battery charging specification 1.2 (Apple mode only)
- Includes 1 x 4 port PCIe USB card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual
- Certifications & standards: WEEE, RoHS, Green Compliant
- Weight: 3.2 oz.
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
