Highlights
View Details- Hard drive accessory type: IDE to SATA adapter converter
- Red
- Dimensions: 0.9"(H) x 0.8"(W)

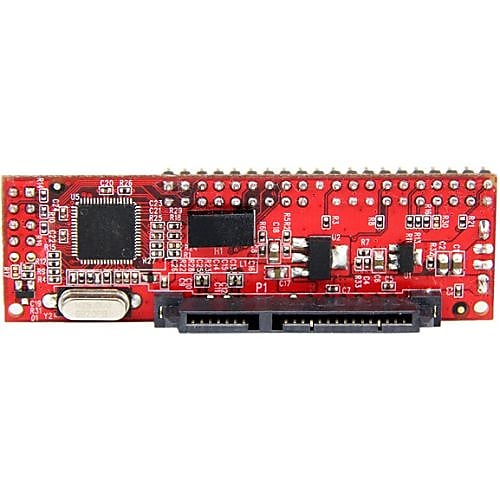

StarTech 40-Pin IDE PATA to SATA Adapter Converter For HDD/SSD/ODD
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Startech.com® 40-Pin IDE PATA to SATA adapter converter provides ODD support which allows you to add Blu-ray, DVD or CD-ROM drives to an older IDE motherboard. Converter provides support for 48-bit logical block addressing.
- Hard drive accessory type: IDE to SATA adapter converter
- Red
- Dimensions: 0.9"(H) x 0.8"(W)
- Chipset ID: Marvell 88SA8852
- Connector type: 1 x IDE (40 Pin, EIDE/PATA), 1 x SATA data and power combo (7+15 pin), 1 x SP4 (4 pin small drive power)
- Maximum data transfer rate: 133 Mbps
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle free installation, with no software CD required
- Support for 48-bit logical block addressing
- Compliant with SATA revision 1.0 specification, compatible with Ultra ATA 133 specification
- Supports 2 1/2", 3 1/2", and 5 1/4" SATA drives
- Internal solution for connecting your SATA hard drive to a motherboard supporting an IDE interface
- Ideal for use with older motherboards that do not support SATA
- Compatibility: Blu-ray drive, DVD drive, CD-ROM drive
- Environmental info: 5 - 50 Deg C operating temperature, 15 - 90% relative humidity
- System requirements: An IDE controller and ATA cable
- Certifications and standards: FCC, RoHS
- Includes 40-pin IDE PATA to SATA adapter converter for HDD/SSD/ODD, 1 x LP4 Molex to SP4 power cable, 1 x instruction manual
- Warranty: 2 years limited
| Manufacturer # | RZ3115 |
| Brand Name | StarTech |
| Drive Type | SSD & HDD |
| Hard Drive Accessory Type | Hard Drive Adapters |
| Hard Drive Kit | No |
| Height in Inches | 0.9 |
| Length in Inches | 3 |
| True Color | Red |
| Warranty Information | 2 Year |
| Weight (ounces) | 0.5 |
| Width in Inches | 0.8 |
Details
Startech.com® 40-Pin IDE PATA to SATA adapter converter provides ODD support which allows you to add Blu-ray, DVD or CD-ROM drives to an older IDE motherboard. Converter provides support for 48-bit logical block addressing.
- Hard drive accessory type: IDE to SATA adapter converter
- Red
- Dimensions: 0.9"(H) x 0.8"(W)
- Chipset ID: Marvell 88SA8852
- Connector type: 1 x IDE (40 Pin, EIDE/PATA), 1 x SATA data and power combo (7+15 pin), 1 x SP4 (4 pin small drive power)
- Maximum data transfer rate: 133 Mbps
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle free installation, with no software CD required
- Support for 48-bit logical block addressing
- Compliant with SATA revision 1.0 specification, compatible with Ultra ATA 133 specification
- Supports 2 1/2", 3 1/2", and 5 1/4" SATA drives
- Internal solution for connecting your SATA hard drive to a motherboard supporting an IDE interface
- Ideal for use with older motherboards that do not support SATA
- Compatibility: Blu-ray drive, DVD drive, CD-ROM drive
- Environmental info: 5 - 50 Deg C operating temperature, 15 - 90% relative humidity
- System requirements: An IDE controller and ATA cable
- Certifications and standards: FCC, RoHS
- Includes 40-pin IDE PATA to SATA adapter converter for HDD/SSD/ODD, 1 x LP4 Molex to SP4 power cable, 1 x instruction manual
- Warranty: 2 years limited
