Highlights
View Details- Wi-Fi 6E PCIe Network Card with Bluetooth 5.3 enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)
- Tri-Band 802.11ax PCIe 3.0 Wi-Fi card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands
- OS compatibility: Windows 10, 11, Linux 5.11 and up (LTS versions only)

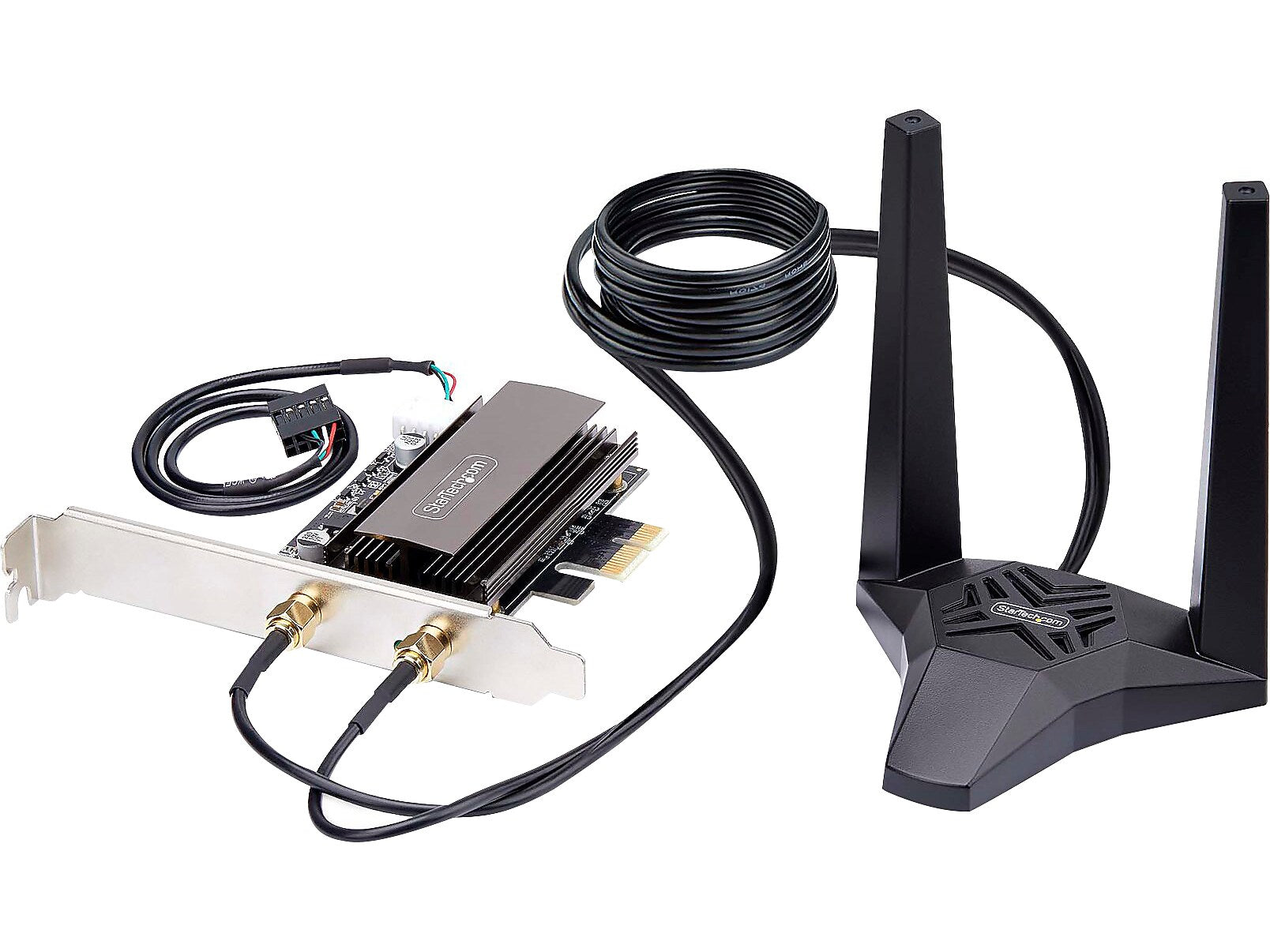

StarTech AX2400 Tri Band PCIe Wireless Adapter (PAX2235-WIFI-6E-CARD)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This Wi-Fi 6E network card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.
- Wi-Fi 6E PCIe Network Card with Bluetooth 5.3 enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)
- Tri-Band 802.11ax PCIe 3.0 Wi-Fi card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands
- OS compatibility: Windows 10, 11, Linux 5.11 and up (LTS versions only)
- OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency
- Meets or exceeds the FCC, and WEEE standards

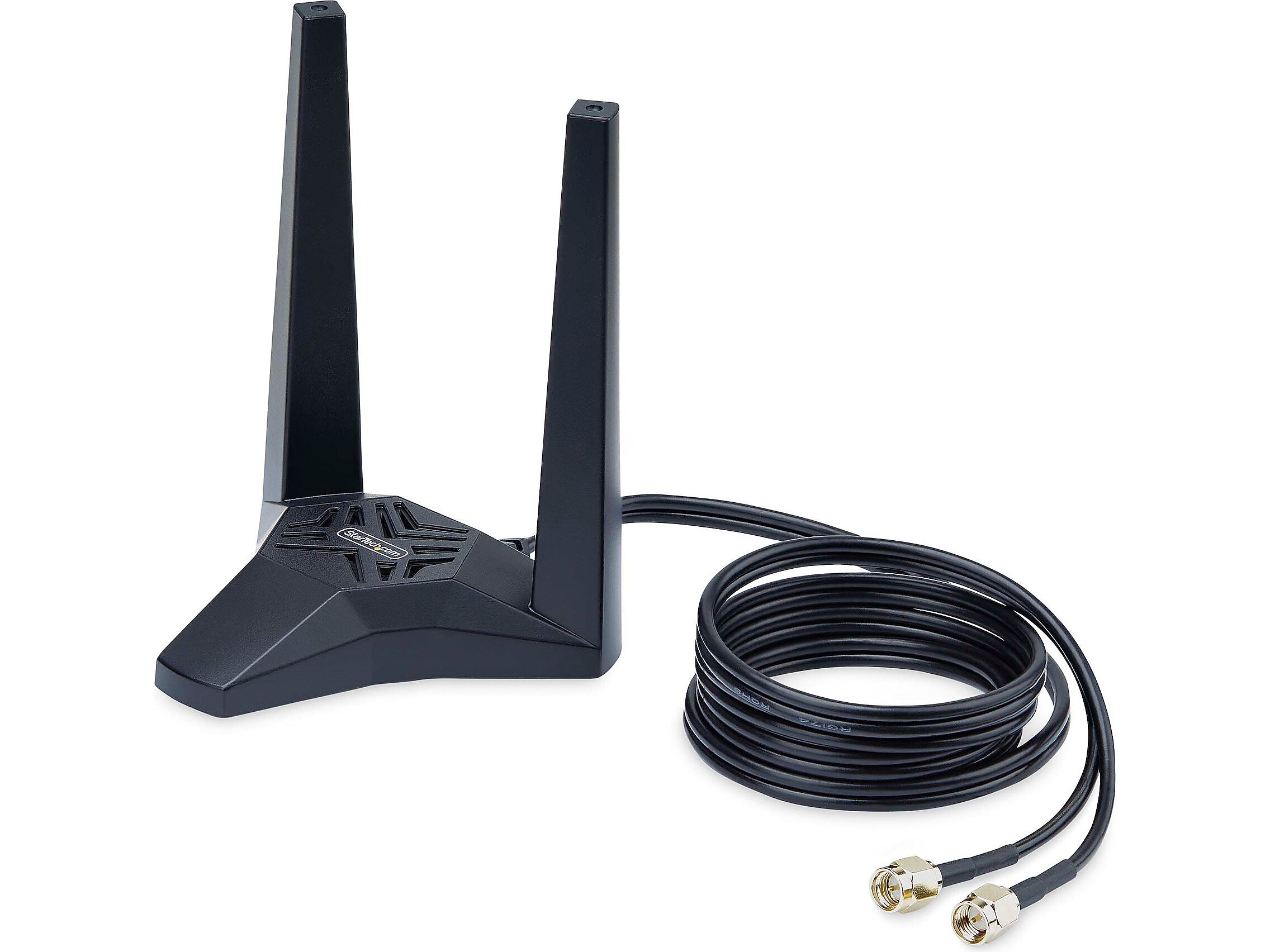

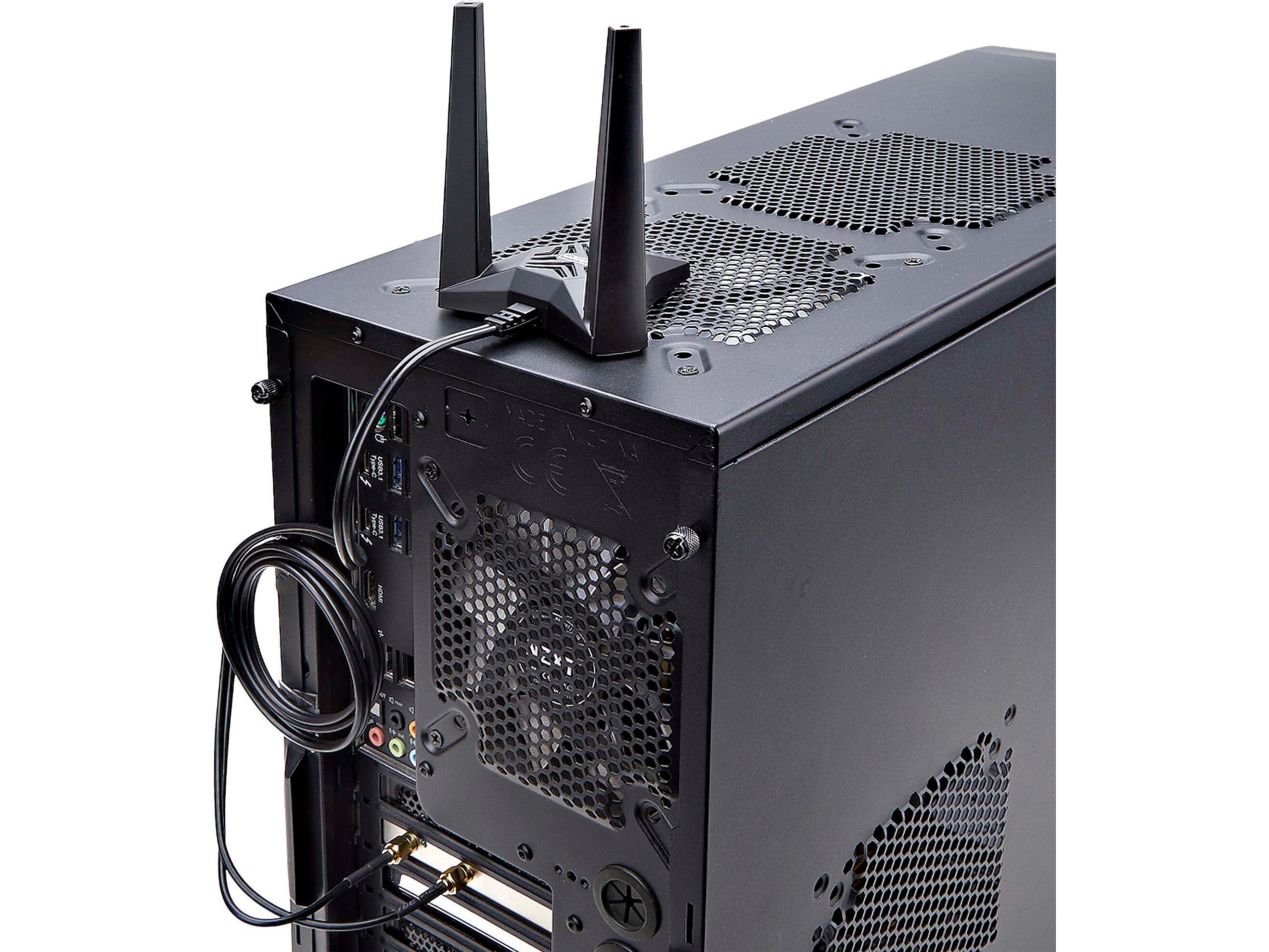

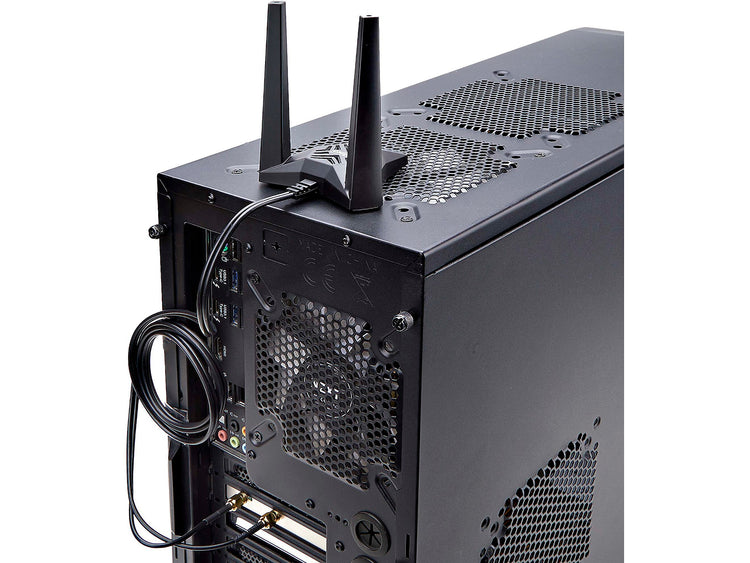

- The antenna base is magnetized and equipped with a 3.6' attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference
- Base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces

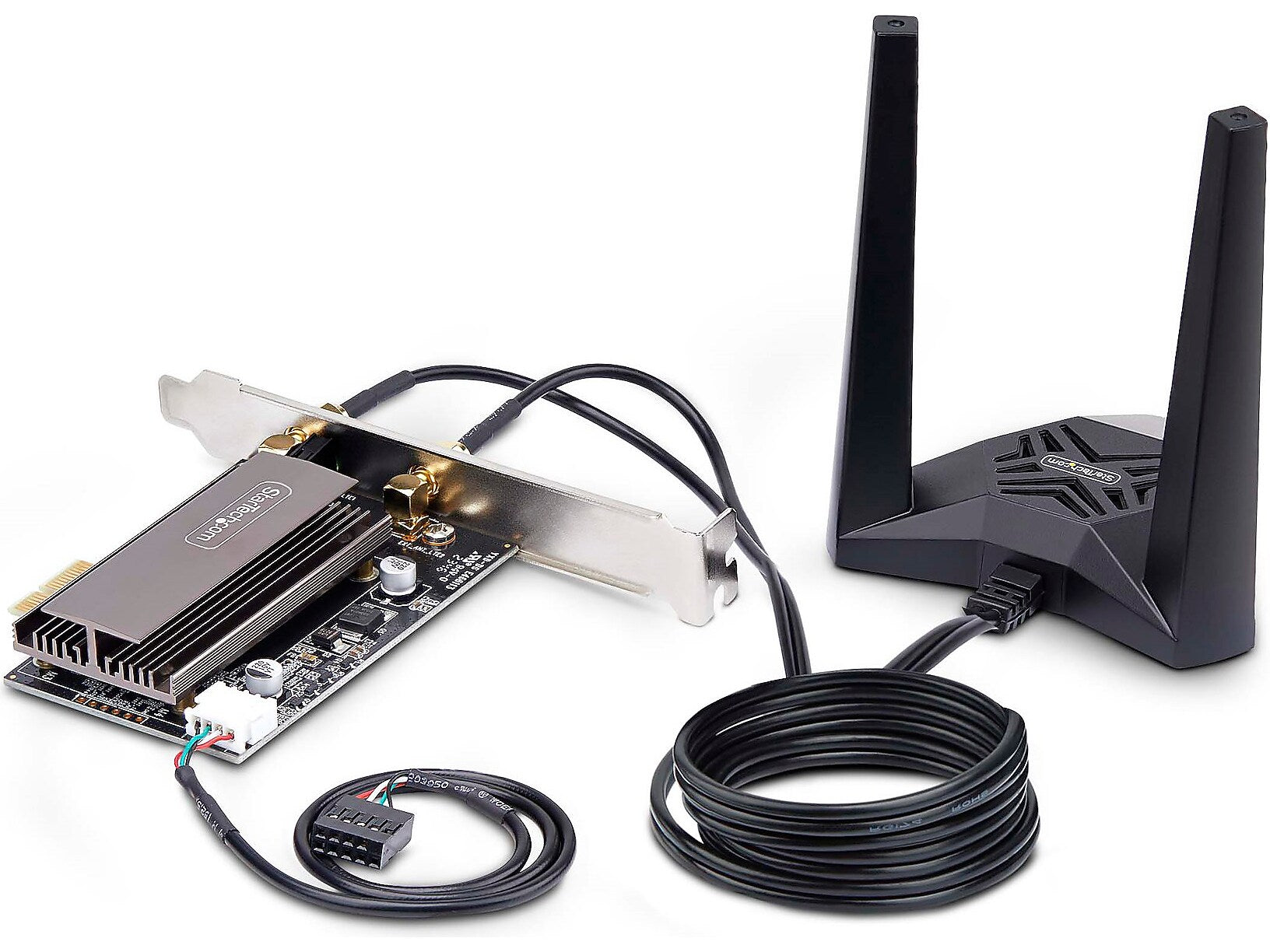

- This card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption; to enable Bluetooth functionality, connect the four-pin IDC to nine-pin USB header (Bluetooth cable included) to an available nine-pin USB header, located on the motherboard of the host computer
- WPA3 offers secure encryption for Wi-Fi password safety

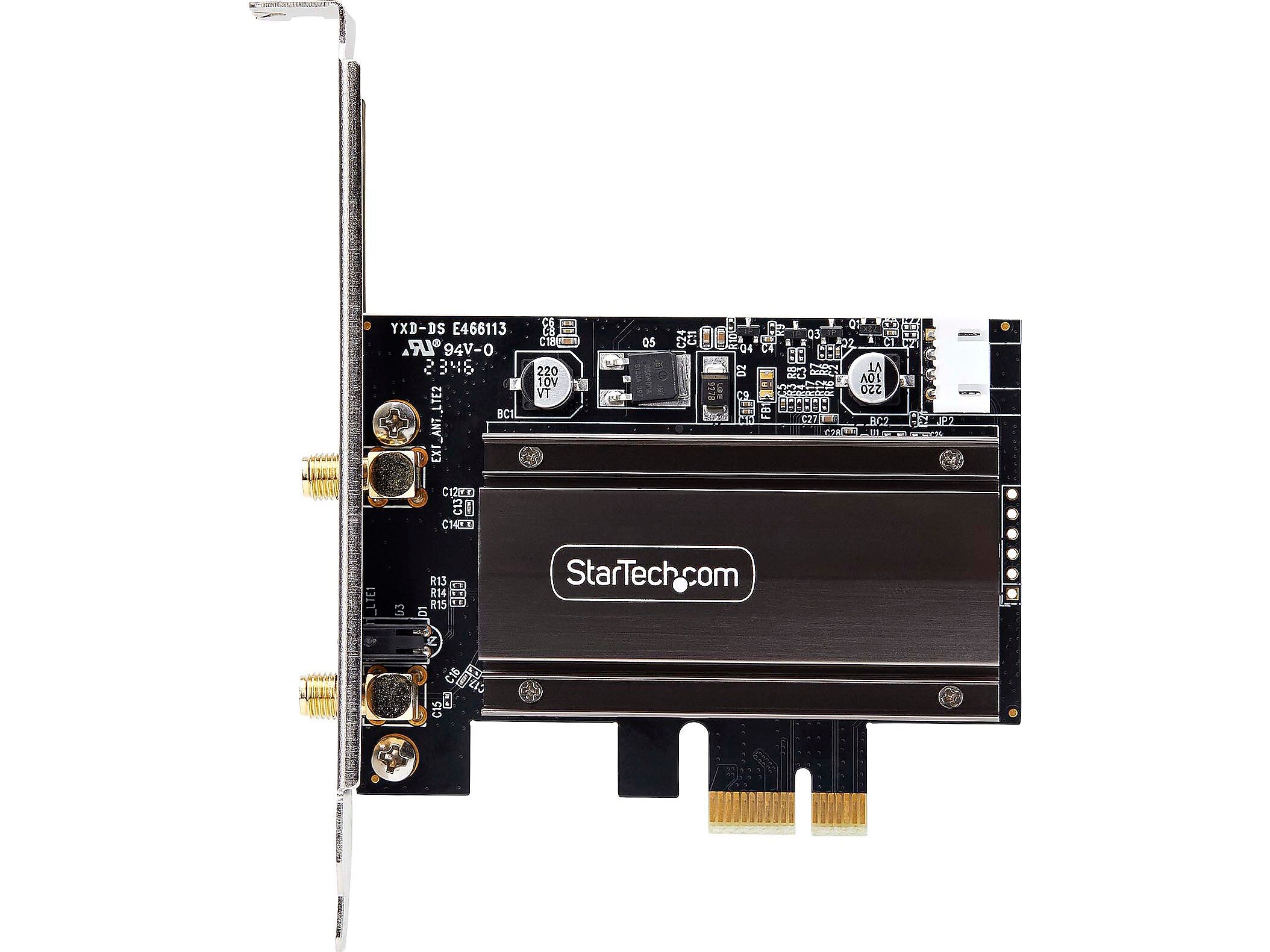

- The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance

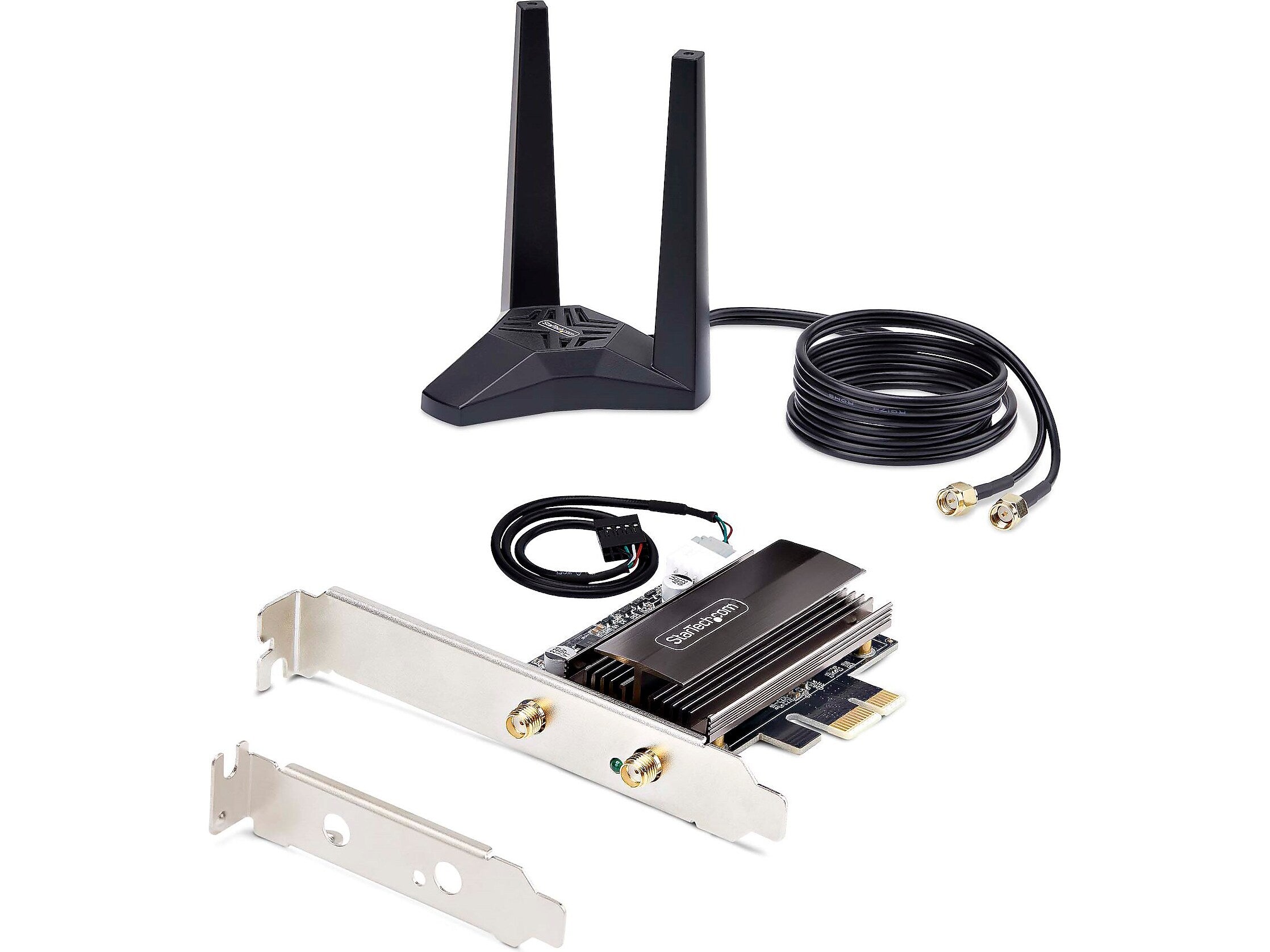

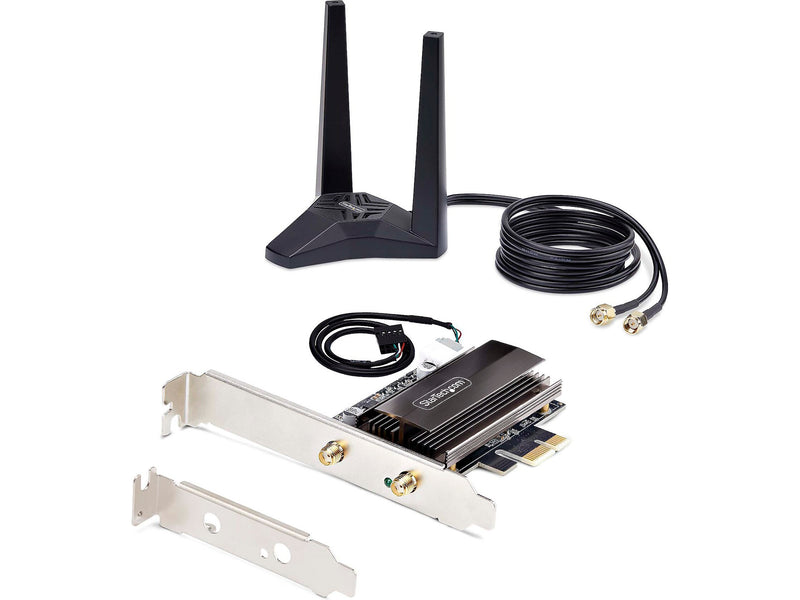

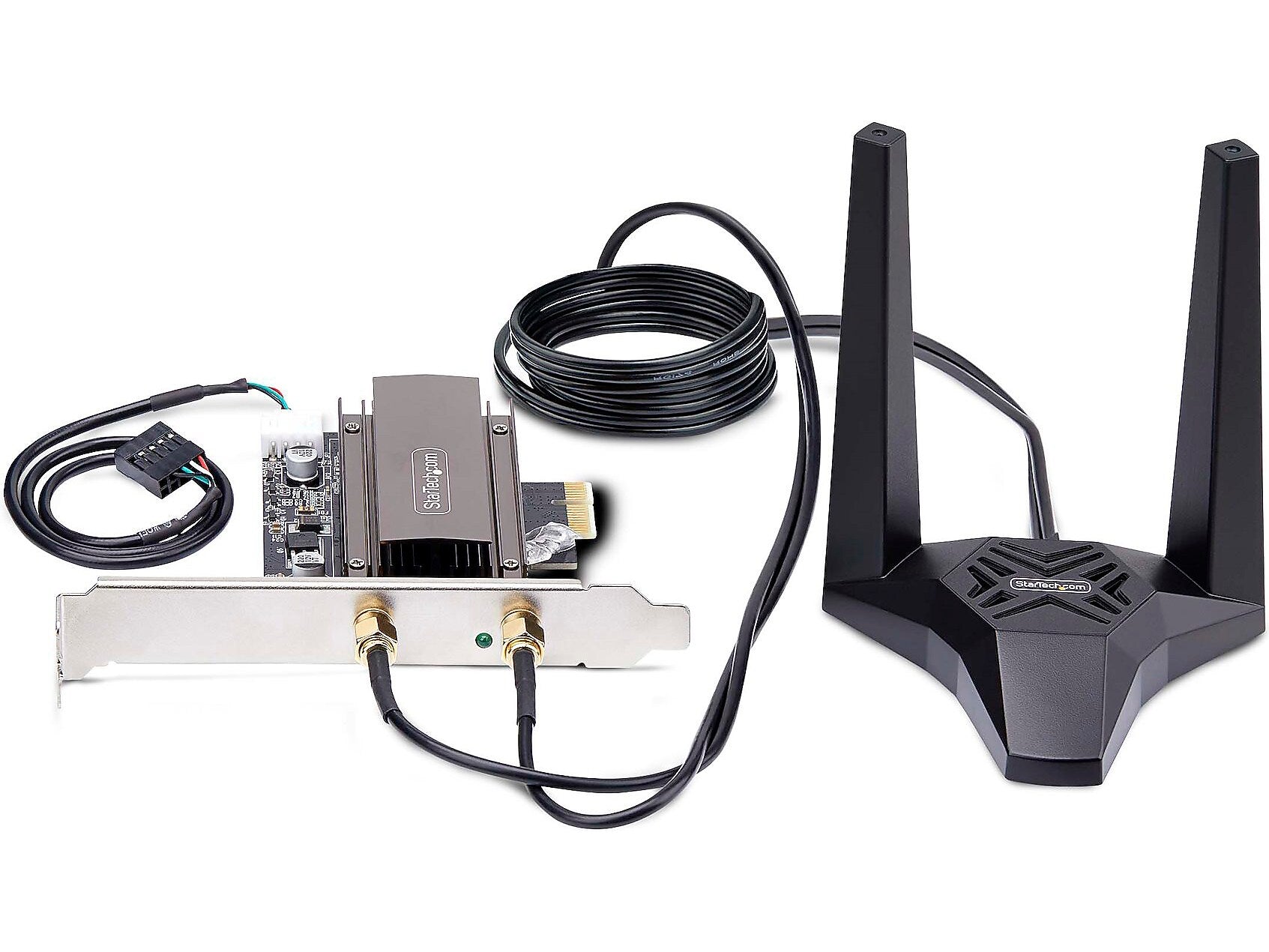

- Includes PCIe Wi-Fi card, magnetic antenna stand, Bluetooth cable, low-profile bracket with two screws, and quick-start guide
- 2-year manufacturer limited warranty
| Manufacturer # | PAX2235WIFI6ECARD |
| Antenna | External magnetic base with 2 x 5dBi Wi-Fi 6E tri-band antennas |
| Brand Name | StarTech |
| Compatibility | Windows 10, 11, Linux 5.11 and up (LTS versions only) |
| Data Transfer Rate | 2.4Gbps |
| Data Transfer Rate (gbps) | 2.4 |
| Data Transfer Rate (mbps) | 2400 |
| Depth in Inches | 4.7 |
| Frequency (wireless) | Tri Band 2.4/5/6GHz |
| Gaming | Non Gaming |
| Gigabit | Yes |
| Height in Inches | 0.7 |
| Included Components | PCIe Wi-Fi card, magnetic antenna stand, Bluetooth cable, low-profile bracket with two screws, quick-start guide |
| Led Indicators | Green LED indicator: PCIe Wi-Fi card is installed and receiving power |
| Mu-mimo | Yes |
| Max. Data Transfer Rate (mbps) | 2000 - 2499 |
| Network Adapter Interface | PCIe |
| Network Adapter Type | WiFi |
| Security Protocols | WPA3 personal and enterprise including WPA2 transition mode AES |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| System Requirements | Available PCI Express x1 or greater slot |
| True Color | Silver/Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.44 |
| Wifi Standard | WiFi 6E |
| Width in Inches | 2.4 |
| Wireless Bands | Tri Band |
| Wireless Connectivity | 802.11ax |
| Wireless Standard | AX |
Details
This Wi-Fi 6E network card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.
- Wi-Fi 6E PCIe Network Card with Bluetooth 5.3 enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)
- Tri-Band 802.11ax PCIe 3.0 Wi-Fi card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands
- OS compatibility: Windows 10, 11, Linux 5.11 and up (LTS versions only)
- OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency
- Meets or exceeds the FCC, and WEEE standards
- The antenna base is magnetized and equipped with a 3.6' attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference
- Base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces
- This card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption; to enable Bluetooth functionality, connect the four-pin IDC to nine-pin USB header (Bluetooth cable included) to an available nine-pin USB header, located on the motherboard of the host computer
- WPA3 offers secure encryption for Wi-Fi password safety
- The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance
- Includes PCIe Wi-Fi card, magnetic antenna stand, Bluetooth cable, low-profile bracket with two screws, and quick-start guide
- 2-year manufacturer limited warranty
