View Details- Ports: connector on first end: 1 x 9-pin DB-9 male RS-422 serial, connector on second end: 1 x type-A female USB 1.1 USB
- Dimensions: 0.9"(H) x 1.6"(W) x 1.8"(L)
- Conductor: Copper

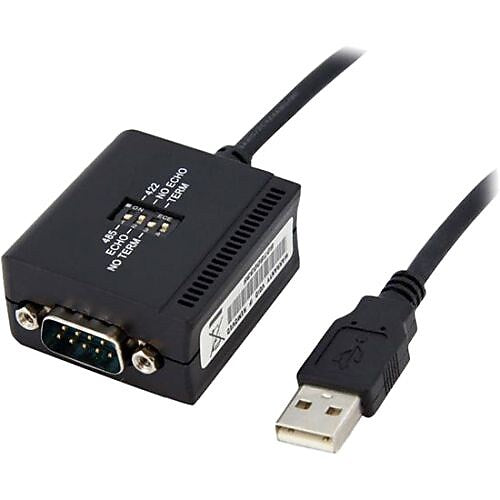

StarTech ICUSB422 6 ft Professional RS422/485 USB Serial Cable Adapter W/COM Retention
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
- Ports: connector on first end: 1 x 9-pin DB-9 male RS-422 serial, connector on second end: 1 x type-A female USB 1.1 USB
- Dimensions: 0.9"(H) x 1.6"(W) x 1.8"(L)
- Conductor: Copper
- Cable length: 1.33'
- Chipset ID: FTDI - FT232RL
- Max baud rate: 921.6 Kbps, Data bits: 7, 8, Parity: even, odd, none, Stop bits: 1, 2, Serial protocol: RS-422/485, FIFO: 256 bytes
- Bus type: USB 2.0, Port style: Cable adapter
- Environmental condition: Operating temperature: 0 to 60 deg C, Humidity: 5 - 95% RH
- Operating system: Windows 8/7/Vista/XP/2000/CE (4.2+)/Server 2008 R2/Server 2003, Mac OS v.9.x, v.10.x, Linux
- Includes 1 x USB to RS422/485 serial adapter, 1 x driver CD, 1 x installation guide
- Certifications and standards: RoHS, Green Compliant
- Weight: 3.5 oz.
- Warranty: 2 years limited
| Manufacturer # | BH4682 |
| Adapter & Splitter Type | Adapter |
| Adapter Use | Data |
| Brand Name | StarTech |
| Connector Gender | Male to Female |
| End 1 Connector Type | Serial |
| End 2 Connector Type | Other |
| Usb | Yes |
| Warranty Information | 2 Year |
Details
- Ports: connector on first end: 1 x 9-pin DB-9 male RS-422 serial, connector on second end: 1 x type-A female USB 1.1 USB
- Dimensions: 0.9"(H) x 1.6"(W) x 1.8"(L)
- Conductor: Copper
- Cable length: 1.33'
- Chipset ID: FTDI - FT232RL
- Max baud rate: 921.6 Kbps, Data bits: 7, 8, Parity: even, odd, none, Stop bits: 1, 2, Serial protocol: RS-422/485, FIFO: 256 bytes
- Bus type: USB 2.0, Port style: Cable adapter
- Environmental condition: Operating temperature: 0 to 60 deg C, Humidity: 5 - 95% RH
- Operating system: Windows 8/7/Vista/XP/2000/CE (4.2+)/Server 2008 R2/Server 2003, Mac OS v.9.x, v.10.x, Linux
- Includes 1 x USB to RS422/485 serial adapter, 1 x driver CD, 1 x installation guide
- Certifications and standards: RoHS, Green Compliant
- Weight: 3.5 oz.
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
