Highlights
View Details- Quad-port KVM switch to share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

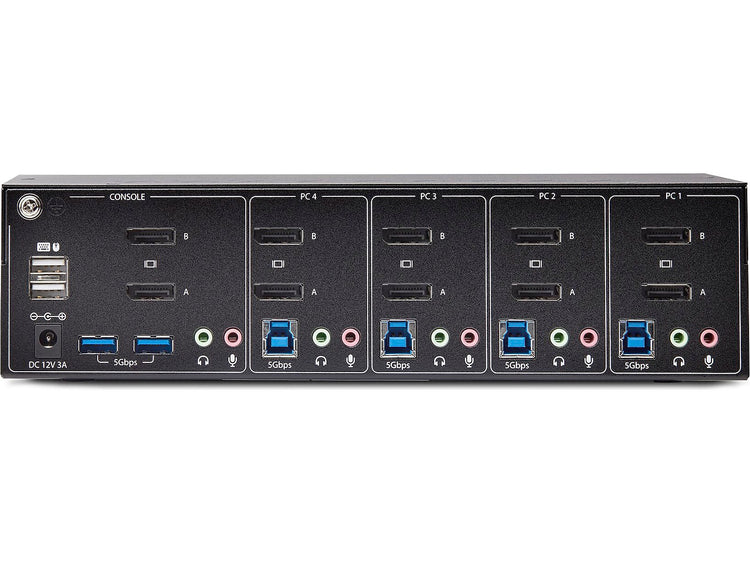

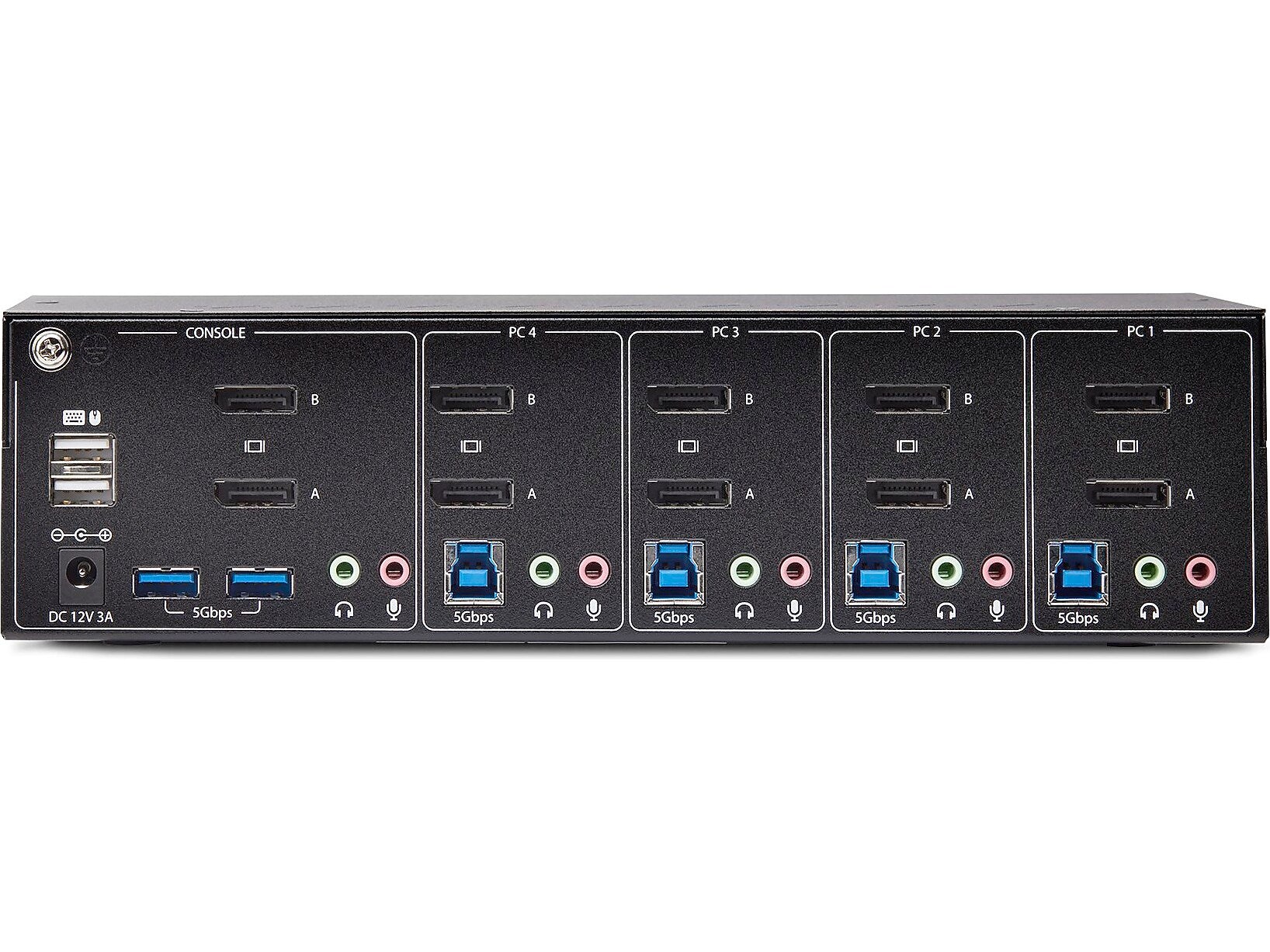

- Console interfaces: 2 x DisplayPort, 2 x USB Type-A (9-pin, 5Gbps), 2 x USB 2.0 Type-A (4-pin, 480Mbps), 2 x 3.5mm stereo ports, 1 x barrel power connector (size N; OD: 5.5; ID: 2.5)
- Host connectors: 8 x DisplayPort, 4 x USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 8 x 3.5mm stereo ports (female, three-position)
StarTech P4DD46A2-KVM-SWITCH USB DisplayPort 4-Port Dual-Monitor KVM Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices. USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys. This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it great for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse.
- Quad-port KVM switch to share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers
- Console interfaces: 2 x DisplayPort, 2 x USB Type-A (9-pin, 5Gbps), 2 x USB 2.0 Type-A (4-pin, 480Mbps), 2 x 3.5mm stereo ports, 1 x barrel power connector (size N; OD: 5.5; ID: 2.5)

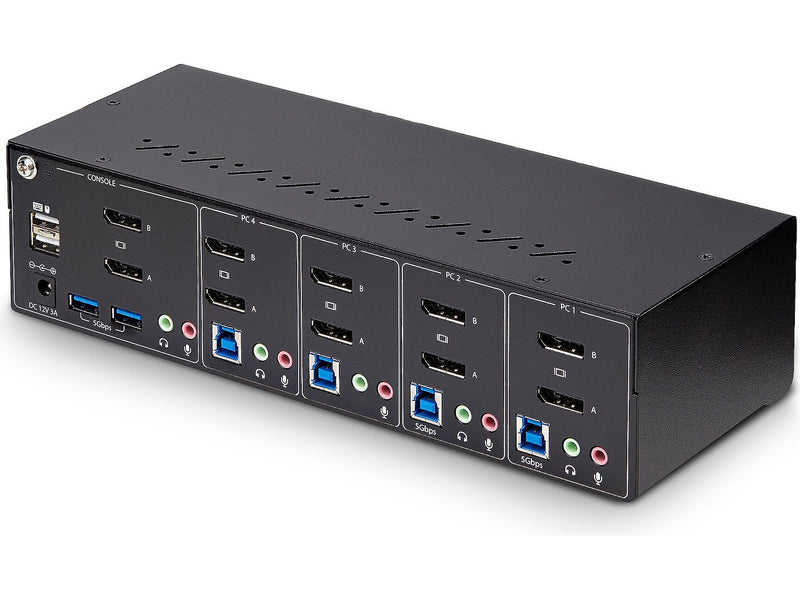

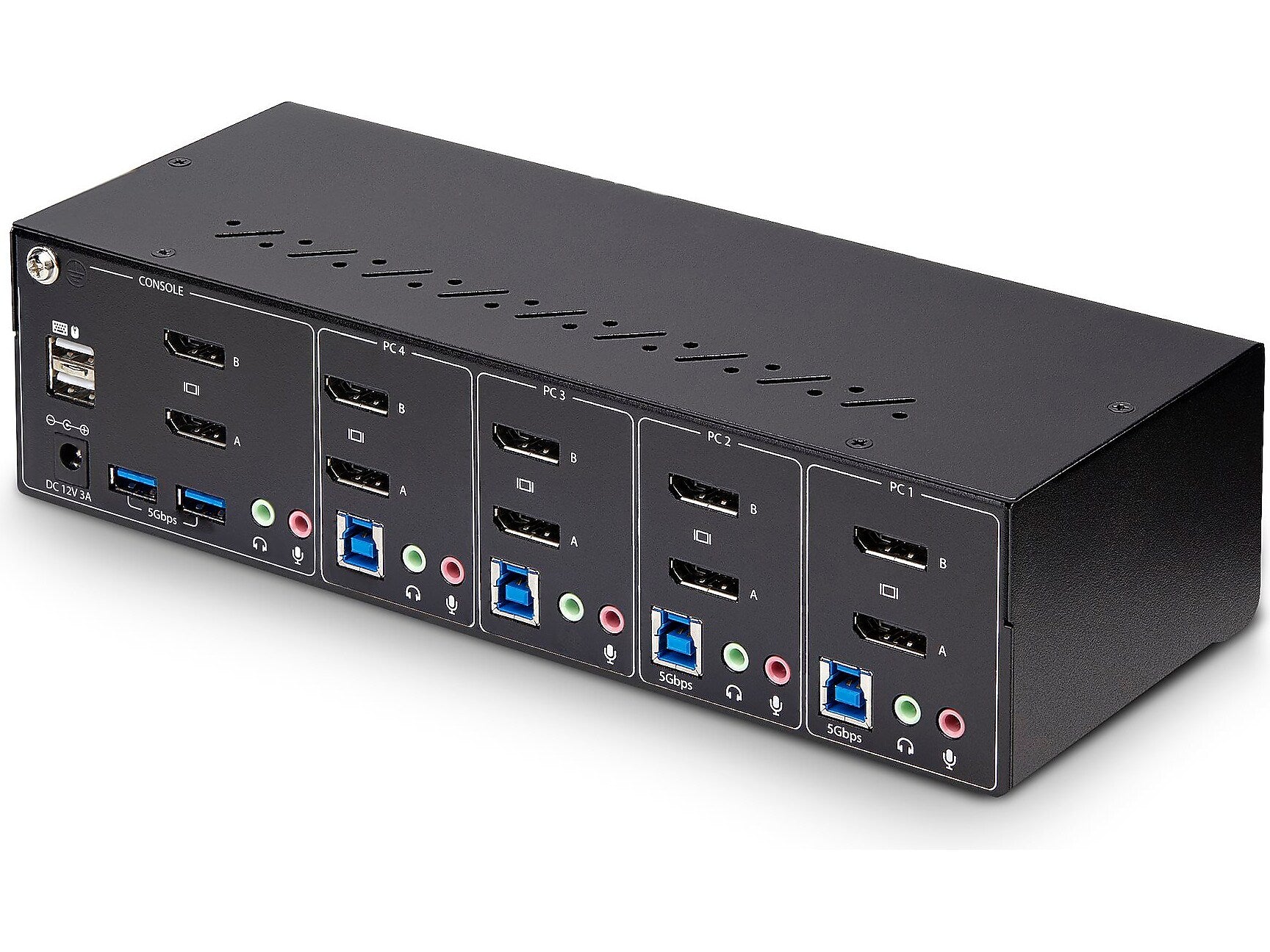

- Host connectors: 8 x DisplayPort, 4 x USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 8 x 3.5mm stereo ports (female, three-position)
- Dimensions: 2.6"H x 3.9"W x 10"D; weight is 2.6 lbs.
- USB Emulation enables fast switching of a keyboard, video, and mouse between four DisplayPort/USB-A enabled desktops
- USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys
- TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports
- Great for CAD/CAM, video editing, and content creation applications

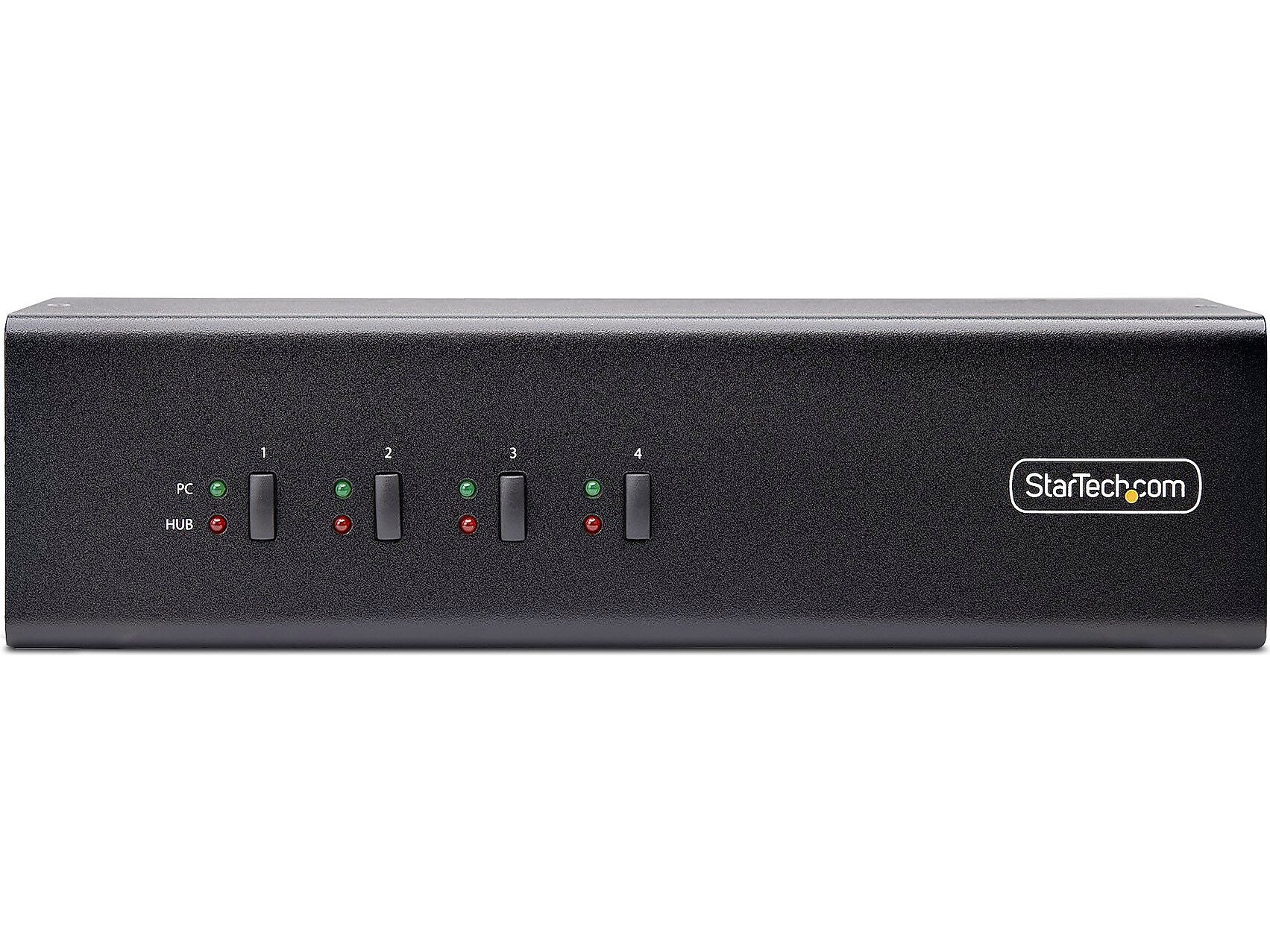

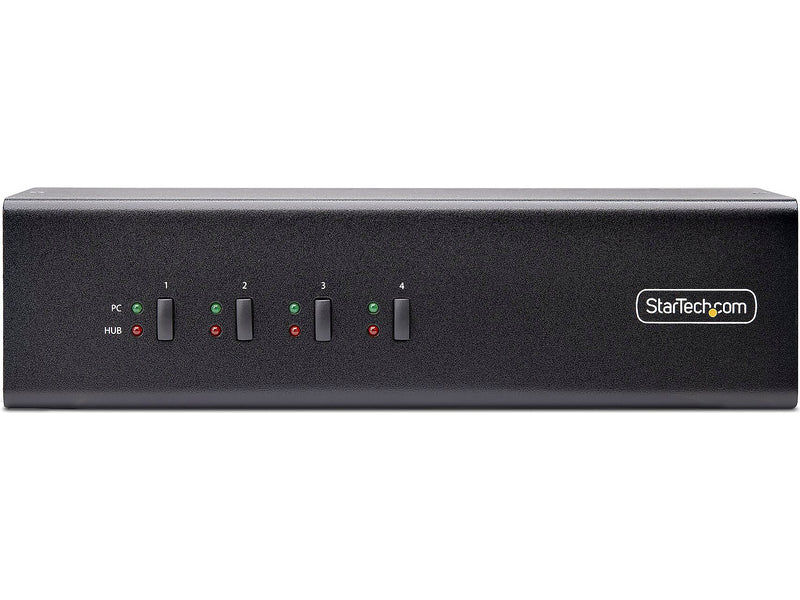

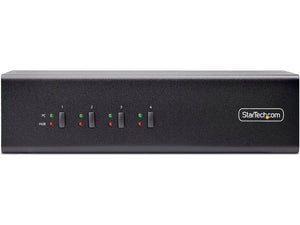

- Can be controlled via push buttons or hot keys, with an audible buzzer providing confirmation

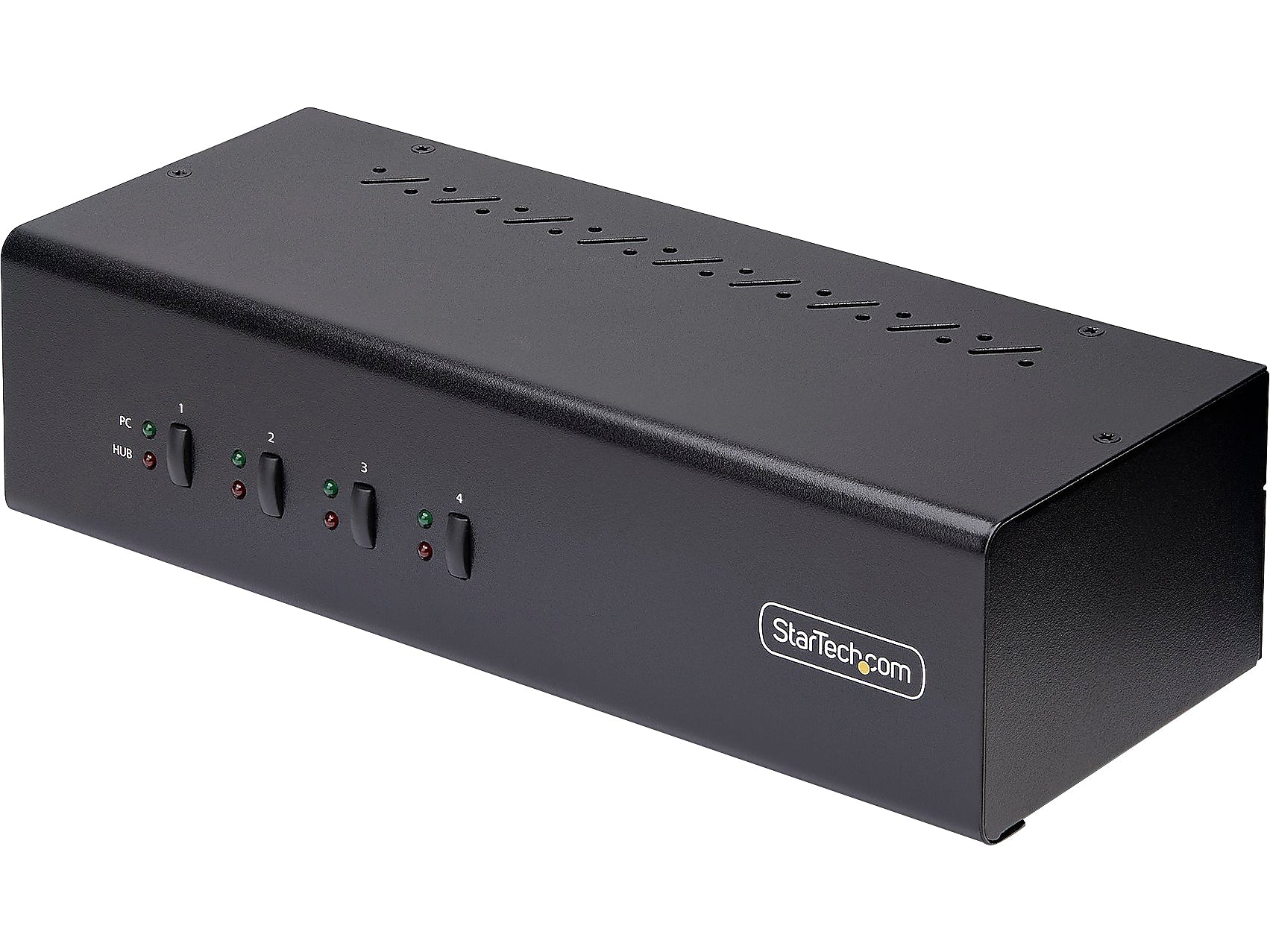

- LEDs provide quick visual port selection status; listen to audio from one computer, while controlling the other
- Durable steel housing helps prevent electromagnetic interference (EMI), enhancing stability and reliability of the KVM
- Sturdy construction makes it perfect for installation in a variety of environments; features a 8kV Air/6kV contact ESD protection
- No drivers or software required

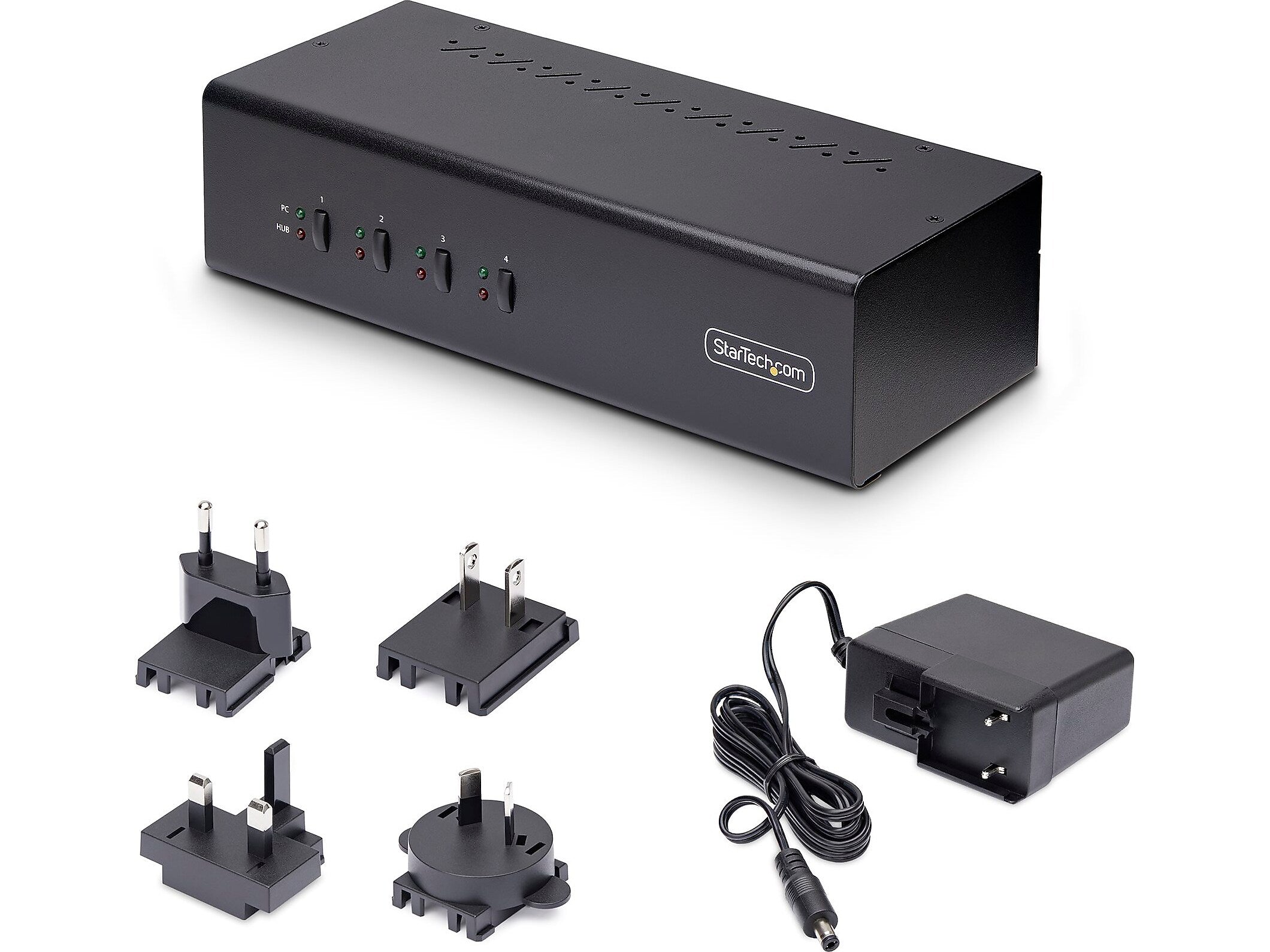

- Box contains: KVM switch, universal power adapter (NA/JP, EU, UK, NZ), quick-start guide
- 2-year manufacturer limited warranty
| Manufacturer # | P4DD46A2KVMSWITCH |
| # of Ports | 4 |
| Brand Name | StarTech |
| Connector, Port or Interface Type(s) | DisplayPort, USB Type-A (9 pin), USB 2.0 Type-A (4 pin), 3.5mm Stereo Female 3 pos, Barrel Power Connector, USB 3.2 USB Type-B (9 pin) |
| Connects Devices (to and From) | Desktops, Keyboard, Mouse, Audio Device, Monitor |
| Display Port | Yes |
| Ip Control | No |
| Included Components | universal power adapter (NA/JP, EU, UK, NZ), quick-start guide |
| Input Voltage | 100 - 240V AC |
| Kvm Cable or Switch Type | KVM Switch |
| Led Indicators | 4 - PC LED, 4 - Hub LED |
| Maximum Resolution | 3840 x 2160 @60Hz |
| Number of Computers Supported | 4 |
| Number of Monitors | 2 |
| Port Selection | Push Button and Hotkeys |
| Power Consumption (watts) | 0.1 |
| Power Source | AC powered |
| Rack-mountable | Not Rack-Mountable |
| Usb | Yes |
| Warranty Information | 2 Year |
Details
This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices. USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys. This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it great for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse.
- Quad-port KVM switch to share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers
- Console interfaces: 2 x DisplayPort, 2 x USB Type-A (9-pin, 5Gbps), 2 x USB 2.0 Type-A (4-pin, 480Mbps), 2 x 3.5mm stereo ports, 1 x barrel power connector (size N; OD: 5.5; ID: 2.5)
- Host connectors: 8 x DisplayPort, 4 x USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 8 x 3.5mm stereo ports (female, three-position)
- Dimensions: 2.6"H x 3.9"W x 10"D; weight is 2.6 lbs.
- USB Emulation enables fast switching of a keyboard, video, and mouse between four DisplayPort/USB-A enabled desktops
- USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys
- TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports
- Great for CAD/CAM, video editing, and content creation applications
- Can be controlled via push buttons or hot keys, with an audible buzzer providing confirmation
- LEDs provide quick visual port selection status; listen to audio from one computer, while controlling the other
- Durable steel housing helps prevent electromagnetic interference (EMI), enhancing stability and reliability of the KVM
- Sturdy construction makes it perfect for installation in a variety of environments; features a 8kV Air/6kV contact ESD protection
- No drivers or software required
- Box contains: KVM switch, universal power adapter (NA/JP, EU, UK, NZ), quick-start guide
- 2-year manufacturer limited warranty
