View Details- One-port RS232 serial adapter card with 16950 UART
- Dimensions: 3.9"H x 2.6"W x 5.9"D
- Features one PCI Express x1 male, one DB-9 (9-pin, D-sub) male, and one LP4 (4-pin; large drive power) male input

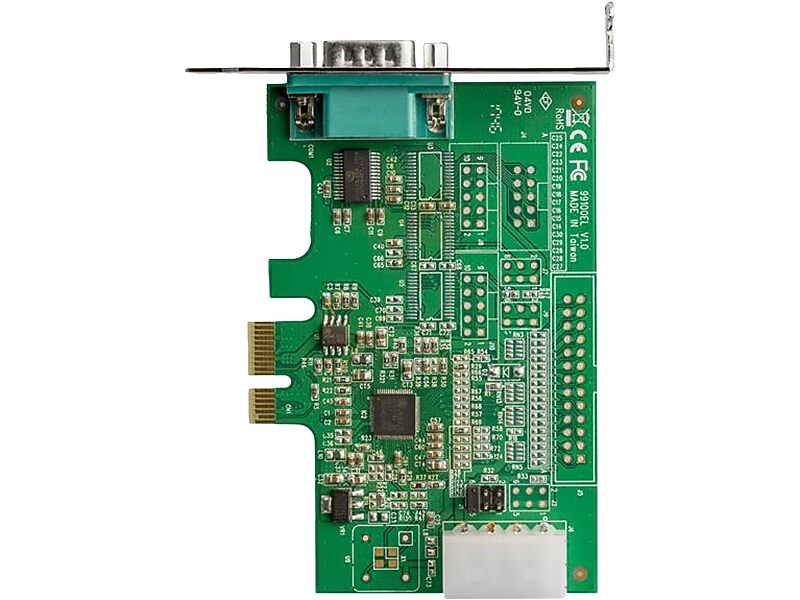

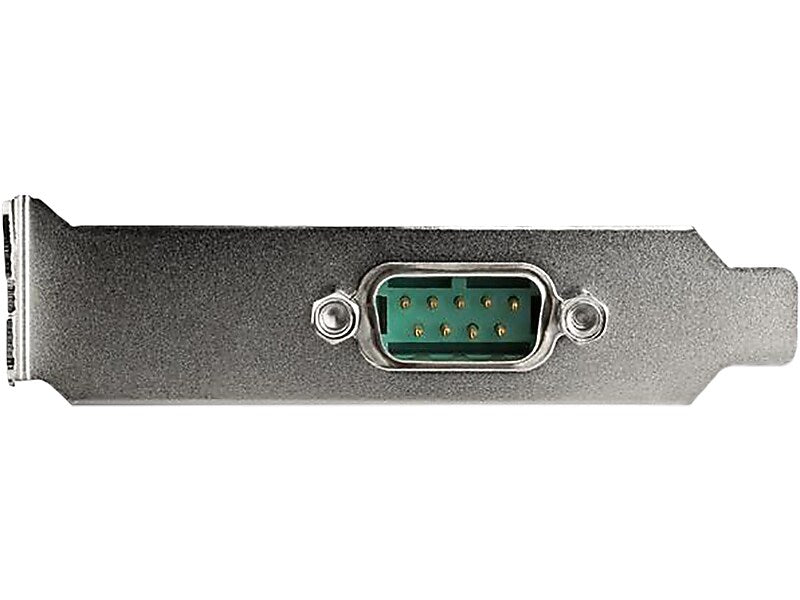

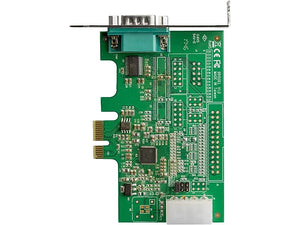

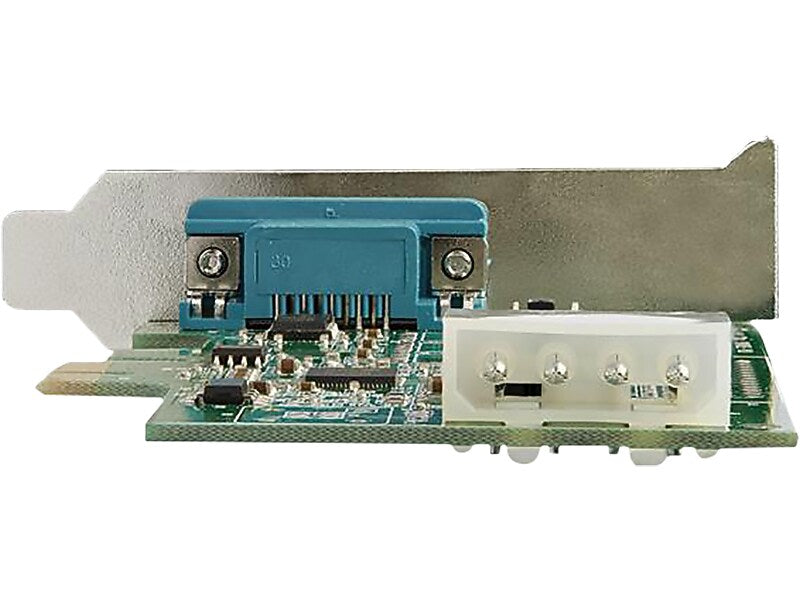

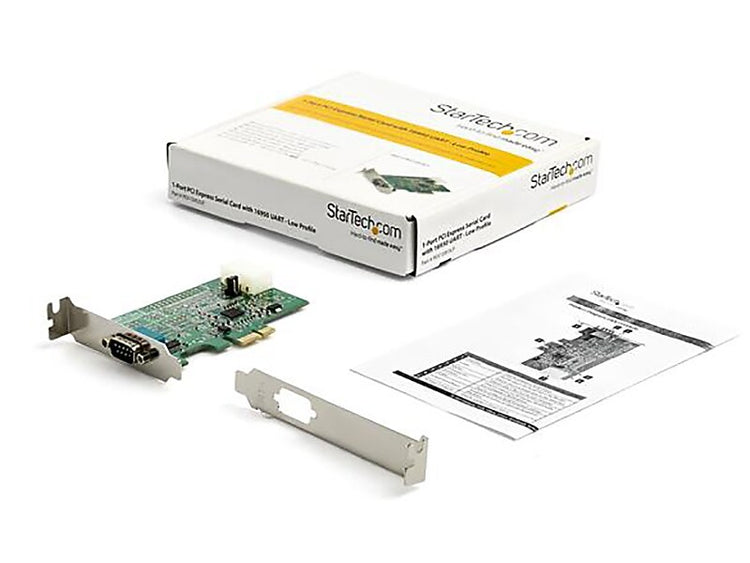

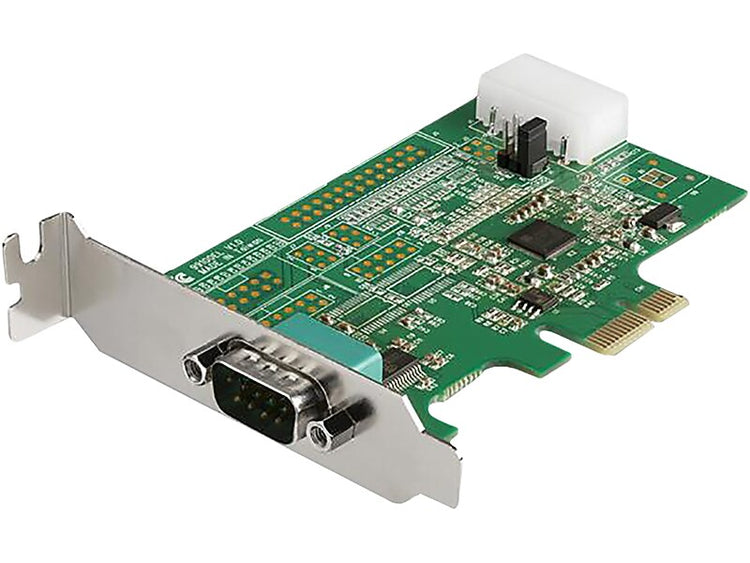

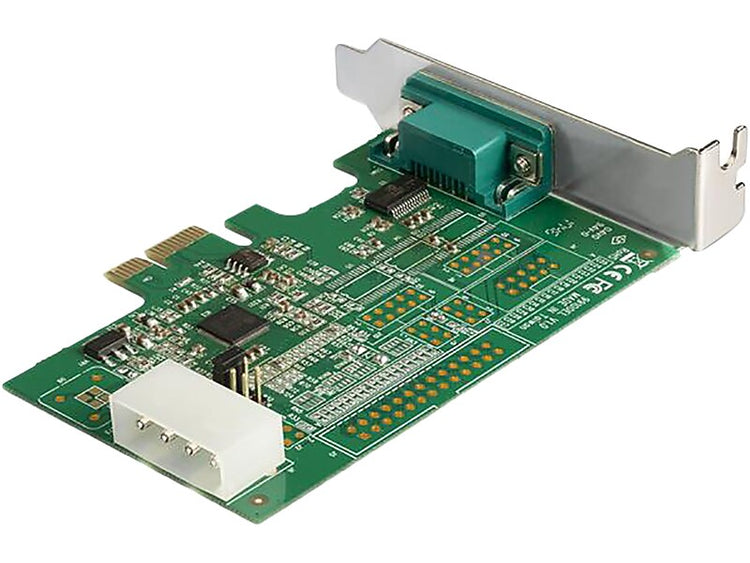

StarTech PEX1S953LP One-Port RS232 Serial Adapter Card
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
- One-port RS232 serial adapter card with 16950 UART
- Dimensions: 3.9"H x 2.6"W x 5.9"D
- Features one PCI Express x1 male, one DB-9 (9-pin, D-sub) male, and one LP4 (4-pin; large drive power) male input
- Meets or exceeds RoHS and REACH standards
- Offers to add RS232 DB9 capabilities without purchasing a new server or computer
- Maximizes case form factor integration with a low-profile or full-profile bracket
- High-speed data transfer rates up to 921.4KB/s
- Supports 256-byte depth FIFO per transmitter and receiver
- Weight: 1.6 oz.
- Card type: low profile
- Chipset ID: ASIX AX99100
- Interface: serial
- Compatible with Windows 7, 8, 8.1, 10; Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016; Linux 2.4.x to 2.6.x LTS versions only
- Lifetime manufacturer limited warranty
| Manufacturer # | PEX1S953LP |
| Brand Name | StarTech |
| Depth in Inches | 5.9 |
| Height in Inches | 3.9 |
| Network Adapter Interface | PCIe |
| Network Adapter Type | Ethernet |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Warranty Information | Lifetime |
| Weight (lbs.) | 0.1 |
| Width in Inches | 2.6 |
Details
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
- One-port RS232 serial adapter card with 16950 UART
- Dimensions: 3.9"H x 2.6"W x 5.9"D
- Features one PCI Express x1 male, one DB-9 (9-pin, D-sub) male, and one LP4 (4-pin; large drive power) male input
- Meets or exceeds RoHS and REACH standards
- Offers to add RS232 DB9 capabilities without purchasing a new server or computer
- Maximizes case form factor integration with a low-profile or full-profile bracket
- High-speed data transfer rates up to 921.4KB/s
- Supports 256-byte depth FIFO per transmitter and receiver
- Weight: 1.6 oz.
- Card type: low profile
- Chipset ID: ASIX AX99100
- Interface: serial
- Compatible with Windows 7, 8, 8.1, 10; Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016; Linux 2.4.x to 2.6.x LTS versions only
- Lifetime manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
