Highlights
View Details- Interface: SATA
- Data transfer rate: 6 Gbps
- Ports: 4

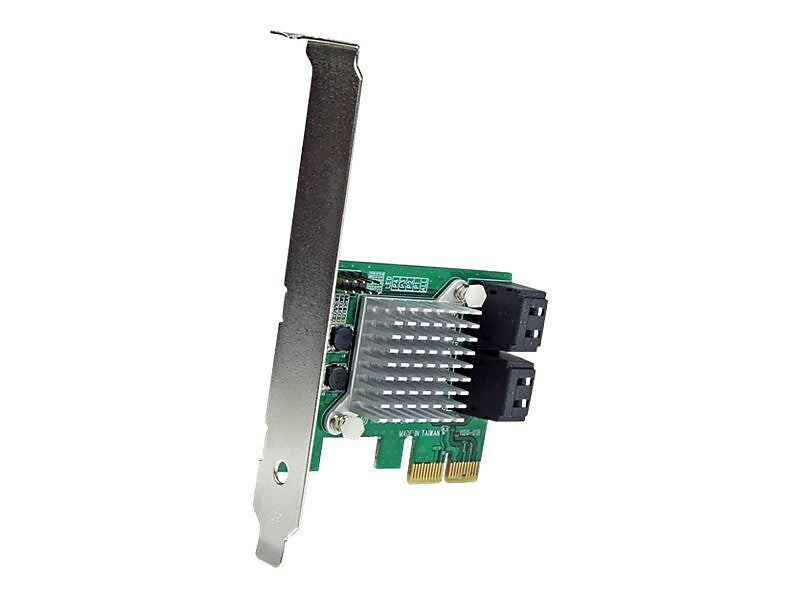

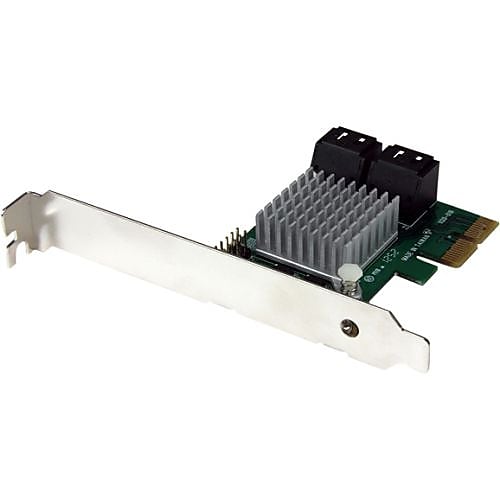

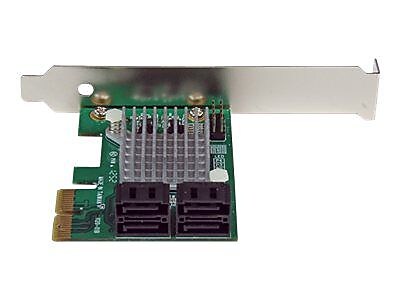

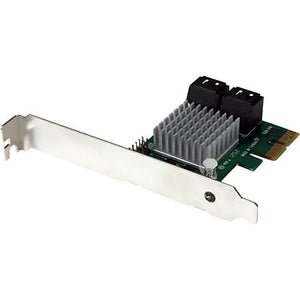

StarTech PEXSAT34RH 4 Port RAID Controller Card
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Startech.com® RAID control card balance the performance of SSD storage with the cost-effectiveness and large capacity of standard hard drives. Control card supports port multiplier that connects multiple SATA drives to one port over a single cable.
- Interface: SATA
- Data transfer rate: 6 Gbps
- Ports: 4
- Bus type: PCI express
- Card type: Standard profile, LBA support: 48 bit
- Port style: Integrated on card
- Host interface: 2 x PCI express 2.0
- Internal ports: 4 - SATA (7 pin, data) plug, controller type: serial ATA/600
- RAID levels: JBOD, 1, 0, 1+0
- Number of ports: 4 (SATA)
- Form factor: Plug-in card
- HyperDu technology offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives
- Maximum drive capacity: Up to 4TB per drive
- Dimensions: 2.8inch(H) x 4.7inch(W) x 0.8inch(T)
- Software: OS compatibility: Windows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS 10.6 /10.7 /10.8, Linux
- Platform supported: PC, Mac
- Environmental conditions: 5 - 50 Deg C operating temperature, 20 - 80% humidity
- Requirements: Available PCI express x2 slot (backward compatible with x4, x8, and x16 slots)
- Package contents: PCIe SATA controller card, low profile bracket, driver CD, instruction manual
- Warranty: 2 years limited
| Manufacturer # | PEXSAT34RH |
| Brand Name | StarTech |
| Data Transfer Rate (gbps) | 6 |
| Depth in Inches | .8 |
| Height in Inches | 2.8 |
| Internal Connectors | SATA and ATA |
| Os Required | Windows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS 10.6 /10.7 /10.8, Linux |
| Raid Host Interface | PCIe Card |
| Raid Support | JBOD, 1, 0, 1+0 |
| Width in Inches | 4.7 |
Details
Startech.com® RAID control card balance the performance of SSD storage with the cost-effectiveness and large capacity of standard hard drives. Control card supports port multiplier that connects multiple SATA drives to one port over a single cable.
- Interface: SATA
- Data transfer rate: 6 Gbps
- Ports: 4
- Bus type: PCI express
- Card type: Standard profile, LBA support: 48 bit
- Port style: Integrated on card
- Host interface: 2 x PCI express 2.0
- Internal ports: 4 - SATA (7 pin, data) plug, controller type: serial ATA/600
- RAID levels: JBOD, 1, 0, 1+0
- Number of ports: 4 (SATA)
- Form factor: Plug-in card
- HyperDu technology offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives
- Maximum drive capacity: Up to 4TB per drive
- Dimensions: 2.8inch(H) x 4.7inch(W) x 0.8inch(T)
- Software: OS compatibility: Windows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS 10.6 /10.7 /10.8, Linux
- Platform supported: PC, Mac
- Environmental conditions: 5 - 50 Deg C operating temperature, 20 - 80% humidity
- Requirements: Available PCI express x2 slot (backward compatible with x4, x8, and x16 slots)

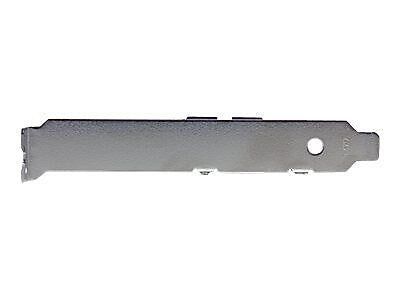

- Package contents: PCIe SATA controller card, low profile bracket, driver CD, instruction manual
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
