Highlights
View Details- 1 x HDMI input - 19 pin HDMI Type A video, 1 x line-in - mini-phone 3.5 mm audio
- Output 4 x HDMI output - 19 pin HDMI Type a video, 4 x line-outs - mini-phone stereo 3.5 mm audio
- Video splitter is easy to install and provides flawless, distortion-free digital video

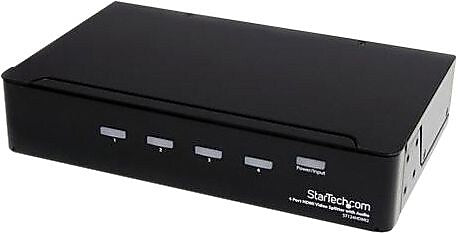

StarTech ST124 High Speed HDMI Video Splitter with Audio, 4 Ports
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
- 1 x HDMI input - 19 pin HDMI Type A video, 1 x line-in - mini-phone 3.5 mm audio
- Output 4 x HDMI output - 19 pin HDMI Type a video, 4 x line-outs - mini-phone stereo 3.5 mm audio
- Video splitter is easy to install and provides flawless, distortion-free digital video
- Graphics modes WUXGA, maximum digital resolutions HDTV 1080p / PC 1920x1200
- Supported resolutions 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
- No of ports 4, cabling HDMI, no of displays 4, no of i/p 1
- Maximum cable length 50', maximum operating distance 30'
- Enclosure type Steel, center tip polarity positive
- LED indicators 1 - power (green) / input signal (blue), 4 - green port signal indicator
- Voltage and current 110 - 240 AC input voltage, 0.8A input current, 12 DC output voltage, 1.5A output current
- Operating temperature 0 deg C - 40 deg C, storage temperature -20 deg C - 60 deg C, humidity 0 percent-80 percent
- Industry standards High speed HDMI®, HDCP, EDID
- System and cable requirements HDMI enabled display devices (e.g. monitor, HDTV, etc), HDMI enabled video source (e.g. computer, PVR/DVR, etc), available AC power outlet
- Applications Business conference rooms and trade show displays, for digital signage applications displaying video advertisements with audio in retail environments, financial applications, display information in waiting rooms
- Splits a single HDMI® source to up to 4 HDMI-enabled devices without signal loss, high speed HDMI® compliant, passes DVI video signals, DVI to HDMI adapters/cables required - not included, cascade up to 3 layers,
- Complaint and standards RoHS, CE, FC
- Includes 1 - HDMI splitter, 1 - set of mounting brackets, 1 - bag of screws, 1 - set rubber feet, 1 - universal power adapter (NA/UK/EU), 1 - instruction manual
- Weight 37.9 oz.
- Warranty 2 years limited
| Manufacturer # | DY8753 |
| Brand Name | StarTech |
Details
- 1 x HDMI input - 19 pin HDMI Type A video, 1 x line-in - mini-phone 3.5 mm audio
- Output 4 x HDMI output - 19 pin HDMI Type a video, 4 x line-outs - mini-phone stereo 3.5 mm audio
- Video splitter is easy to install and provides flawless, distortion-free digital video
- Graphics modes WUXGA, maximum digital resolutions HDTV 1080p / PC 1920x1200
- Supported resolutions 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
- No of ports 4, cabling HDMI, no of displays 4, no of i/p 1
- Maximum cable length 50', maximum operating distance 30'
- Enclosure type Steel, center tip polarity positive
- LED indicators 1 - power (green) / input signal (blue), 4 - green port signal indicator
- Voltage and current 110 - 240 AC input voltage, 0.8A input current, 12 DC output voltage, 1.5A output current
- Operating temperature 0 deg C - 40 deg C, storage temperature -20 deg C - 60 deg C, humidity 0 percent-80 percent
- Industry standards High speed HDMI®, HDCP, EDID
- System and cable requirements HDMI enabled display devices (e.g. monitor, HDTV, etc), HDMI enabled video source (e.g. computer, PVR/DVR, etc), available AC power outlet
- Applications Business conference rooms and trade show displays, for digital signage applications displaying video advertisements with audio in retail environments, financial applications, display information in waiting rooms
- Splits a single HDMI® source to up to 4 HDMI-enabled devices without signal loss, high speed HDMI® compliant, passes DVI video signals, DVI to HDMI adapters/cables required - not included, cascade up to 3 layers,
- Complaint and standards RoHS, CE, FC
- Includes 1 - HDMI splitter, 1 - set of mounting brackets, 1 - bag of screws, 1 - set rubber feet, 1 - universal power adapter (NA/UK/EU), 1 - instruction manual
- Weight 37.9 oz.
- Warranty 2 years limited
