Highlights
View Details- Type: Dual video
- Size: 12"L x 7"W x 1.7"H
- Host interface: USB

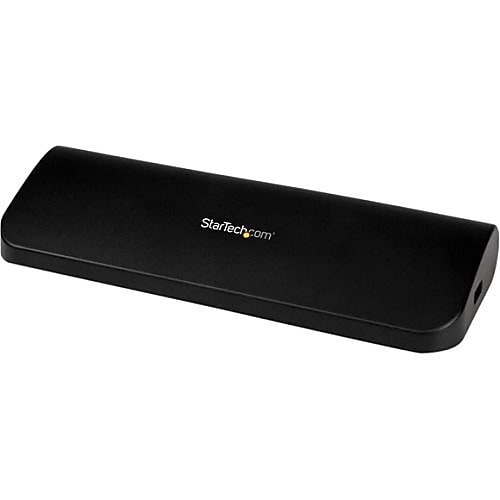

StarTech Universal USB 3.0 Ultrabook Docking Station (USB3SDOCKHDV)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
TAA compliant docking station - Dual monitor docking station creates a multi-monitor setup - Display combinations available: HDMI + DVI or HDMI + VGA - 10 / 100 / 1000 Mbps compatible RJ45 Ethernet port built into the dock USB docking station - Integrated 3-port USB 3.0 hub - USB 3.0 port replicator adds the ports you need - Universal laptop docking station with HDMI works with virtually any USB 3.0 laptop - USB 3.0 dock supports data transfer rates up to 5Gbps
- Type: Dual video
- Size: 12"L x 7"W x 1.7"H
- Host interface: USB
- Power supply: 100 - 240 V, 0.9 A(input), 5 VDC, 4 A(output)
- Cable length: 3'
- Connector type: 1 - DVI-D(25 pin) female, 1 - HDMI(19 pin) female, 1 - RJ-45 female, 1 - USB 3.0(9 pin) female, 1 - VGA(15 pin) female, 2 - 3.5 mm mini-jack female, 3 - USB 3.0 A(9 pin) female
- Compatible networks: 10/100/1000 Mbps
- Maximum analog/digital resolutions: 2048x1152 (VGA)/1920x1200 (DVI-D), 1920x1080 (HDMI)
- Maximum data transfer rate: 5 Gbps (USB 3.0), 2 Gbps (ethernet, full-duplex)
- OS compatibility: Windows 8 (32/64-bit), 7 (32/64), vista (32/64), xP SP3 (32/64), Windows server 2008 R2, 2003 (32/64)
- Humidity: 0 - 90 RH
- Operating/storage temperature: 0 - 40 deg C (32 - 104 deg F)/-10 - 60 deg C (14 - 140 deg F)
- Connect dual displays using either HDMI + DVI-D, or HDMI + VGA combinations
- Speaker and microphone support via 3.5 mm stereo mini-jacks
- Supports HD resolutions on both connected displays
- Kensington security slot
- Package contents: Docking station, USB 3.0 cable, universal power adapter, instruction manual, installation CD
- Certificates and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0, CE, FC, RoHS
- Weight: 10.2 oz.
- Warranty: 2 years limited
| Manufacturer # | USB3SDOCKHDV |
| Brand Name | StarTech |
| Connector, Port or Interface Type(s) | USB |
| Data Transfer Rate (gbps) | 5 |
| Depth in Inches | 12 |
| Docking Station Type | Universal |
| Height in Inches | 1.7 |
| Number of Hdmi Ports | 1 |
| Number of Usb Ports | 4 |
| Number of Vga Port(s) | 1 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.64 |
| Width in Inches | 7 |
Details
TAA compliant docking station - Dual monitor docking station creates a multi-monitor setup - Display combinations available: HDMI + DVI or HDMI + VGA - 10 / 100 / 1000 Mbps compatible RJ45 Ethernet port built into the dock USB docking station - Integrated 3-port USB 3.0 hub - USB 3.0 port replicator adds the ports you need - Universal laptop docking station with HDMI works with virtually any USB 3.0 laptop - USB 3.0 dock supports data transfer rates up to 5Gbps
- Type: Dual video
- Size: 12"L x 7"W x 1.7"H
- Host interface: USB
- Power supply: 100 - 240 V, 0.9 A(input), 5 VDC, 4 A(output)
- Cable length: 3'
- Connector type: 1 - DVI-D(25 pin) female, 1 - HDMI(19 pin) female, 1 - RJ-45 female, 1 - USB 3.0(9 pin) female, 1 - VGA(15 pin) female, 2 - 3.5 mm mini-jack female, 3 - USB 3.0 A(9 pin) female
- Compatible networks: 10/100/1000 Mbps
- Maximum analog/digital resolutions: 2048x1152 (VGA)/1920x1200 (DVI-D), 1920x1080 (HDMI)
- Maximum data transfer rate: 5 Gbps (USB 3.0), 2 Gbps (ethernet, full-duplex)
- OS compatibility: Windows 8 (32/64-bit), 7 (32/64), vista (32/64), xP SP3 (32/64), Windows server 2008 R2, 2003 (32/64)
- Humidity: 0 - 90 RH
- Operating/storage temperature: 0 - 40 deg C (32 - 104 deg F)/-10 - 60 deg C (14 - 140 deg F)
- Connect dual displays using either HDMI + DVI-D, or HDMI + VGA combinations
- Speaker and microphone support via 3.5 mm stereo mini-jacks
- Supports HD resolutions on both connected displays
- Kensington security slot
- Package contents: Docking station, USB 3.0 cable, universal power adapter, instruction manual, installation CD
- Certificates and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0, CE, FC, RoHS
- Weight: 10.2 oz.
- Warranty: 2 years limited
