Highlights
View Details- Suitable for Intel ATX 12V v2.3 motherboards
- Form factor: Internal
- Output power: 500 W

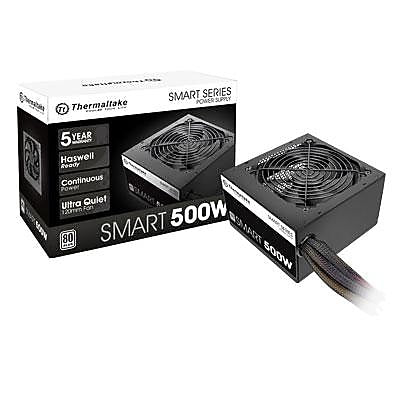

Thermaltake Smart Power Supply for Intel ATX 12V v2.3 Motherboard, 500 W, Black (PSSPD0500NPCWUS)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Thermaltake smart power supply is compatible with Intel ATX 12V v2.3 motherboard. The 500 W power supply with 82 - 86 percent efficiency at 20 - 100 percent load, has 120 mm fan for cooling purpose. This black power supply has input voltage rating of 100 - 240 V at 50 - 60 Hz and input current rating of 8 A. This power supply operates at a temperature range of 5 - 40 deg C and has hold up time of 16 ms within 60 percent load.
- Suitable for Intel ATX 12V v2.3 motherboards
- Form factor: Internal
- Output power: 500 W
- Efficiency: 82 - 86 percent at 20 - 100 percent load, Power factor correction: Active
- Interfaces/ports: Two 6-pin PCI-E
- Cooling system: One 20 mm fan: 1800 RPM+ 10 percent
- Input voltage: 100 - 240 V, 50 - 60Hz, Input current: 8 A max
- Dimensions: 86 mmH x 150 mmW x 140 mmD
- Comes in black color
- Power good signal: 100 - 500 msec, Hold up time: 16 msec (minimum) within 60 percent load
- Operation temperature: 5 - 40 deg C, Storage temperature: -40 to 55 deg C, Operating humidity: 20 - 85 percent, Storage humidity: 10 - 95 percent
- MTBF: 100000 hrs minimum
- Meets 80 PLUS certified, CE/CB/TUV/UL/FCC
| Manufacturer # | PSSPD0500NPCWUS |
| Atx Connector | 24 Pin |
| Atx/eps Compliance | ATX 12V |
| Brand Name | Thermaltake |
| Compatible with | Intel ATX 12V v2.3 motherboards |
| Connector, Port or Interface Type(s) | Two 6-pin |
| Depth in Inches | 7 |
| Energy Efficiency Rating | 80 PLUS |
| Frequency (hz) | 50 - 60 Hz |
| Height in Inches | 4 |
| Input Voltage | 100 - 240 V |
| Motherboard Compatibility | ATX |
| Number of Fans | 1 |
| Number of Rails | 1 |
| Output Power (watts) | 400 - 599 |
| Output Voltage | 500 W |
| Pcie Connectors | 2x 6+2-Pin |
| Power Supply Form Factor | Internal |
| Protection Type | Under Voltage |
| Series or Collection | Smart Series |
| True Color | Black |
| Watts | 500 |
| Weight (ounces) | 60.8 |
| Weight (lbs.) | 3.8 |
| Width in Inches | 8.9 |
Details
The Thermaltake smart power supply is compatible with Intel ATX 12V v2.3 motherboard. The 500 W power supply with 82 - 86 percent efficiency at 20 - 100 percent load, has 120 mm fan for cooling purpose. This black power supply has input voltage rating of 100 - 240 V at 50 - 60 Hz and input current rating of 8 A. This power supply operates at a temperature range of 5 - 40 deg C and has hold up time of 16 ms within 60 percent load.
- Suitable for Intel ATX 12V v2.3 motherboards
- Form factor: Internal
- Output power: 500 W
- Efficiency: 82 - 86 percent at 20 - 100 percent load, Power factor correction: Active
- Interfaces/ports: Two 6-pin PCI-E
- Cooling system: One 20 mm fan: 1800 RPM+ 10 percent
- Input voltage: 100 - 240 V, 50 - 60Hz, Input current: 8 A max
- Dimensions: 86 mmH x 150 mmW x 140 mmD
- Comes in black color
- Power good signal: 100 - 500 msec, Hold up time: 16 msec (minimum) within 60 percent load
- Operation temperature: 5 - 40 deg C, Storage temperature: -40 to 55 deg C, Operating humidity: 20 - 85 percent, Storage humidity: 10 - 95 percent
- MTBF: 100000 hrs minimum
- Meets 80 PLUS certified, CE/CB/TUV/UL/FCC
| Attribute Name | Attribute Value |
|---|
