Highlights
View Details- Convenient managed gigabit switch with 24-port PoE+ for a complete Omada network
- 24 x 802.3af/at compliant gigabit PoE+ ports and 4 x gigabit SFP slots provide high-speed connections
- Switching capacity: 56Gbps; packet forwarding rate: 41.66Mbps

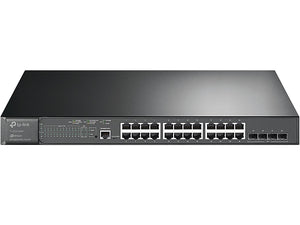

TP-LINK JetStream 24-Port Gigabit Ethernet PoE+ Managed Switch, Black (TL-SG3428MP)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

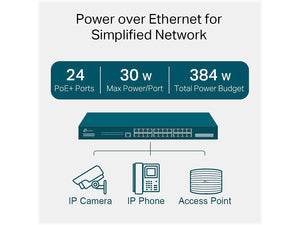

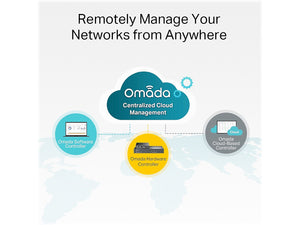

Featuring 24 PoE+ (802.3af/at compliant) ports, the TP-LINK JetStream switch supports a total PoE power budget up to 384W. Designed to use a single Ethernet cable for both data and power transmission, the switch offers flexible deployment for PoE-supported devices, such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Omada's software-defined networking (SDN) platform integrates network devices, including access points, switches and routers, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. The switch provides seamless wireless and wired connections, making it great for use in hospitality, education, retail, offices, and more.
- Convenient managed gigabit switch with 24-port PoE+ for a complete Omada network

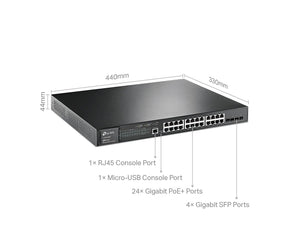

- 24 x 802.3af/at compliant gigabit PoE+ ports and 4 x gigabit SFP slots provide high-speed connections
- Switching capacity: 56Gbps; packet forwarding rate: 41.66Mbps
- Comes in a 1U rack-mountable form factor
- SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events
- With QoS (quality of service), voice and video services remain smooth, even when bandwidth is in short supply
- Security features include IP-MAC-Port-VID binding, port security, storm control, and DHCP snooping to defend against a range of network threats
- Maximum power consumption: 465.8W
- Meets or exceeds the CE, FCC, and RoHS standards
- Integrated list of common DoS attacks is available, making it easier than ever to prevent them
- Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided
- QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind
- 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links
- Easy to manage via an intuitive web-based graphical user interface (GUI) or an industry-standard command-line interface (CLI)
- System requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, or Linux
- Package contents: switch, power cord, rack mounting kit, rubber feet, quick installation guide
- Lifetime manufacturer limited warranty
| Manufacturer # | TLSG3428MP |
| Brand Name | TP-LINK |
| Data Rate Performances | 10/100/1000Mbps |
| Depth in Inches | 13 |
| Gaming | Non Gaming |
| Height in Inches | 1.7 |
| Input Voltage | 100-240VAC |
| Jumbo Frame | 9KB |
| Lacp | Yes |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 24 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power Supply | AC power supply |
| Power over Ethernet | Yes |
| Quality of Service | Yes |
| Snmp | v1, v2c, v3 |
| Series or Collection | JetStream |
| Stackable | Non-Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Width in Inches | 17.3 |
Details
Featuring 24 PoE+ (802.3af/at compliant) ports, the TP-LINK JetStream switch supports a total PoE power budget up to 384W. Designed to use a single Ethernet cable for both data and power transmission, the switch offers flexible deployment for PoE-supported devices, such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Omada's software-defined networking (SDN) platform integrates network devices, including access points, switches and routers, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. The switch provides seamless wireless and wired connections, making it great for use in hospitality, education, retail, offices, and more.
- Convenient managed gigabit switch with 24-port PoE+ for a complete Omada network
- 24 x 802.3af/at compliant gigabit PoE+ ports and 4 x gigabit SFP slots provide high-speed connections
- Switching capacity: 56Gbps; packet forwarding rate: 41.66Mbps
- Comes in a 1U rack-mountable form factor
- SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events
- With QoS (quality of service), voice and video services remain smooth, even when bandwidth is in short supply
- Security features include IP-MAC-Port-VID binding, port security, storm control, and DHCP snooping to defend against a range of network threats
- Maximum power consumption: 465.8W
- Meets or exceeds the CE, FCC, and RoHS standards
- Integrated list of common DoS attacks is available, making it easier than ever to prevent them
- Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided
- QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind
- 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links
- Easy to manage via an intuitive web-based graphical user interface (GUI) or an industry-standard command-line interface (CLI)
- System requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, or Linux
- Package contents: switch, power cord, rack mounting kit, rubber feet, quick installation guide
- Lifetime manufacturer limited warranty
