Highlights
View Details- The TP-Link Omada AC1200 supports Wi-Fi 5 (802.11 a/b/g/n/ac) and functions as an extender, providing robust wireless connectivity for seamless network expansion.
- Utilizing the AC wireless standard, this access point delivers a combined data transfer rate of 1.167 Gbps, with 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- This device operates on dual bands, offering both 2.4 GHz and 5 GHz frequencies to ensure optimal performance and minimal interference for connected devices.

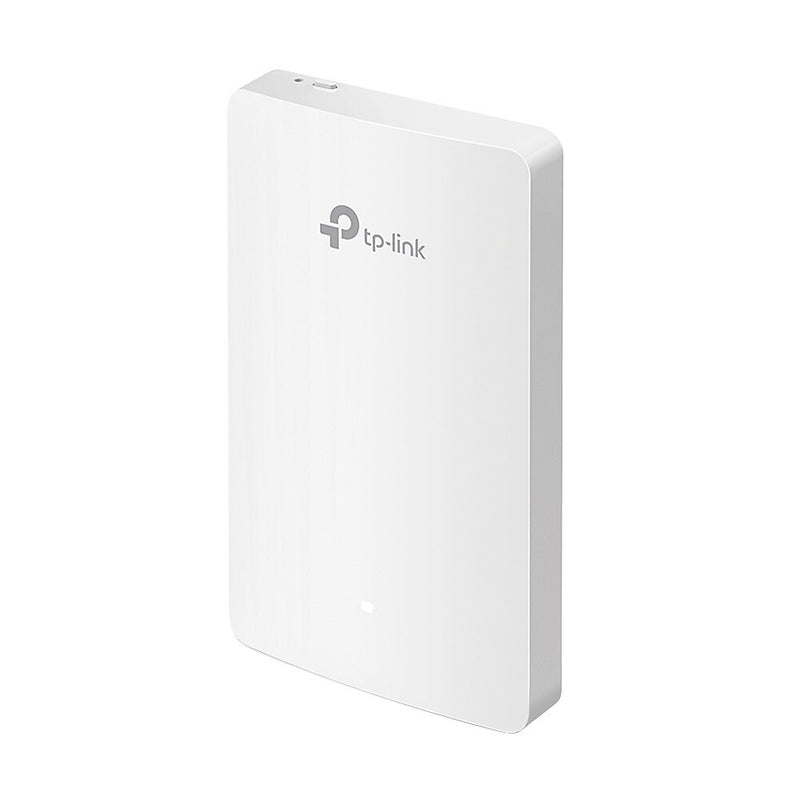

TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point, Wall Plate, White (EAP235-Wall)
Log in to see pricing


Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

Transform Your Network with TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point Upgrade your connectivity with the TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point. Designed for seamless integration and powerful performance, this access point ensures your network is always at its best. Key Features: High-Speed Dual-Band Wi-Fi: Enjoy fast and reliable Wi-Fi with simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, totaling 1,167 Mbps. Gigabit Connectivity: Four Gigabit Ethernet ports, including one uplink and three access ports, with PoE pass-through for powering devices like phones and cameras. Centralized Management: Manage your network effortlessly with cloud access and the Omada app, providing mobility and ease of use. Elegant Design: Ultra-slim and inconspicuous, this access point blends seamlessly into any environment, from hotel rooms to offices. Easy Installation: Compatible with US, EU, and 86mm junction boxes, and supports PoE for hassle-free setup without additional wiring. Advanced Wireless Technology: Optimize performance with features like airtime fairness, band steering, and beamforming. Guest Network: Offer a smooth and friendly guest experience with multiple login options, including SMS, Facebook Wi-Fi, and customizable captive portals. Robust Security: Protect your network with advanced security protocols, including captive portal, ACL, MAC filtering, and more. Experience the future of networking with the TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point. Perfect for businesses, hotels, hospitals, and more, this access point delivers the performance and reliability you need.
- The TP-Link Omada AC1200 supports Wi-Fi 5 (802.11 a/b/g/n/ac) and functions as an extender, providing robust wireless connectivity for seamless network expansion.
- Utilizing the AC wireless standard, this access point delivers a combined data transfer rate of 1.167 Gbps, with 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- This device operates on dual bands, offering both 2.4 GHz and 5 GHz frequencies to ensure optimal performance and minimal interference for connected devices.
- The access point supports both wireless and Ethernet connectivity, allowing for flexible network integration and reliable data transmission.

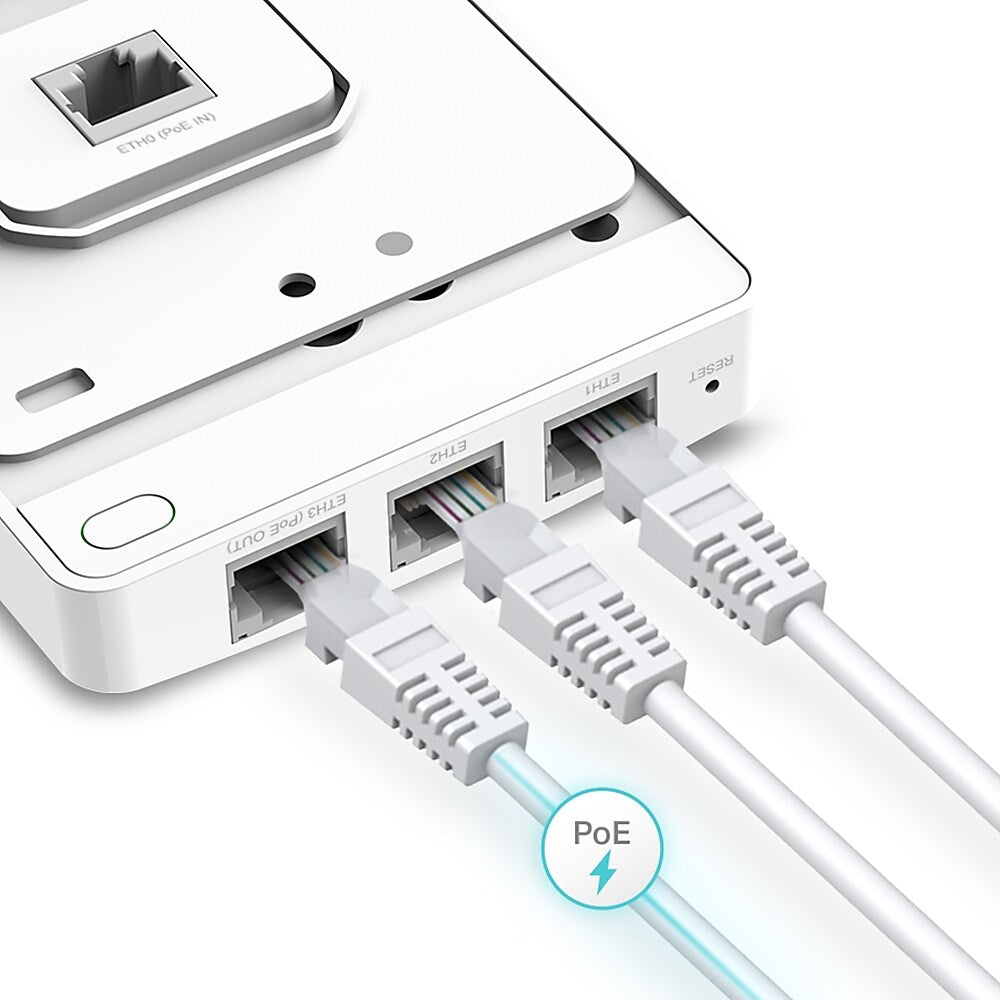

- Equipped with four Gigabit Ethernet ports, including one uplink and three access ports, with one port offering PoE pass-through for powering additional devices.
- Features internal antennas with 4 dBi gain for both 2.4 GHz and 5 GHz bands, ensuring strong and stable signal coverage throughout the area.

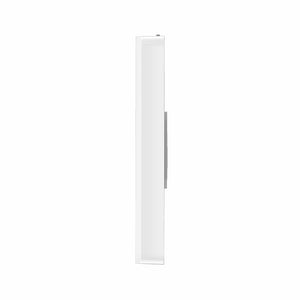

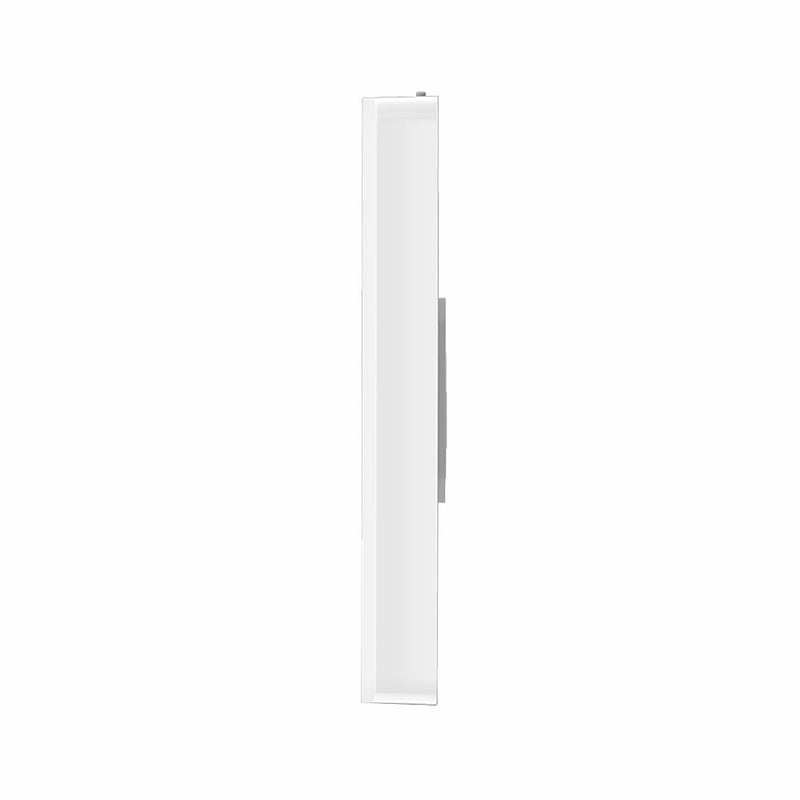

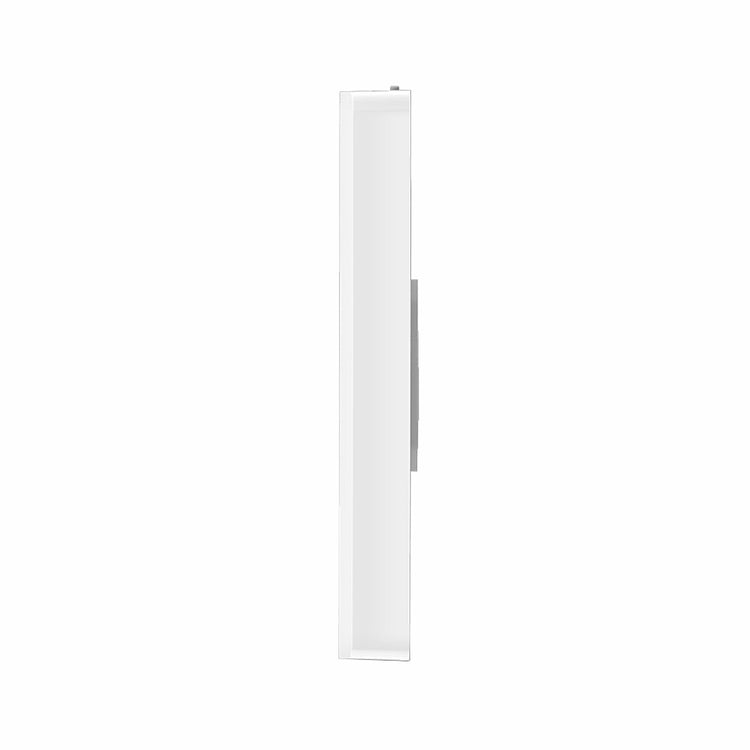

- Designed as a wall plate, this access point blends seamlessly into any environment, providing a sleek and unobtrusive solution for network expansion.
- Supports MU-MIMO technology, allowing multiple devices to connect simultaneously without compromising on speed or performance, enhancing overall network efficiency.
- Covers an area of up to 300 square feet, providing reliable and consistent Wi-Fi coverage for small to medium-sized spaces such as hotel rooms, offices, and dormitories.
- Comes with a 1-year manufacturer warranty, ensuring peace of mind and reliable support for your networking needs.
Manufacturer # | EAP235WALL |
# of Lan Ports | 4 |
Antenna | 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 4 dBi |
App-controlled | Yes |
Brand Name | TP-LINK |
Connectivity Type | Wireless and Ethernet |
Data Transfer Rate | 1167 Mbps |
Data Transfer Rate (gbps) | 1.167 |
Depth in Inches | 5.6 |
Extender & Repeater Design | Wall/Ceiling Mount |
Extender & Repeater Type | Extenders |
Frequencies | 2.4 GHz and 5 GHz |
Gaming | Non Gaming |
Height in Inches | 0.8 |
Included Components | Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall, Installation guide, Mounting screw |
Input Power | 802.3af/802.3at PoE |
Led Indicators | Yes, indicates power, status, and network activity |
Max. Data Transfer Rate (mbps) | 1000 - 1499 |
Security Protocols | Captive portal, ACL, MAC filtering, client isolation, SSID to VLAN, LAN port VLAN, rogue AP detection, 802.1X EAP, WEP, WPA/WPA2-PSK, WPA/WPA2-Enterpr |
Series or Collection | Omada |
True Color | White |
Warranty Information | 1 Year |
Wifi Range (sq. Ft.) | 300 |
Wifi Standard | WiFi 5 |
Width in Inches | 3.4 |
Wireless Bands | Dual Band |
Wireless Connectivity | 802.11a/b/g/n/ac |
Wireless Standard | AC |
Details
Transform Your Network with TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point Upgrade your connectivity with the TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point. Designed for seamless integration and powerful performance, this access point ensures your network is always at its best. Key Features: High-Speed Dual-Band Wi-Fi: Enjoy fast and reliable Wi-Fi with simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, totaling 1,167 Mbps. Gigabit Connectivity: Four Gigabit Ethernet ports, including one uplink and three access ports, with PoE pass-through for powering devices like phones and cameras. Centralized Management: Manage your network effortlessly with cloud access and the Omada app, providing mobility and ease of use. Elegant Design: Ultra-slim and inconspicuous, this access point blends seamlessly into any environment, from hotel rooms to offices. Easy Installation: Compatible with US, EU, and 86mm junction boxes, and supports PoE for hassle-free setup without additional wiring. Advanced Wireless Technology: Optimize performance with features like airtime fairness, band steering, and beamforming. Guest Network: Offer a smooth and friendly guest experience with multiple login options, including SMS, Facebook Wi-Fi, and customizable captive portals. Robust Security: Protect your network with advanced security protocols, including captive portal, ACL, MAC filtering, and more. Experience the future of networking with the TP-Link Omada AC1200 Dual-Band Wi-Fi 5 Access Point. Perfect for businesses, hotels, hospitals, and more, this access point delivers the performance and reliability you need.
- The TP-Link Omada AC1200 supports Wi-Fi 5 (802.11 a/b/g/n/ac) and functions as an extender, providing robust wireless connectivity for seamless network expansion.
- Utilizing the AC wireless standard, this access point delivers a combined data transfer rate of 1.167 Gbps, with 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- This device operates on dual bands, offering both 2.4 GHz and 5 GHz frequencies to ensure optimal performance and minimal interference for connected devices.
- The access point supports both wireless and Ethernet connectivity, allowing for flexible network integration and reliable data transmission.
- Equipped with four Gigabit Ethernet ports, including one uplink and three access ports, with one port offering PoE pass-through for powering additional devices.
- Features internal antennas with 4 dBi gain for both 2.4 GHz and 5 GHz bands, ensuring strong and stable signal coverage throughout the area.
- Designed as a wall plate, this access point blends seamlessly into any environment, providing a sleek and unobtrusive solution for network expansion.
- Supports MU-MIMO technology, allowing multiple devices to connect simultaneously without compromising on speed or performance, enhancing overall network efficiency.
- Covers an area of up to 300 square feet, providing reliable and consistent Wi-Fi coverage for small to medium-sized spaces such as hotel rooms, offices, and dormitories.
- Comes with a 1-year manufacturer warranty, ensuring peace of mind and reliable support for your networking needs.
