Highlights
View Details- This access point operates on dual wireless bands (2.4 GHz and 5 GHz) and is designed for high-density environments like offices, campuses, retail spaces, hotels, and meeting rooms.
- Supporting the (802.11ax) wireless standard, this access point offers a maximum data transfer rate of 5952 Mbps, including 1148 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band, equating to 5.81 Gbps.
- Supporting PoE+ (802.3at) for power over Ethernet and the Wi-Fi 6 standard, this device offers efficient, high-speed wireless connectivity while being powered through an Ethernet cable.

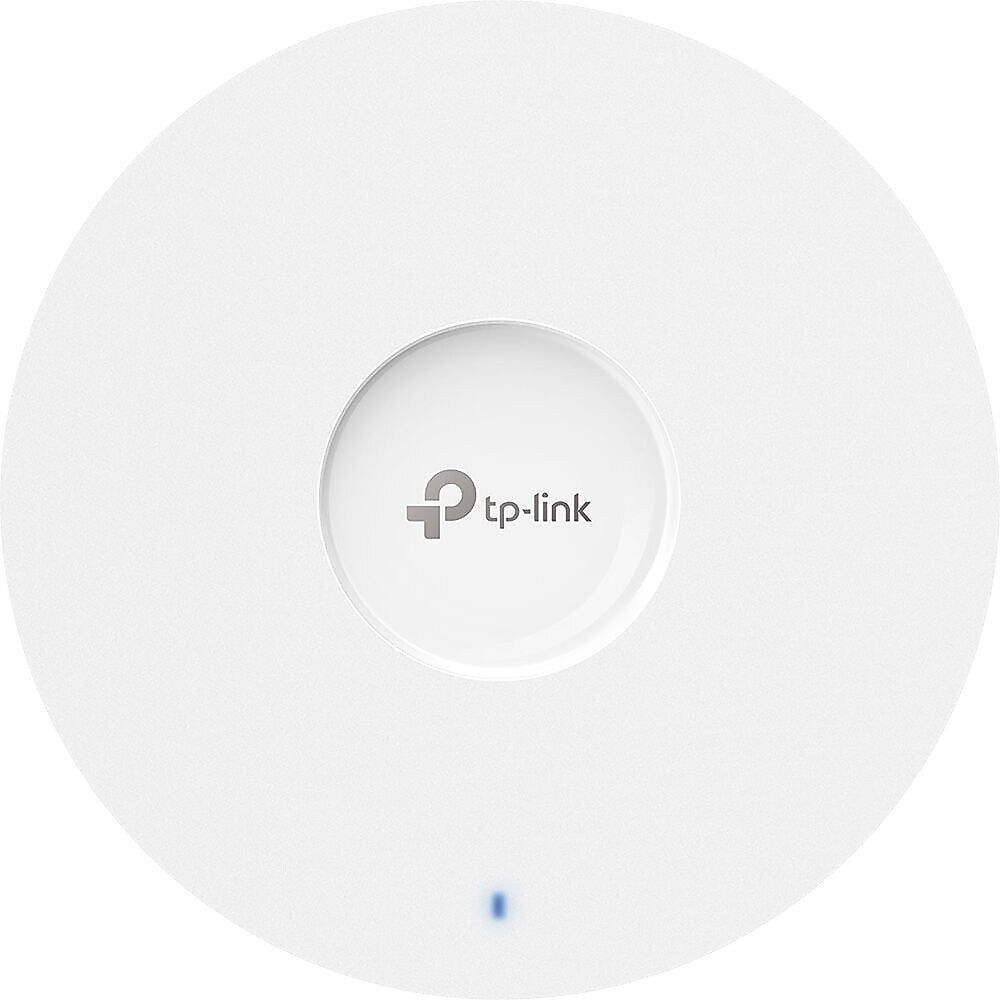

TP-LINK Omada AX5952 Dual Band WiFi 6 Access Point, White (EAP683 UR)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

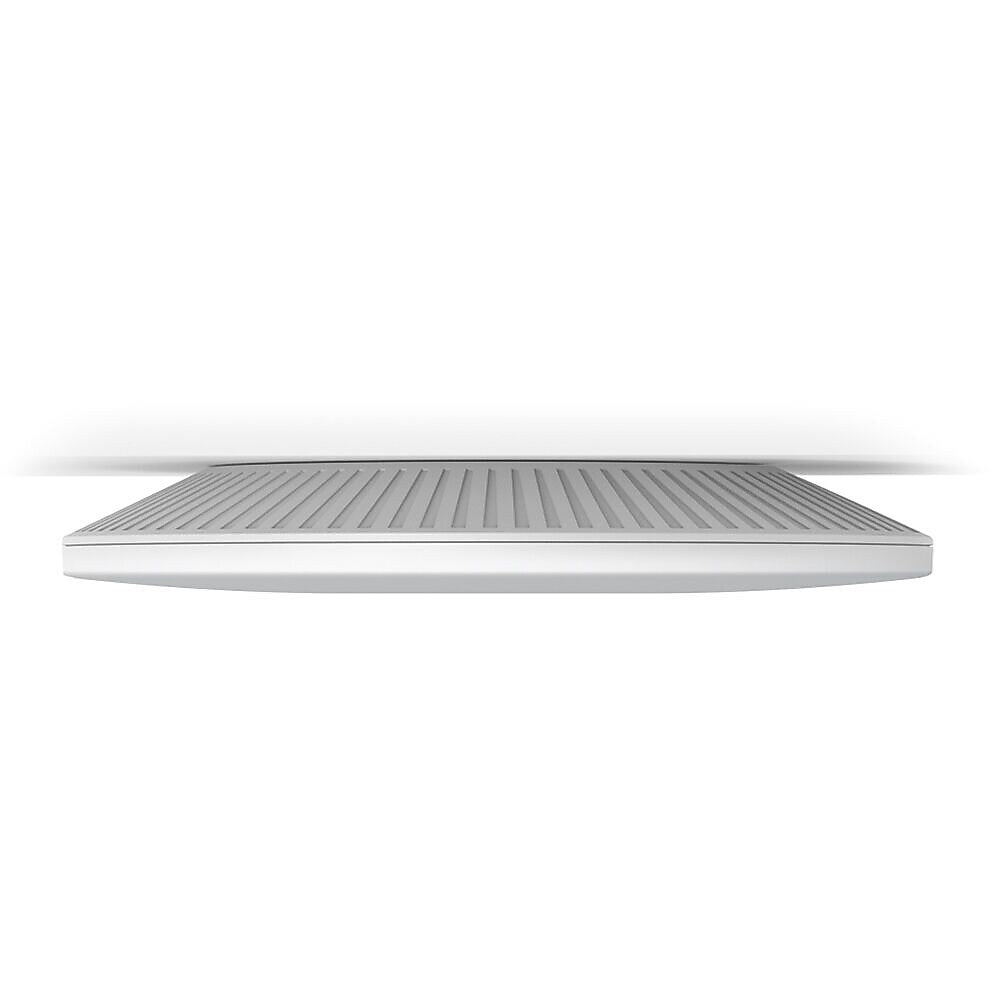

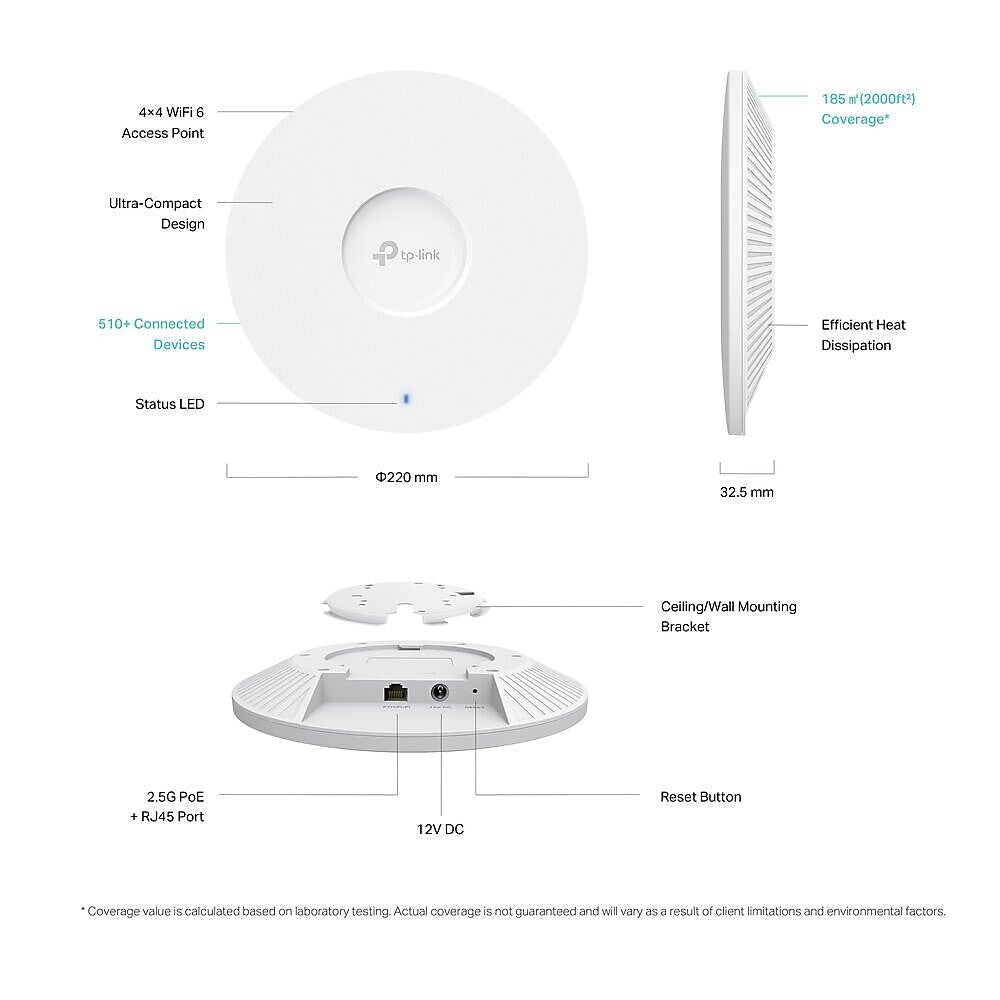

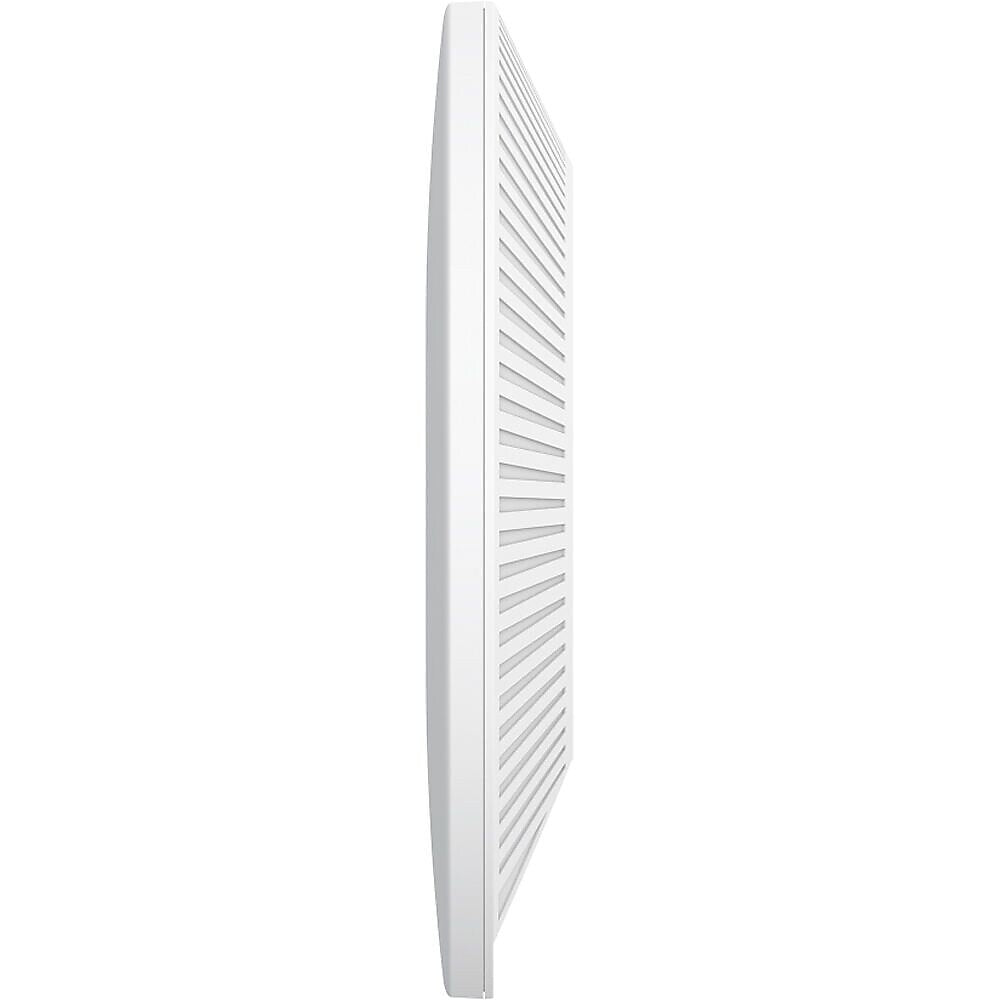

With its slim design, the EAP683 UR AX6000 Dual-Band Wi-Fi 6 Access Point from TP-Link blends in with most environments while delivering fast and reliable coverage.
- This access point operates on dual wireless bands (2.4 GHz and 5 GHz) and is designed for high-density environments like offices, campuses, retail spaces, hotels, and meeting rooms.
- Supporting the (802.11ax) wireless standard, this access point offers a maximum data transfer rate of 5952 Mbps, including 1148 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band, equating to 5.81 Gbps.
- Supporting PoE+ (802.3at) for power over Ethernet and the Wi-Fi 6 standard, this device offers efficient, high-speed wireless connectivity while being powered through an Ethernet cable.

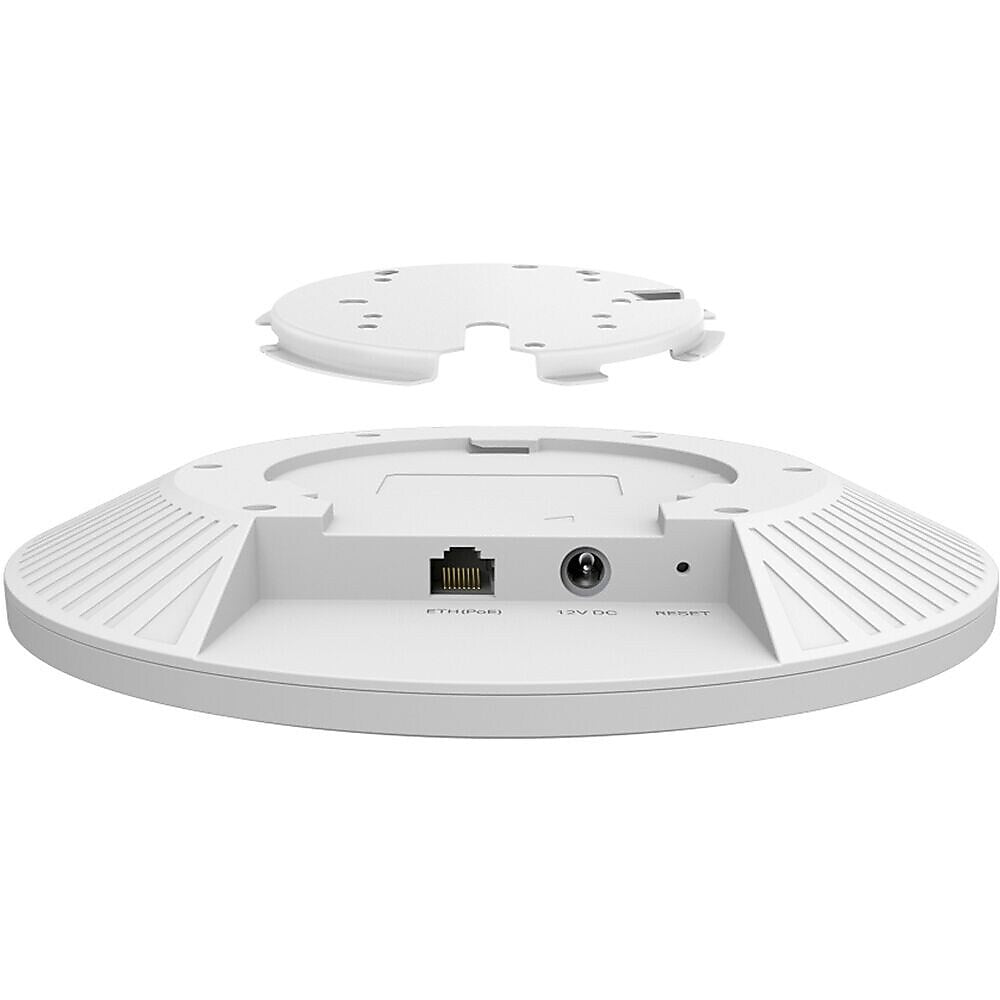

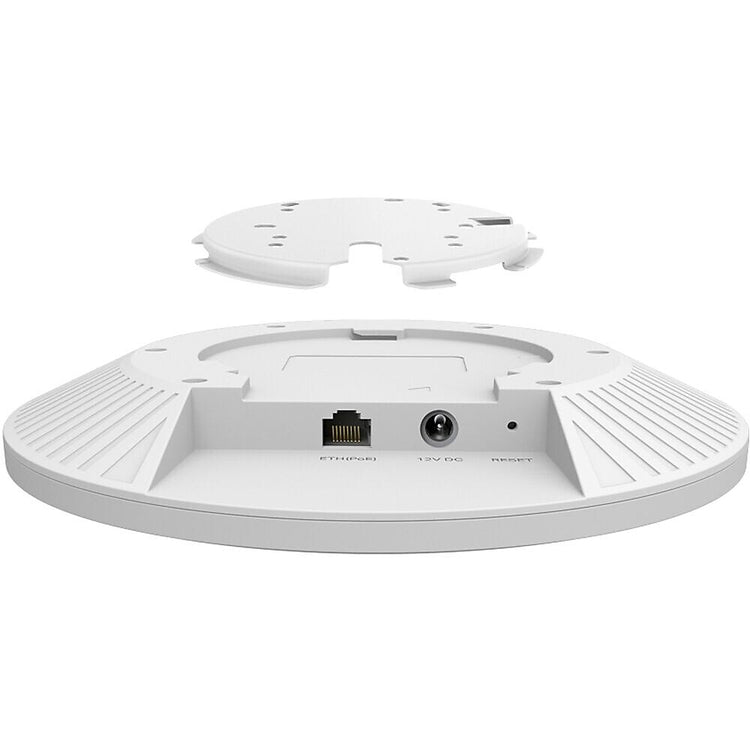

- Featuring a 2.5 Gbps Ethernet port for high-speed wired connectivity, this port supports PoE+ to deliver both data and power through a single Ethernet cable.

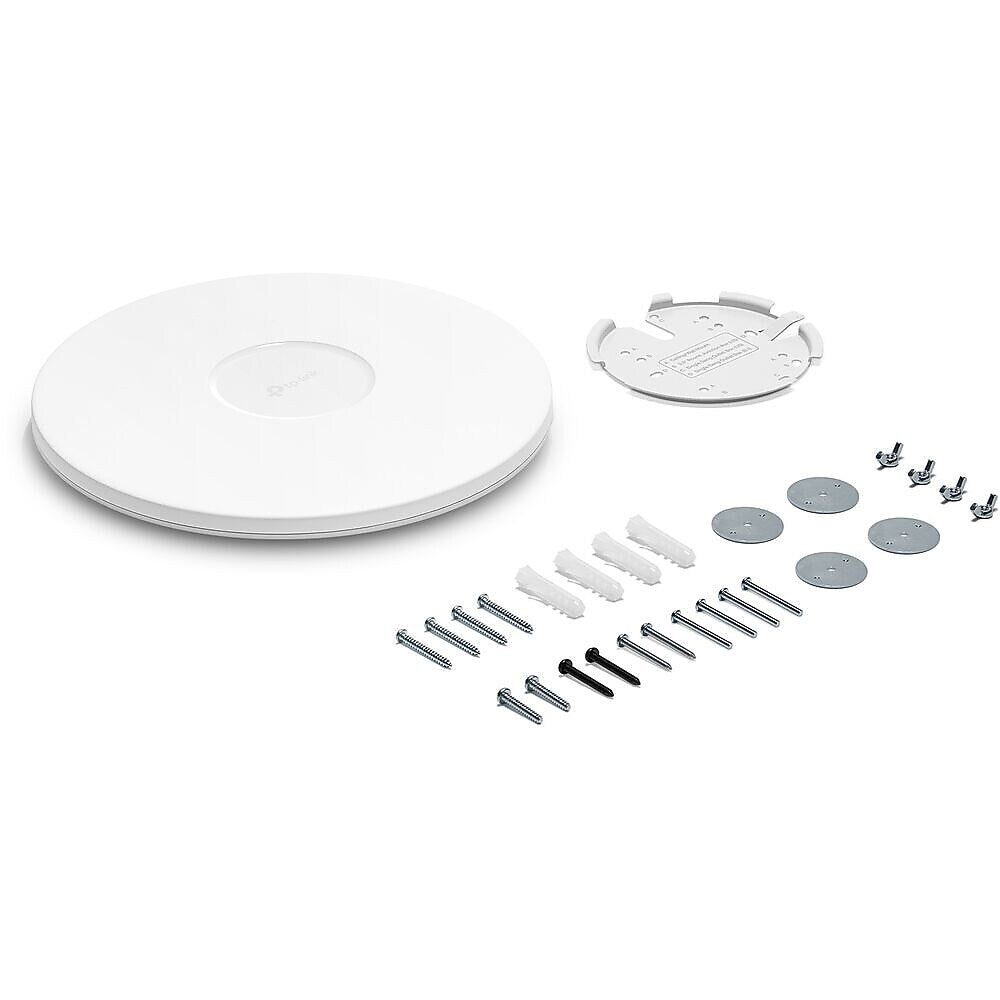

- Included Components: TP-Link EAP683 UR AX6000 Dual-Band Wi-Fi 6 Access Point, Ceiling/Wall Mounting Kits, Installation Guide
- Powered through two methods: PoE+ (Power over Ethernet), which supports the 802.3at standard, and a 12V/2A DC power adapter (adapter not included)
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- Data Encryption feature effectively protects your precious and valuable data from unauthorized access
- Internal antenna form factor for enhanced performance and feasible placement
- Ceiling Mountable form factor offers comfortable usage for a longer duration
- Certifications & Standards: CE,FCC,RoHS
- Comes with a 5-year limited warranty
| Manufacturer # | EAP683 UR |
| Antenna | Internal |
| Brand Name | TP-LINK |
| Compatible Operating System | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Connector, Port or Interface Type(s) | 1 x RJ45, PoE PD Port |
| Data Transfer Rate | 5952 Mbps |
| Data Transfer Rate (gbps) | 5.81 |
| Data Transfer Rate (mbps) | 5952 |
| Depth in Inches | 8.7 |
| Encryption Type | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Frequencies | 2.40Ghz and 5Ghz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Gaming | Non Gaming |
| Height in Inches | 1.3 |
| Included Components | X6000 Dual-Band Wi-Fi 6 Access Point, Ceiling/Wall Mounting Kits, Installation Guide |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Power Source | PoE+ (Power over Ethernet), DC Power |
| Power over Ethernet | Yes |
| Series or Collection | Omada |
| True Color | White |
| Warranty Information | 5 Year |
| Wifi Range (sq. Ft.) | 2000 |
| Wifi Standard | WiFi 6 |
| Width in Inches | 8.7 |
| Wireless Bands | Dual Band |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax |
| Wireless Standard | AX |
Details
With its slim design, the EAP683 UR AX6000 Dual-Band Wi-Fi 6 Access Point from TP-Link blends in with most environments while delivering fast and reliable coverage.
- This access point operates on dual wireless bands (2.4 GHz and 5 GHz) and is designed for high-density environments like offices, campuses, retail spaces, hotels, and meeting rooms.
- Supporting the (802.11ax) wireless standard, this access point offers a maximum data transfer rate of 5952 Mbps, including 1148 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band, equating to 5.81 Gbps.
- Supporting PoE+ (802.3at) for power over Ethernet and the Wi-Fi 6 standard, this device offers efficient, high-speed wireless connectivity while being powered through an Ethernet cable.
- Featuring a 2.5 Gbps Ethernet port for high-speed wired connectivity, this port supports PoE+ to deliver both data and power through a single Ethernet cable.
- Included Components: TP-Link EAP683 UR AX6000 Dual-Band Wi-Fi 6 Access Point, Ceiling/Wall Mounting Kits, Installation Guide
- Powered through two methods: PoE+ (Power over Ethernet), which supports the 802.3at standard, and a 12V/2A DC power adapter (adapter not included)
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- Data Encryption feature effectively protects your precious and valuable data from unauthorized access
- Internal antenna form factor for enhanced performance and feasible placement
- Ceiling Mountable form factor offers comfortable usage for a longer duration
- Certifications & Standards: CE,FCC,RoHS
- Comes with a 5-year limited warranty
