Highlights
View Details- Unmanaged desktop/rackmount Gigabit Ethernet switch for use with wireless access points, IP cameras, IP phones, and other high-powered Ethernet devices
- Features eight 802.3af/at compliant PoE+ ports with a total PoE power budget of 126W
- Backbound bandwidth: 16Gbps

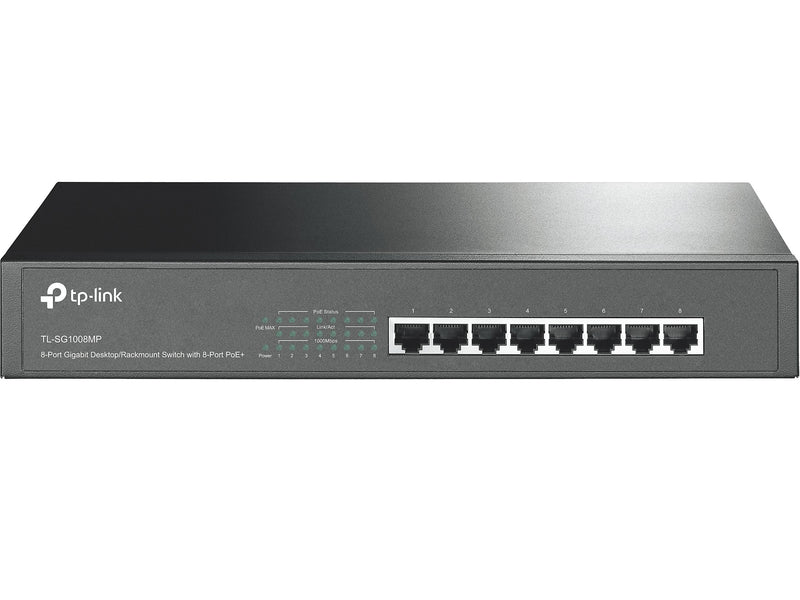

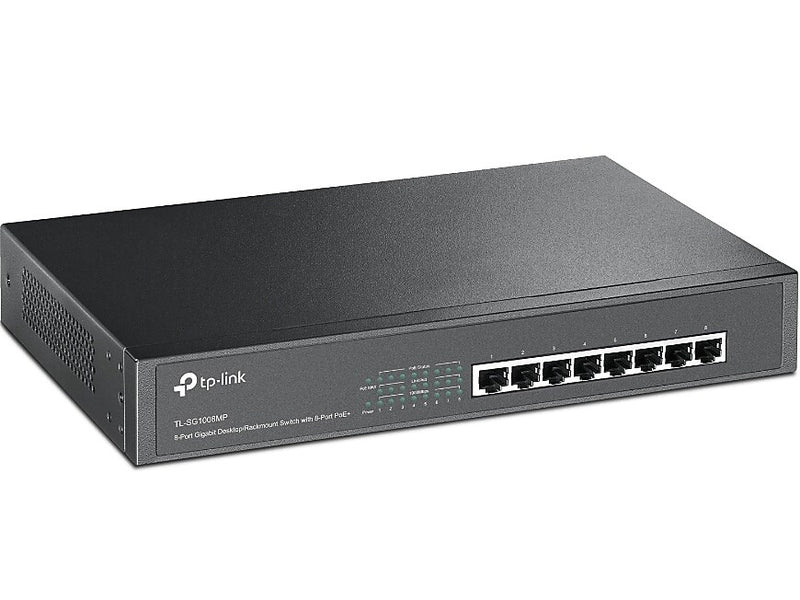

TP-LINK TL-SG1008MP 8-Port Gigabit Ethernet Desktop/Rack-Mountable Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The TP-LINK TL-SG1008MP is an eight-port Gigabit desktop/rack-mountable switch with all eight ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless access points (APs), IP cameras, or IP phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network. This unmanaged switch is easy to install and use. It requires no configuration or installation. With its desktop/rack-mountable design, outstanding performance, and quality, the TP-Link TL-SG1008MP Gigabit Ethernet switch is a great choice for expanding your home or office network.
- Unmanaged desktop/rackmount Gigabit Ethernet switch for use with wireless access points, IP cameras, IP phones, and other high-powered Ethernet devices
- Features eight 802.3af/at compliant PoE+ ports with a total PoE power budget of 126W
- Backbound bandwidth: 16Gbps
- Dimensions: 1.7"H x 11.6"W x 7.1"D
- Maximum power consumption: 9.89W (220V/50Hz, no PD connected) and 144.36W (110V/60Hz. with 126W PD connected)
- Certifications and standards: Meets or exceeds FCC and RoHS standards
- Mounting: 13" and 19" 1U rack mountable
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs
- 16KB jumbo frame improves performance of large data transfer
- IEEE 802.3x flow control provides reliable data transfer
- 802.1p and DSCP QoS ensure smooth traffic
- IGMP snooping optimizes multicast applications
- Auto MDI/MDIX eliminates the need for crossover cables, while auto-negotiation intelligently adjusts for compatibility and optimal performance
- Advanced features: port priority function, MAC address auto-learning and auto-aging, IEEE802.3x flow control
- Network media (cable) support: 10Base-T: UTP category 3, 4, 5 cable, EIA/TIA-568 100_STP; 100Base-TX: UTP category 5, 5e, or above cable, EIA/TIA-568 100_STP; 1000Base-T: UTP category 5, 5e, or above cable, EIA/TIA-568 100_STP
- Environment: 32 to 104 degrees Fahrenheit operating temperature; -40 to 158 degrees Fahrenheit storage temperature; 10-90% non-condensing operating humidity; 5-90% non-condensing storage humidity
- Package contents: switch, power cord, rubber feet, rackmount kit, and installation guide
- 5-year manufacturer limited warranty
| Manufacturer # | TLSG1008MP |
| Address Database Size | 4000 |
| Amperage (amps) | 2 |
| Auto-detecting | Yes |
| Auto-sensing | Yes |
| Brand Name | TP-LINK |
| Data Rate Performances | 16 Gbps Switching Capacity |
| Depth in Inches | 7.1 |
| Full-duplex | No |
| Gaming | Non Gaming |
| Height in Inches | 1.7 |
| Input Voltage | 100-240VAC |
| Jumbo Frame | 16KB |
| Lacp | No |
| Layer | No |
| Module Support | Auto MDI/MDIX Crossover |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 8 |
| Performance Class | Gigabit Ethernet |
| Power over Ethernet | Yes |
| Quality of Service | Yes |
| Snmp | No |
| Switch Form Factor | Desktop, Rack Mountable |
| True Color | Black |
| Vlan Support | No |
| Warranty Information | 5 Year |
| Width in Inches | 11.6 |
Details
The TP-LINK TL-SG1008MP is an eight-port Gigabit desktop/rack-mountable switch with all eight ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless access points (APs), IP cameras, or IP phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network. This unmanaged switch is easy to install and use. It requires no configuration or installation. With its desktop/rack-mountable design, outstanding performance, and quality, the TP-Link TL-SG1008MP Gigabit Ethernet switch is a great choice for expanding your home or office network.
- Unmanaged desktop/rackmount Gigabit Ethernet switch for use with wireless access points, IP cameras, IP phones, and other high-powered Ethernet devices
- Features eight 802.3af/at compliant PoE+ ports with a total PoE power budget of 126W
- Backbound bandwidth: 16Gbps
- Dimensions: 1.7"H x 11.6"W x 7.1"D
- Maximum power consumption: 9.89W (220V/50Hz, no PD connected) and 144.36W (110V/60Hz. with 126W PD connected)
- Certifications and standards: Meets or exceeds FCC and RoHS standards
- Mounting: 13" and 19" 1U rack mountable
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs
- 16KB jumbo frame improves performance of large data transfer
- IEEE 802.3x flow control provides reliable data transfer
- 802.1p and DSCP QoS ensure smooth traffic
- IGMP snooping optimizes multicast applications
- Auto MDI/MDIX eliminates the need for crossover cables, while auto-negotiation intelligently adjusts for compatibility and optimal performance
- Advanced features: port priority function, MAC address auto-learning and auto-aging, IEEE802.3x flow control
- Network media (cable) support: 10Base-T: UTP category 3, 4, 5 cable, EIA/TIA-568 100_STP; 100Base-TX: UTP category 5, 5e, or above cable, EIA/TIA-568 100_STP; 1000Base-T: UTP category 5, 5e, or above cable, EIA/TIA-568 100_STP
- Environment: 32 to 104 degrees Fahrenheit operating temperature; -40 to 158 degrees Fahrenheit storage temperature; 10-90% non-condensing operating humidity; 5-90% non-condensing storage humidity
- Package contents: switch, power cord, rubber feet, rackmount kit, and installation guide
- 5-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
