Highlights
View Details- Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Suitable for use with PC

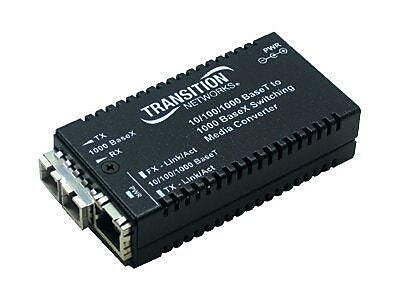

Transition Networks® M/GE-PSW-SX-01 2 Port RJ45 to SC Mini Gigabit Ethernet Media Converter
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Transition Networks® 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross™ feature in this media converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration.
- Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Suitable for use with PC
- Comes in black color
- Interfaces/ports: One 10/100/1000Base-T RJ-45, one multi mode SC
- Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W
- LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link
- IEEE standards: IEEE 802.3
- Frame size: 1632 bytes untagged, 1628 bytes tagged
- Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing
- Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards
- Weight: 2 lbs.
- Comes with lifetime warranty
| Manufacturer # | M/GEPSWSX01NA |
| Brand Name | Transition Networks |
| Direct Attach Cable (dac) | No |
Details
The Transition Networks® 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross™ feature in this media converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration.
- Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Suitable for use with PC
- Comes in black color
- Interfaces/ports: One 10/100/1000Base-T RJ-45, one multi mode SC
- Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W
- LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link
- IEEE standards: IEEE 802.3
- Frame size: 1632 bytes untagged, 1628 bytes tagged
- Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing
- Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards
- Weight: 2 lbs.
- Comes with lifetime warranty
