Highlights
View Details- Stand-alone media/rate converter is a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment
- Dimensions: 1"H x 3.25"W x 4.8"D
- Suitable for use with PC

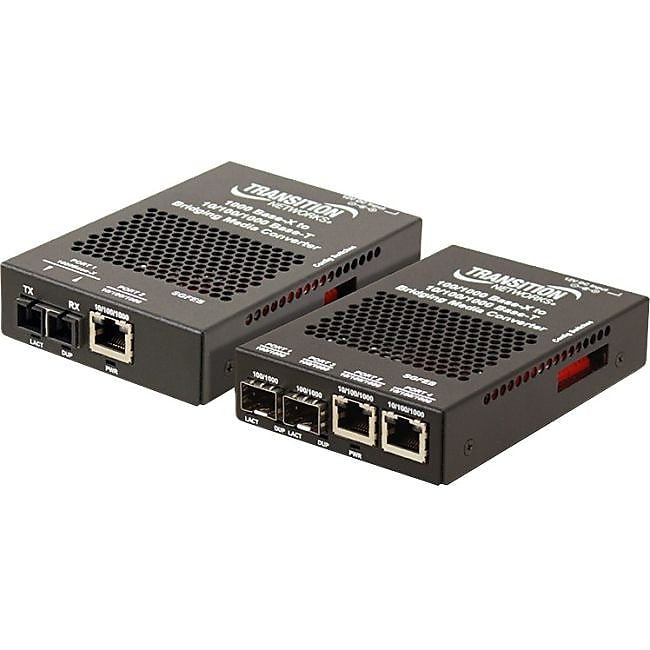

Transition Networks® SGFEB1040-130 1 Port RJ45 to SFP Stand Alone Fast Ethernet Media/Rate Converter
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Transition Networks® SGFEB1040-130-NA 1-port RJ-45 to SFP standalone fast Ethernet media/rate converter features auto negotiation, autocross, link pass through, far end fault and remote fault detect for efficient troubleshooting. It supports multimode or single mode fiber and IEEE802.3az Ethernet. This converter offers data rate of 10/100/1000 Mbps for copper and 1000 Mbps for fiber.
- Stand-alone media/rate converter is a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment
- Dimensions: 1"H x 3.25"W x 4.8"D
- Suitable for use with PC
- Comes in black color
- Interfaces/ports: One 10/100/1000Base-T RJ-45, one 100/1000Base-X SFP slot
- Power supply: 7.5 - 24 VDC, provided by wide input AC wall mount adapter, Consumption: 2.2 W
- LEDs: PWR (power), LACT (fiber link/activity), RJ-45 upper left (green/amber), RJ-45 upper right (speed)
- Data rates: 10/100/1000 Mbps (copper), 1000Mbps, 100Mbps also supported via SFP port (fiber)
- Form factor: Rack-mountable, wall mountable, rail-mountable, desktop
- IEEE standards: IEEE 802.3, 802.3ab, 802.3u, 802.3z, 802.3az, Switches: Auto-negotiation enable/disable, link pass through enable/disable
- Frame size: 10260 byte jumbo frames, RAM buffer: 512KB, MAC addresses: 8K
- Features auto-MDI/MDIX, auto-negotiation, link pass through, far-end-fault (FEF) detection and remote fault detect
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing
- Meets EN55022 Class A, EN55024, FCC Class A, CE Mark, UL, UL60950, CSA certifications and standards
- Weight: 2 lbs.
- Comes with lifetime warranty
| Manufacturer # | SGFEB1040130NA |
| Brand Name | Transition Networks |
| Direct Attach Cable (dac) | No |
Details
The Transition Networks® SGFEB1040-130-NA 1-port RJ-45 to SFP standalone fast Ethernet media/rate converter features auto negotiation, autocross, link pass through, far end fault and remote fault detect for efficient troubleshooting. It supports multimode or single mode fiber and IEEE802.3az Ethernet. This converter offers data rate of 10/100/1000 Mbps for copper and 1000 Mbps for fiber.
- Stand-alone media/rate converter is a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment
- Dimensions: 1"H x 3.25"W x 4.8"D
- Suitable for use with PC
- Comes in black color
- Interfaces/ports: One 10/100/1000Base-T RJ-45, one 100/1000Base-X SFP slot
- Power supply: 7.5 - 24 VDC, provided by wide input AC wall mount adapter, Consumption: 2.2 W
- LEDs: PWR (power), LACT (fiber link/activity), RJ-45 upper left (green/amber), RJ-45 upper right (speed)
- Data rates: 10/100/1000 Mbps (copper), 1000Mbps, 100Mbps also supported via SFP port (fiber)
- Form factor: Rack-mountable, wall mountable, rail-mountable, desktop
- IEEE standards: IEEE 802.3, 802.3ab, 802.3u, 802.3z, 802.3az, Switches: Auto-negotiation enable/disable, link pass through enable/disable
- Frame size: 10260 byte jumbo frames, RAM buffer: 512KB, MAC addresses: 8K
- Features auto-MDI/MDIX, auto-negotiation, link pass through, far-end-fault (FEF) detection and remote fault detect
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing
- Meets EN55022 Class A, EN55024, FCC Class A, CE Mark, UL, UL60950, CSA certifications and standards
- Weight: 2 lbs.
- Comes with lifetime warranty
| Attribute Name | Attribute Value |
|---|
