Highlights
View Details- Eight-port 10/100/1000BASE-T switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks
- Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations
- Power consumption: 3.5W

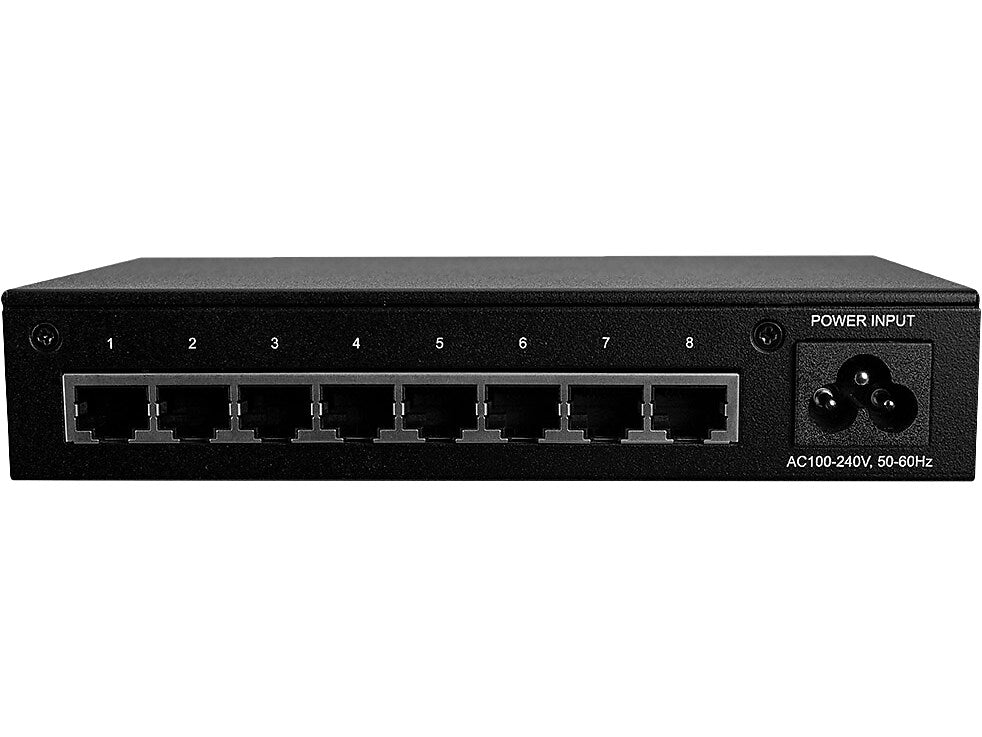

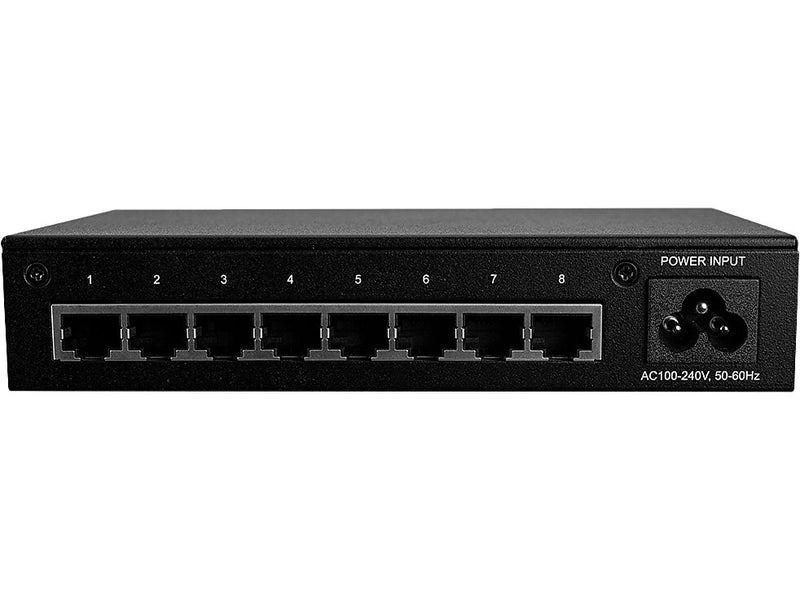

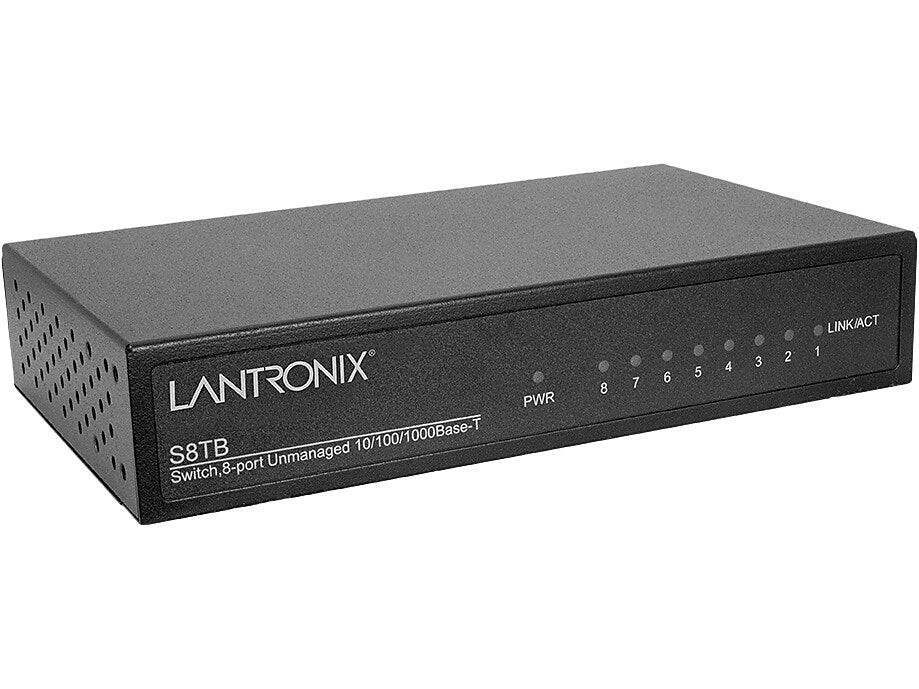

Transition Networks Lantronix 8-Port Gigabit Ethernet Unmanaged Switch, 1 Gbps, Black (S8TB-NA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This Transition Networks Lantronix eight 10/100/1000Base-T port switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks. This switch is a store-and-forward device that offers low latency for high speed networking. It is designed for the core of the network backbone computing environment to solve traffic block problems at SME (small, medium enterprise) businesses.
- Eight-port 10/100/1000BASE-T switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks
- Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations
- Power consumption: 3.5W
- Meets or exceeds the LVD, FCC, CE, and UL standards
- Supports full and half duplex for 10/100Mbps and full duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Supports jumbo frames up to 9KB
- 5-year manufacturer limited warranty
| Manufacturer # | S8TBNA |
| Address Database Size | 8000 |
| Brand Name | Transition Networks |
| Buffer Memory | 128KB |
| Data Transfer Rate | 1 Gbps |
| Data Transfer Rate (gbps) | 16 |
| Data Transfer Rate (mbps) | 16000 |
| Depth in Inches | 6.3 |
| Full-duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 1.28 |
| Jumbo Frame | 9KB |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 8 |
| Performance Class | Gigabit Ethernet |
| Series or Collection | Lantronix |
| Stackable | Stackable |
| Switch Form Factor | Desktop |
| True Color | Black |
| Warranty Information | 5 Year |
| Weight (lbs.) | 1.35 |
| Width in Inches | 3.94 |
Details
This Transition Networks Lantronix eight 10/100/1000Base-T port switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks. This switch is a store-and-forward device that offers low latency for high speed networking. It is designed for the core of the network backbone computing environment to solve traffic block problems at SME (small, medium enterprise) businesses.
- Eight-port 10/100/1000BASE-T switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks
- Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations
- Power consumption: 3.5W
- Meets or exceeds the LVD, FCC, CE, and UL standards
- Supports full and half duplex for 10/100Mbps and full duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Supports jumbo frames up to 9KB
- 5-year manufacturer limited warranty
