Highlights
View Details- Input voltage: 120 VAC (110 - 125 VAC)
- Input connection: NEMA 5 15P input plug
- 8' cord

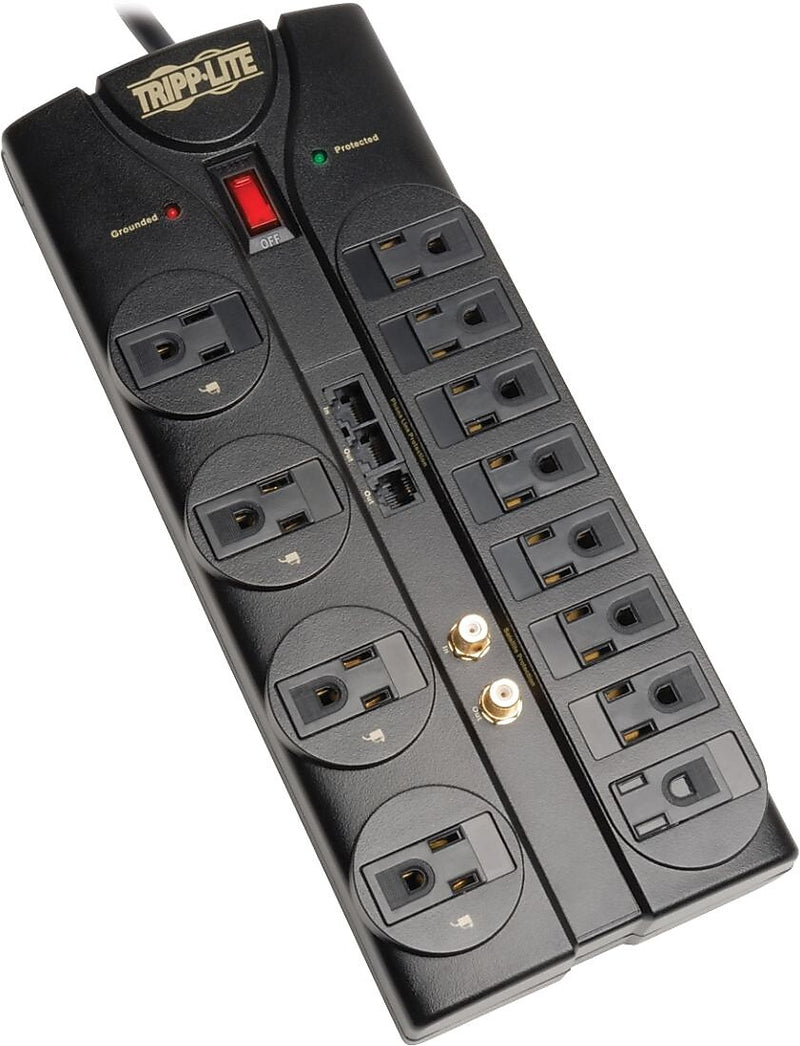

Tripp Lite 12 Outlet Surge Suppressor, 8' Cord, 2880 Joules (TLP1208SAT)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Power: 50/60 Hz, 15 A line current/216 kA surge current, 2880 J surge energy rating, 150 V RMS clamping
- Input voltage: 120 VAC (110 - 125 VAC)
- Input connection: NEMA 5 15P input plug
- 8' cord
- Dimensions: 1.54"(H) x 2.72"(W) x 10.3"(D)
- Receptacles: 12 x NEMA 5 15R
- Power: 50/60 Hz, 15 A line current/216 kA surge current, 2880 J surge energy rating, 150 V RMS clamping
- Form factor: Wall mountable
- Material: Plastic
- Protection mode: Full normal mode (H N) and co common mode (N G/H G) line surge suppression
- Supports 4 large transformers plug accessories without covering remaining outlets, built in sliding outlet safety covers, built in LEDs confirm suppressor protection present (green) and grounded (red) status
- Up to 40 dB EMI/RFI noise filtering, combination AC circuit breaker and 2 position red illuminated on/off power switch, audible alarm sounds to indicate damage to suppression components
- 15A circuit breaker, 14 AWG gauge and SJT cord, strip style, single row of 8, plus a second row of 4 for transformer accommodation , space saving right angle input plug, lighted power switch
- Distance between standard outlets 25.4 mm, distance between transformer outlets 57 mm, distance between horizontal tabs 75 mm, distance between vertical tabs 41.6 mm
- Applications personal computers, modems, CAD/CAM/CAE workstations, network nodes, fileservers, point of sale terminals, audio/visual devices and more
- Includes: TLP1208SAT surge suppressor, 6' telephone cord, 6' network cable, 6' coax cable, instruction manual with warranty information
- Standards and certificates: UL 1449 3rd edition, UL 1363/497A, IEEE 587, RoHS, cUL, green compliant, FCC part 68
- Weight: 2.02 lbs.
- Warranty: Lifetime limited
Details
Power: 50/60 Hz, 15 A line current/216 kA surge current, 2880 J surge energy rating, 150 V RMS clamping
- Input voltage: 120 VAC (110 - 125 VAC)
- Input connection: NEMA 5 15P input plug
- 8' cord
- Dimensions: 1.54"(H) x 2.72"(W) x 10.3"(D)
- Receptacles: 12 x NEMA 5 15R
- Power: 50/60 Hz, 15 A line current/216 kA surge current, 2880 J surge energy rating, 150 V RMS clamping
- Form factor: Wall mountable
- Material: Plastic
- Protection mode: Full normal mode (H N) and co common mode (N G/H G) line surge suppression
- Supports 4 large transformers plug accessories without covering remaining outlets, built in sliding outlet safety covers, built in LEDs confirm suppressor protection present (green) and grounded (red) status
- Up to 40 dB EMI/RFI noise filtering, combination AC circuit breaker and 2 position red illuminated on/off power switch, audible alarm sounds to indicate damage to suppression components
- 15A circuit breaker, 14 AWG gauge and SJT cord, strip style, single row of 8, plus a second row of 4 for transformer accommodation , space saving right angle input plug, lighted power switch
- Distance between standard outlets 25.4 mm, distance between transformer outlets 57 mm, distance between horizontal tabs 75 mm, distance between vertical tabs 41.6 mm
- Applications personal computers, modems, CAD/CAM/CAE workstations, network nodes, fileservers, point of sale terminals, audio/visual devices and more
- Includes: TLP1208SAT surge suppressor, 6' telephone cord, 6' network cable, 6' coax cable, instruction manual with warranty information
- Standards and certificates: UL 1449 3rd edition, UL 1363/497A, IEEE 587, RoHS, cUL, green compliant, FCC part 68
- Weight: 2.02 lbs.
- Warranty: Lifetime limited
