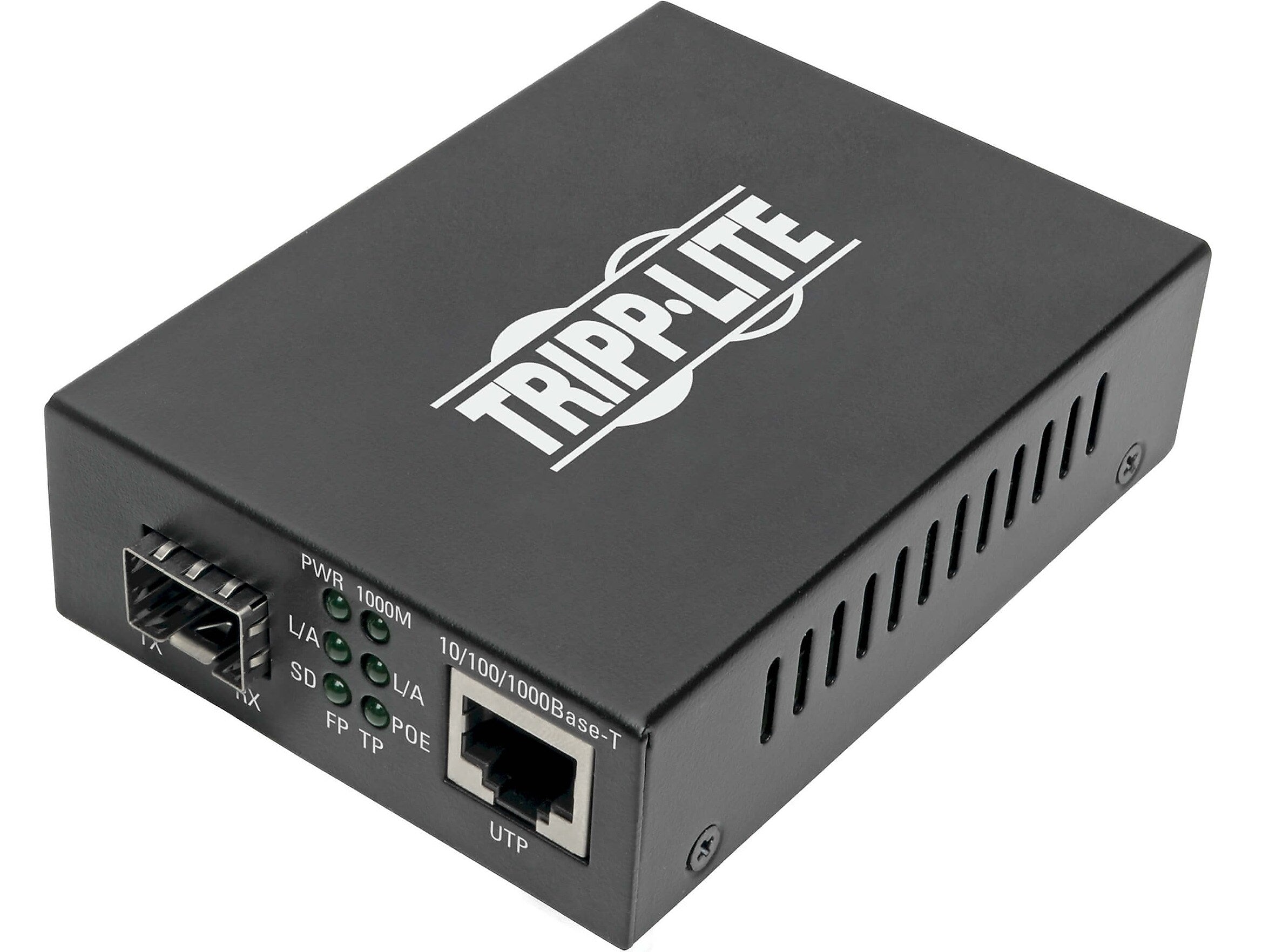

Tripp Lite N785-P01-SFP Gigabit SFP Fiber to Ethernet Media Converter

This media converter by Tripp Lite converts a single-mode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks, and access control devices.

• Customizable media converter extends power and data to a PoE+ device via fiber cable
• Dimensions: 0.98"H x 3.74"W x 2.76"D
• Network compatibility: 10/100/1000 Mbps Gigabit Ethernet network

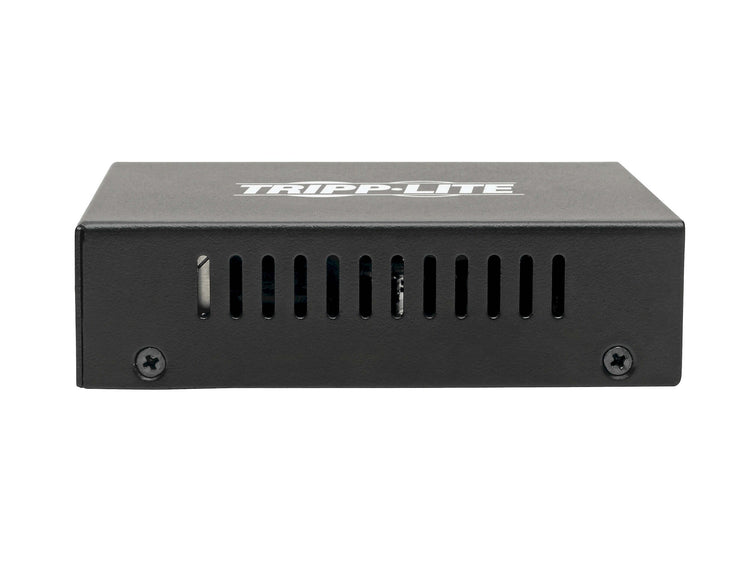

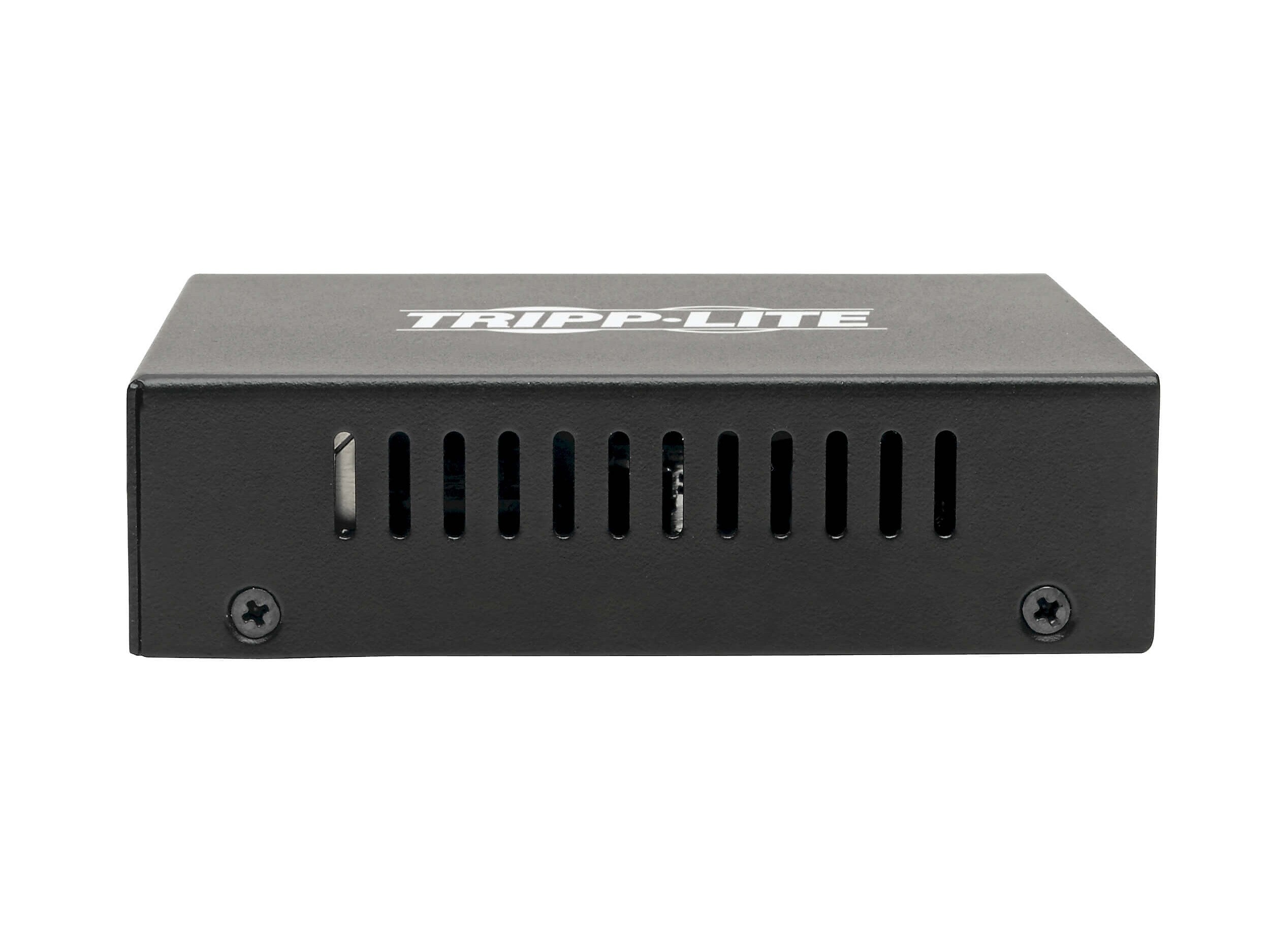

• Features a compact black metal housing
• PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device
• Supports auto-sensing of network speed and other advanced functions, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration
• Supports both full- and half-duplex operation

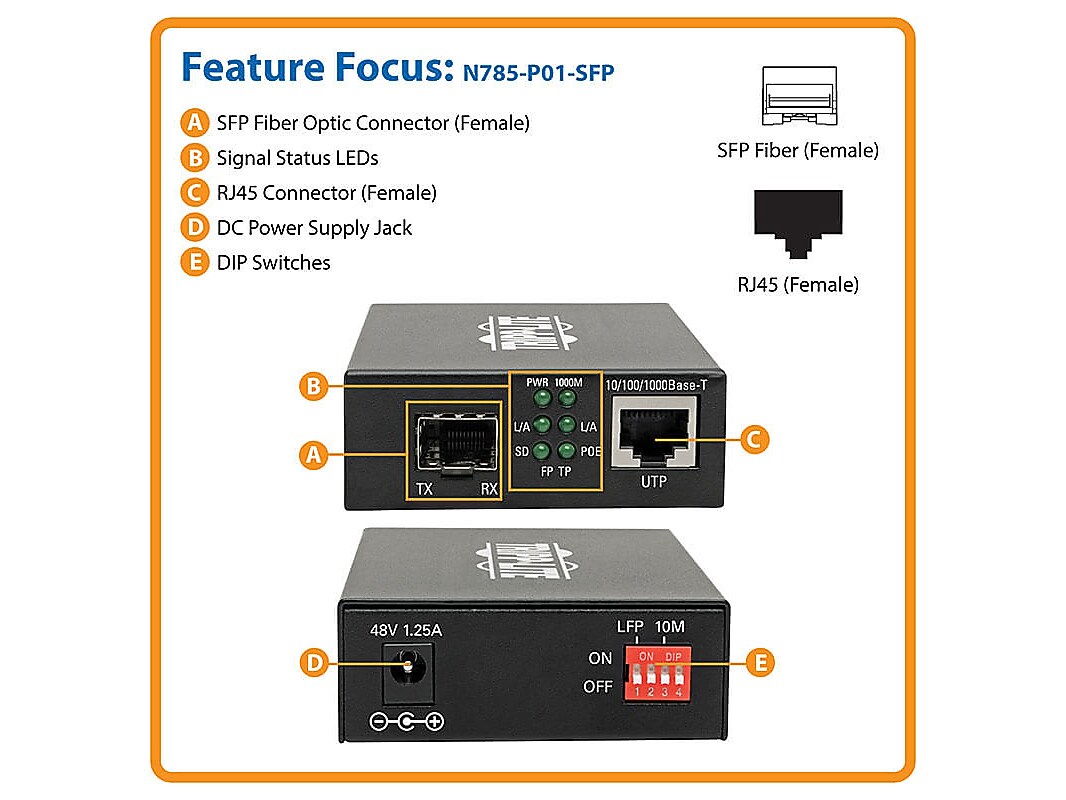

• Customizable SFP port supports both 1G single- and multimode transceivers
• RJ45 jack supports auto MDI/MDI-X to bridge various network devices

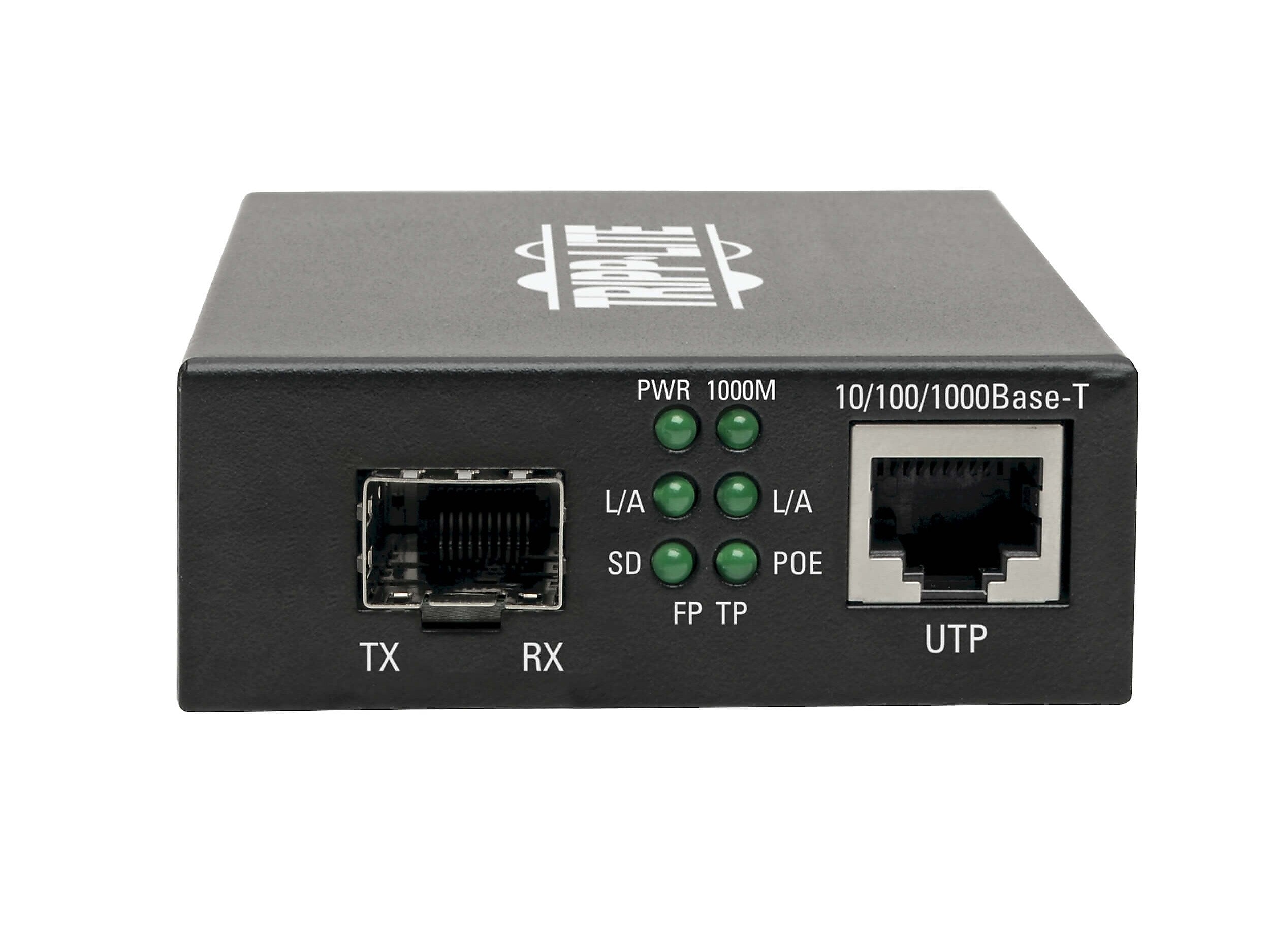

• Six LEDs indicate the converter's power, PoE, Ethernet network, and fiber link statuses at a glance
• Completely plug-and-play with no additional software required for connection
• The included power supply connects to a convenient AC outlet with no computer or other signal source needed
• Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately)

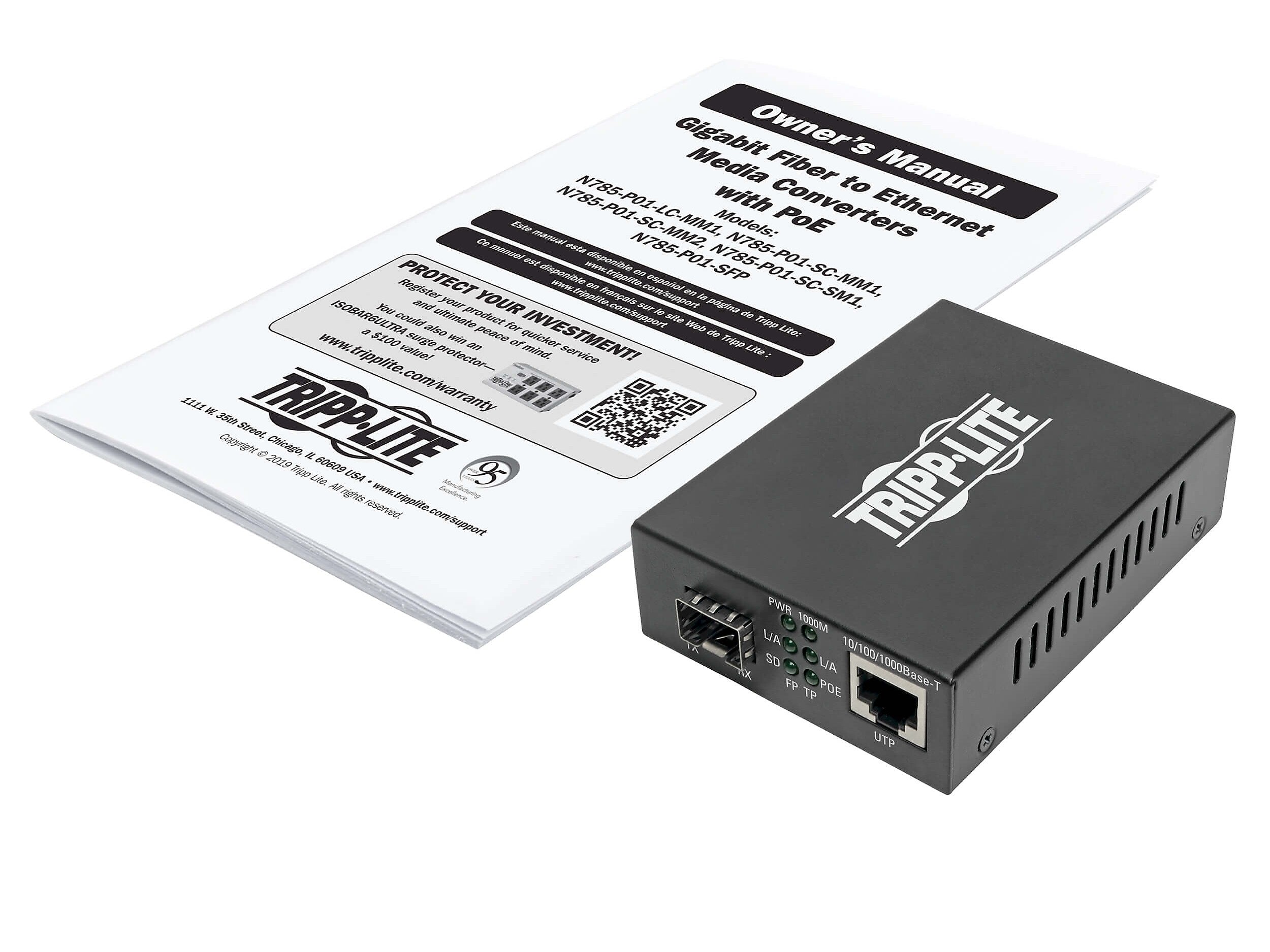

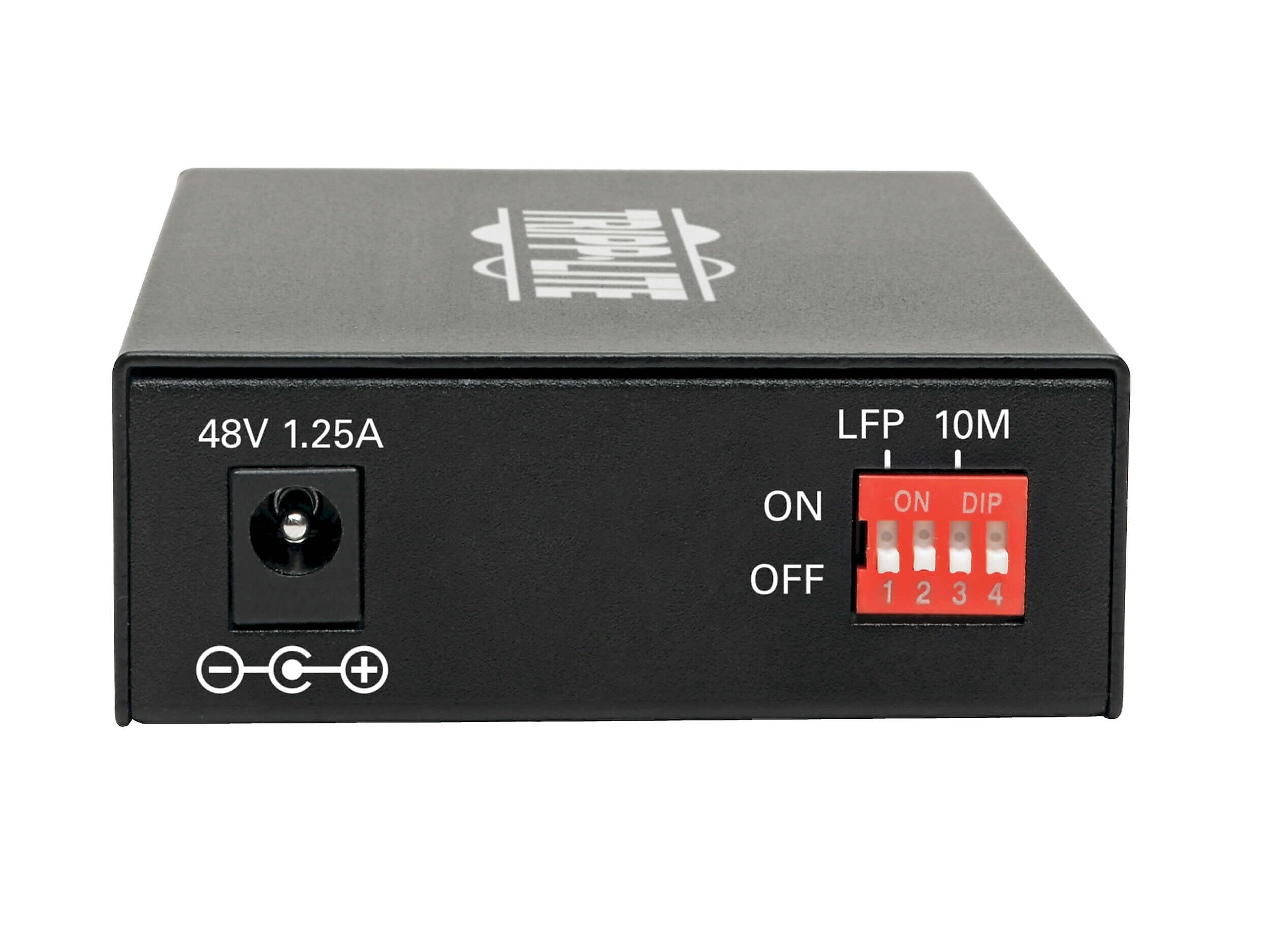

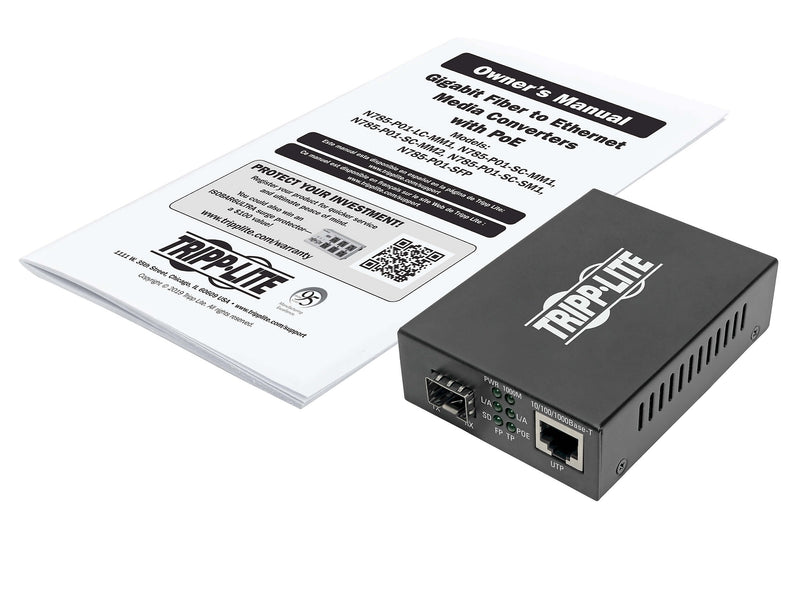

• Pack includes: media converter, external power supply with 3.6' cord and NEMA 5-15P plug (input: 100-240V, 50/60 Hz, 1.5A; output: 48V 1.25A), and owner's manual
• Meets or exceeds FCC and RoHS standards
• 2-year manufacturer limited warranty
