Highlights
View Details- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 3 1/2"(H) x 17 1/2"(W) x 12 1/2"(D)
- Metal construction for long lasting durability

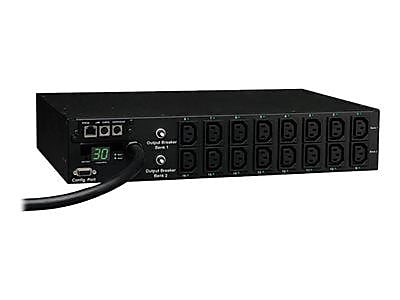

Tripp Lite Single-Phase 208/240 V Switched Power Distribution Unit, 16-Outlet, 2U Rack Mount, Black (PDUMH30HVNET)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite PDUMH30HVNET 5.8 kW single-phase digital switched metered PDU supports 30 A maximum capacity at 208/240 V. It features L6-30P input plug and 16 C13 switched outlets arranged in two separately breakered eight outlet banks. Visual and remote current monitoring of this PDU, tracks the current for each eight outlet bank separately. This 2U rackmount PDU comes with cord retention bracket to plug and power vital network equipment. It provides advanced network control and monitoring with turn on/off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions as well as remotely monitor output power consumption.
- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 3 1/2"(H) x 17 1/2"(W) x 12 1/2"(D)
- Metal construction for long lasting durability
- Receptacles: one NEMA L6-30P input and 16 x IEC 320 EN 60320 C13 output
- Voltage: 208/240 VAC input/output at 50/60 Hz, Input current: 30 A
- Output capacity: 5.8 kW
- Input cord length: 12'
- Form factor: Horizontal (1U, 2U)
- Offers overload protection
- Front panel LEDs: 16 power availability LEDs confirm power off/on status for each built-in outlet
- Storage temperature: 5 - 122 deg F (-15 - 50 deg C), Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'
- Offers programmable or real-time outlet power control via built-in web/network monitoring and control card
- Management: Protocols- HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP
- The 2U rack mount switched PDU has digital current monitoring, remote control and temperature/humidity monitoring capability
- Assures ability to turn on, turn off, recycle or lock-out power to each individual outlet easily
- Contains rackmount PDU and 4-post compatible mounting brackets
- Meets UL 60950-1 (USA, Canada), Class A (Emissions), RoHS, TAA and NOM (Mexico) standards or certifications
- Weight: 13.8 lbs.
- Comes with 2 years limited warranty
| Manufacturer # | PDUMH30HVNET |
| Brand Name | Tripp Lite |
| Cable Length (ft.) | 12 |
| Depth in Inches | 12.5 |
| Height in Inches | 3.5 |
| Input Current | 30 A |
| Input Voltage | 208/240 VAC |
| Load Capacity | 5.8 kW |
| Outlet Count | 16 |
| Output Frequency | 50/60 Hz |
| Overload Protection | Yes |
| Phase | Single-Phase |
| Power Distribution Unit Type | Switched |
| Rack Units | 2U |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 13.8 |
| Width in Inches | 17.5 |
Details
The Tripp Lite PDUMH30HVNET 5.8 kW single-phase digital switched metered PDU supports 30 A maximum capacity at 208/240 V. It features L6-30P input plug and 16 C13 switched outlets arranged in two separately breakered eight outlet banks. Visual and remote current monitoring of this PDU, tracks the current for each eight outlet bank separately. This 2U rackmount PDU comes with cord retention bracket to plug and power vital network equipment. It provides advanced network control and monitoring with turn on/off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions as well as remotely monitor output power consumption.
- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 3 1/2"(H) x 17 1/2"(W) x 12 1/2"(D)
- Metal construction for long lasting durability
- Receptacles: one NEMA L6-30P input and 16 x IEC 320 EN 60320 C13 output
- Voltage: 208/240 VAC input/output at 50/60 Hz, Input current: 30 A
- Output capacity: 5.8 kW
- Input cord length: 12'
- Form factor: Horizontal (1U, 2U)
- Offers overload protection
- Front panel LEDs: 16 power availability LEDs confirm power off/on status for each built-in outlet
- Storage temperature: 5 - 122 deg F (-15 - 50 deg C), Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'
- Offers programmable or real-time outlet power control via built-in web/network monitoring and control card
- Management: Protocols- HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP
- The 2U rack mount switched PDU has digital current monitoring, remote control and temperature/humidity monitoring capability
- Assures ability to turn on, turn off, recycle or lock-out power to each individual outlet easily
- Contains rackmount PDU and 4-post compatible mounting brackets
- Meets UL 60950-1 (USA, Canada), Class A (Emissions), RoHS, TAA and NOM (Mexico) standards or certifications
- Weight: 13.8 lbs.
- Comes with 2 years limited warranty
