Highlights

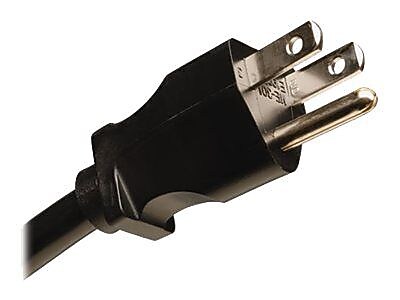

View Details- Single phase NEMA 5-15P 15' 15 A 120 V nominal input
- 120 V 50/60 Hz output
- Outlet connector: 13 NEMA 5-15R

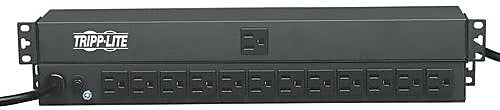

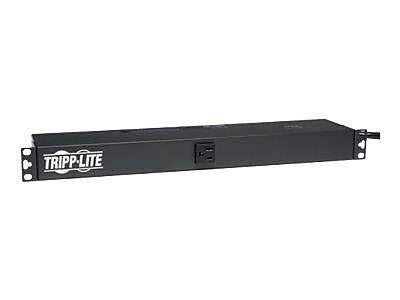

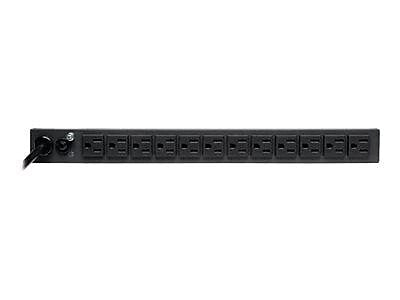

Tripp Lite Single-Phase Basic Power Distribution Unit, 13-Outlet, 1U Rack Mount, Black (PDU1215)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Tripp Lite Single phase basic power distribution unit has NEMA 5-15P enclosure to offer added protection and can be 1U/0U vertical rack mounted. Unit has NEMA 5-15R outlet connector and offers 15 A overload protection.
- Single phase NEMA 5-15P 15' 15 A 120 V nominal input
- 120 V 50/60 Hz output
- Outlet connector: 13 NEMA 5-15R
- Overload protection: 15 A
- 1U/0U vertical rack mount
- Package includes: PDU1215 rackmount power strip, warranty information, instruction manual
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Back panel nut and bolt grounding lug
- Reversible housing; 4 1/2" depth
- Typical applications: Internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment
- Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D)
- limited lifetime mfr. warranty
| Manufacturer # | PDU1215 |
| Brand Name | Tripp Lite |
| Cable Length (ft.) | 15 |
| Depth in Inches | 4.5 |
| Height in Inches | 1.75 |
| Outlet Connectors | 13 NEMA 5-15R |
| Outlet Count | 13 |
| Output Frequency | 50/60 Hz |
| Overload Protection | 15 A |
| Phase | Single-Phase |
| Power Distribution Unit Type | Basic |
| Rack Units | 1U |
| True Color | Black |
| Warranty Information | Limited Lifetime Warranty |
| Width in Inches | 17.5 |
Details
Tripp Lite Single phase basic power distribution unit has NEMA 5-15P enclosure to offer added protection and can be 1U/0U vertical rack mounted. Unit has NEMA 5-15R outlet connector and offers 15 A overload protection.
- Single phase NEMA 5-15P 15' 15 A 120 V nominal input
- 120 V 50/60 Hz output
- Outlet connector: 13 NEMA 5-15R
- Overload protection: 15 A
- 1U/0U vertical rack mount
- Package includes: PDU1215 rackmount power strip, warranty information, instruction manual
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Back panel nut and bolt grounding lug
- Reversible housing; 4 1/2" depth
- Typical applications: Internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment
- Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D)
- limited lifetime mfr. warranty
