Highlights
View Details- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 70"(H) x 2.2"(W) x 2.5"(D)
- Metal construction for long lasting durability
Tripp Lite Single-Phase Metered Power Distribution Unit, 48-Outlet, Black (PDUMV30HV2)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite PDUMV30HV2 5.8 kW single-phase metered PDU has 48 outlets for distributing single-phase AC power to rack-mounted equipment. The ammeters in this PDU, allows you visually monitor each bank and maintain balanced loads to prevent circuit overloads due to breakers tripping. It has special guards to prevent the breakers from tripping accidentally. This PDU comes with NEMA L6-30P input plug with 10' cord to connect to your AC power source, generator or protected UPS.
- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 70"(H) x 2.2"(W) x 2.5"(D)
- Metal construction for long lasting durability

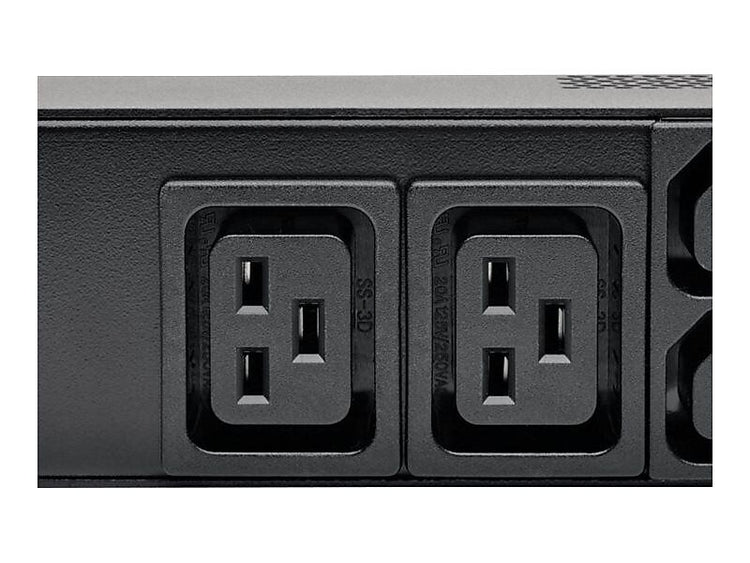

- Receptacles: NEMA L6-30P input, eight IEC 60320 C19 and 40 x IEC 60320 C13 output
- Voltage: 208/240 VAC at 50/60 Hz input/output, Input current: 30 A
- Output capacity: 5.8 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Offers overload protection
- Operating temperature: 32 - 122 deg F (0 - 50 deg C), Storage temperature: 5 - 140 deg F (-15 - 60 deg C)
- Comes with outlets arrangement in two separate load banks, each with 24 outlets
- Ammeters allow you visually monitor each bank and maintain balanced loads to avoid circuit overloads and downtime due to breakers tripping
- Special guards aid to prevent the breakers from tripping accidentally while outlets, breakers come color-coded and labeled for easy identification
- Contains plug-lock inserts (8 C20, 40 C13), spare installation buttons, 2.9 mm/4.6 mm, ground screw, mounting hardware and owner's manual
- Meets UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS, TAA standards or certifications
- Weight: 12.35 lbs.
- Comes with 2 years limited warranty
| Manufacturer # | PDUMV30HV2 |
| Brand Name | Tripp Lite |
| Cable Length (ft.) | 10 |
| Depth in Inches | 2.5 |
| Height in Inches | 70 |
| Input Current | 30 A |
| Load Capacity | 5.8 kW |
| Operating Temperature (fahrenheit) | 32 - 122 deg F |
| Outlet Count | 48 |
| Output Frequency | 50/60 Hz |
| Overload Protection | Yes |
| Phase | Single-Phase |
| Power Distribution Unit Type | Metered |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 12.35 |
| Width in Inches | 2.2 |
Details
The Tripp Lite PDUMV30HV2 5.8 kW single-phase metered PDU has 48 outlets for distributing single-phase AC power to rack-mounted equipment. The ammeters in this PDU, allows you visually monitor each bank and maintain balanced loads to prevent circuit overloads due to breakers tripping. It has special guards to prevent the breakers from tripping accidentally. This PDU comes with NEMA L6-30P input plug with 10' cord to connect to your AC power source, generator or protected UPS.
- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 70"(H) x 2.2"(W) x 2.5"(D)
- Metal construction for long lasting durability
- Receptacles: NEMA L6-30P input, eight IEC 60320 C19 and 40 x IEC 60320 C13 output
- Voltage: 208/240 VAC at 50/60 Hz input/output, Input current: 30 A
- Output capacity: 5.8 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Offers overload protection
- Operating temperature: 32 - 122 deg F (0 - 50 deg C), Storage temperature: 5 - 140 deg F (-15 - 60 deg C)
- Comes with outlets arrangement in two separate load banks, each with 24 outlets
- Ammeters allow you visually monitor each bank and maintain balanced loads to avoid circuit overloads and downtime due to breakers tripping
- Special guards aid to prevent the breakers from tripping accidentally while outlets, breakers come color-coded and labeled for easy identification
- Contains plug-lock inserts (8 C20, 40 C13), spare installation buttons, 2.9 mm/4.6 mm, ground screw, mounting hardware and owner's manual
- Meets UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS, TAA standards or certifications
- Weight: 12.35 lbs.
- Comes with 2 years limited warranty
