Highlights
View Details- 1350 W load capacity
- Compatible with BP36V15-2U, BP36V42-3U, BP36V27-2US (external battery pack)
- NEMA 5-15P connector

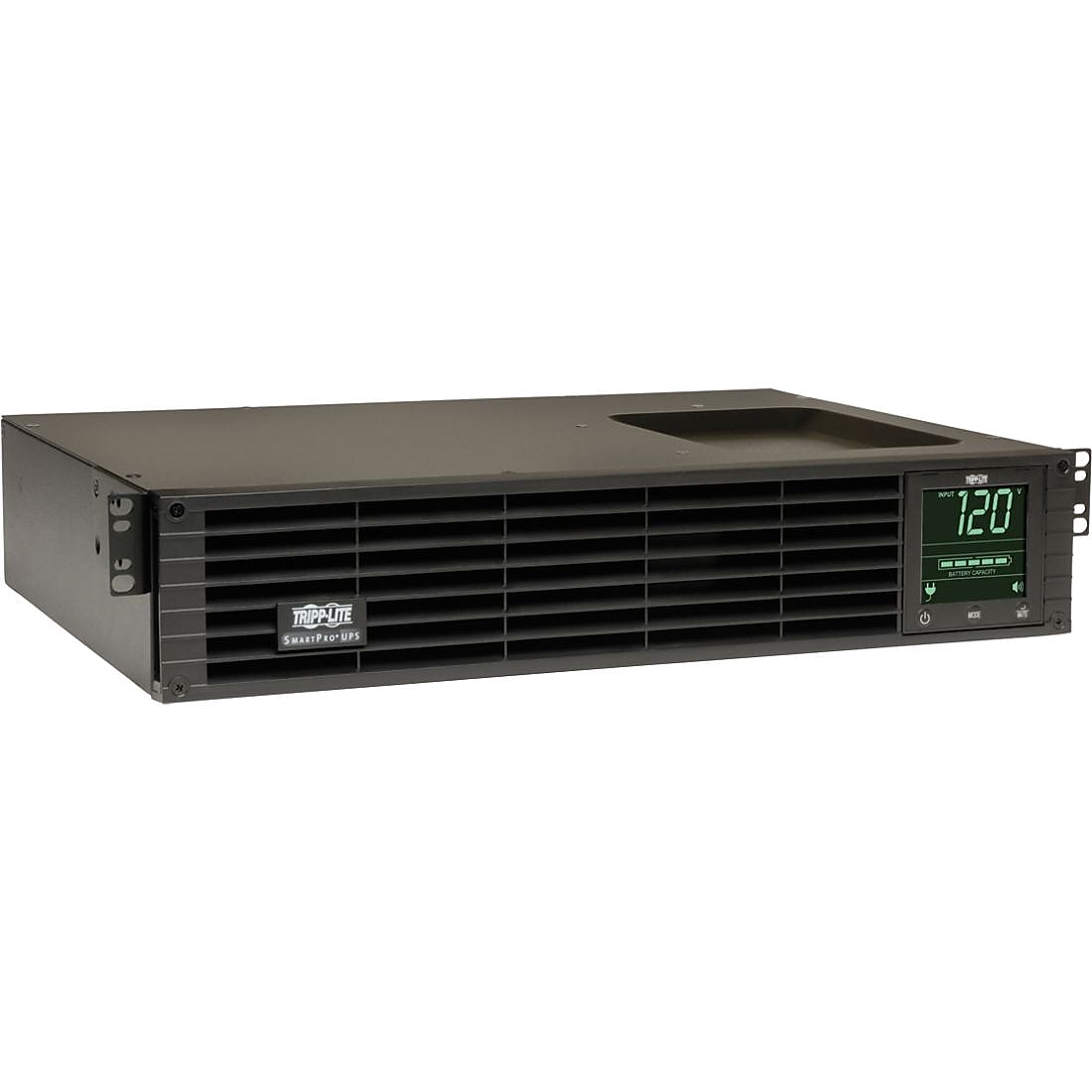

Tripp Lite SM1500RMXL2U TAA Compliant SmartPro Line Interactive Extended Run UPS, 1.5 kVA
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Tripp Lite SmartPro TAA 8-Outlets 1500VA UPS Line interactive UPS has line interactive rack/tower UPS with AVR corrects brownouts and overvoltage's. UPS has high 95% efficiency rating for reduced power consumption and BTU emissions.
- 1350 W load capacity
- Compatible with BP36V15-2U, BP36V42-3U, BP36V27-2US (external battery pack)
- NEMA 5-15P connector
- Dimensions: 3 1/2"(H) x 17 1/2"(W) x 13 1/2"(D)
- Form factor: 2U tower/rack-mountable
- Power supply: Voltage: 110 V AC (input), 120 V AC (output), Input current: 10.1 A, Rated input current: 12A, Input circuit breakers: 15A, output derates to 1200 watts in all external battery configurations
- Ports: USB, serial port
- Network management: SNMP manageable, UPS housing material: Steel, UPS input cord length: 10', Input phase: Single
- Battery: Run time: 4.9 minutes (full load), 14 minutes (half load), Battery recharge time: 4.5 hours (max.), hot-swappable
- Receptacles: 8 x NEMA 5-15R, Load management receptacles: Two switchable two-outlet 5-15R load banks, Output voltage regulation (line mode): -14%, +6%, Battery mode: +/- 5%
- Transfer time: 4 ms (AC to battery mode), 1 ms (battery to AC mode), Cooling method: Fan, Output AC waveform (AC mode): Sine wave, Battery mode: Pure sine wave
- Switches: 3 pushbutton switches control off/on power status, mode selection and mute/enter control functions
- Software included: PowerAlert software
- Operating temperature: 0 - +40 deg C, Storage: -15 - +50 deg C, Humidity: 0 - 95%
- Features back panel grounding lug, cold-start operation supported, hot-swappable batteries, emergency power OFF
- Includes UPS, software, USB/serial cable, mounting hardware, interface cable, instructional manual with warranty information
- Certifications and standards: RoHS
- Weight: 46.5 lbs.
- Warranty: 2 years limited
| Manufacturer # | SM1500RMXL2UTAA |
| Battery Backup Connectivity | USB/Serial |
| Battery Backup Lcd Display | No |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Tripp Lite |
| Charge Time (hours) | 4.5 |
| Compliance Standards | RoHS |
| Cord Length (ft.) | 10 |
| Depth in Inches | 13.5 |
| Height in Inches | 3.5 |
| Input Voltage | 110 V AC |
| Mountable | Mountable |
| On-line Phase | Single Phase |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Output Voltage | 120 V |
| Power Capacity (va) | 1500 |
| Rack Units | 2U |
| Usb Connectivity | USB Connection |
| Va Rating | 1251-1500 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 46.5 |
| Width in Inches | 17.5 |
Details
Tripp Lite SmartPro TAA 8-Outlets 1500VA UPS Line interactive UPS has line interactive rack/tower UPS with AVR corrects brownouts and overvoltage's. UPS has high 95% efficiency rating for reduced power consumption and BTU emissions.
- 1350 W load capacity
- Compatible with BP36V15-2U, BP36V42-3U, BP36V27-2US (external battery pack)
- NEMA 5-15P connector
- Dimensions: 3 1/2"(H) x 17 1/2"(W) x 13 1/2"(D)
- Form factor: 2U tower/rack-mountable
- Power supply: Voltage: 110 V AC (input), 120 V AC (output), Input current: 10.1 A, Rated input current: 12A, Input circuit breakers: 15A, output derates to 1200 watts in all external battery configurations
- Ports: USB, serial port
- Network management: SNMP manageable, UPS housing material: Steel, UPS input cord length: 10', Input phase: Single
- Battery: Run time: 4.9 minutes (full load), 14 minutes (half load), Battery recharge time: 4.5 hours (max.), hot-swappable
- Receptacles: 8 x NEMA 5-15R, Load management receptacles: Two switchable two-outlet 5-15R load banks, Output voltage regulation (line mode): -14%, +6%, Battery mode: +/- 5%
- Transfer time: 4 ms (AC to battery mode), 1 ms (battery to AC mode), Cooling method: Fan, Output AC waveform (AC mode): Sine wave, Battery mode: Pure sine wave
- Switches: 3 pushbutton switches control off/on power status, mode selection and mute/enter control functions
- Software included: PowerAlert software
- Operating temperature: 0 - +40 deg C, Storage: -15 - +50 deg C, Humidity: 0 - 95%
- Features back panel grounding lug, cold-start operation supported, hot-swappable batteries, emergency power OFF
- Includes UPS, software, USB/serial cable, mounting hardware, interface cable, instructional manual with warranty information
- Certifications and standards: RoHS
- Weight: 46.5 lbs.
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
