Highlights
View Details- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3 1/2"H x 17 1/2"W x 19"D

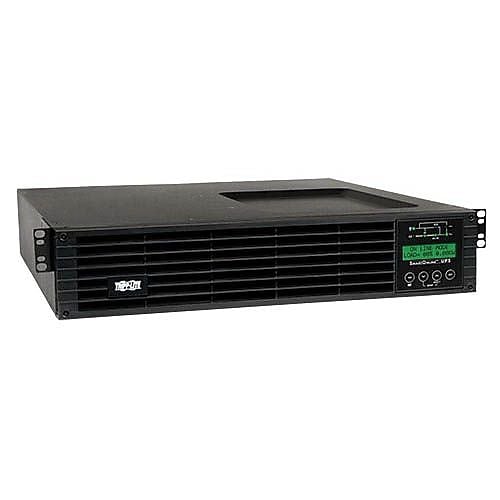

Tripp Lite SmartOnline 2200VA Dual Conversion Online UPS (SU2200RTXLCDN)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite SmartOnline SU2200RTXLCDN 2200 VA dual conversion online UPS offers full load backup/run time of 4 mins and half load backup/run time of 12 mins. It measures 3 1/2" x 17 1/2" x 19". The UPS has six NEMA 5-15/20R plugs, one NEMA L5-20R plug, DB9 serial port, SNMP/web slot as well as USB port for connectivity. It has seven front panel LEDs that indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation as well as AC output status. It Includes SNMPWEBCARD web management card, USB cable, DB9 cable, EPO cable, PowerAlert software, mounting hardware, owner's manual.
- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3 1/2"H x 17 1/2"W x 19"D
- Backup/run time (full load): 4 min, 12 min (half load)
- Output voltage: 100, 110, 115, 120, 127 VAC (nominal)
- LED indicators: Seven front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode
- Form factor: 2U tower/rack/wall mountable, hot-swappable batteries, Housing material: Steel
- Replacement battery: RBC94-2U
- Interface: Contact closure, DB9 serial, SNMP/web slot, USB, Receptacles: Six NEMA 5-15/20R, one NEMA L5-20R
- Input connection: 5-20P, Cord length: 10'
- Switching time: 4 ms, Input phase: Single, Input circuit breakers: 30 A
- Input voltage: 100, 110, 115, 120, 127 VAC, Frequency compatibility: 50 / 60 Hz, Rated input current: 16 A (max load)
- Waveform: Pure sine wave, Suppression joule rating: 570 J
- Cooling method: Fan, Audible alarm indicates startup/shutdown, power failure, low battery, overload and fault conditions
- Operating temperature: 0-40 deg C, Storage temperature: -15 to 50 deg C, Relative humidity: 0-95% (non-condensing), BTU/Hr. (full load): 1085
- Includes UPS, SNMPWEBCARD web management card, USB cable, DB9 cable, EPO cable, PowerAlert software, mounting hardware, owner's manual
- RoHS Compliant
- Weight: 48.5 lbs.
- Comes with 2 years limited warranty
| Manufacturer # | SU2200RTXLCDN |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | On-Line UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Tripp Lite |
| Charge Time (hours) | 3 |
| Compliance Standards | UL 1778, RoHS, CSA, FCC Part 15 A, EMI |
| Cord Length (ft.) | 10 |
| Depth in Inches | 19 |
| Height in Inches | 3.5 |
| Input Voltage | 100/110/115/120/127 |
| Joule Rating | 570 |
| Mountable | Mountable |
| On-line Phase | Single Phase |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 7 |
| Output Power Capacity (w) | 1800 |
| Output Voltage | 100/110/115/120/127 |
| Power Capacity (va) | 2200 |
| Rack Units | 2U |
| Series or Collection | UPS Smart Online 2200VA 1800W Rackmount 120V LCD USB DB9 Preinstalled SNMPWEBCARD 2URM |
| True Color | Black |
| Types of Battery | Other |
| Usb Connectivity | USB Connection |
| Va Rating | 2001-2500 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 48.5 |
| Width in Inches | 17.5 |
Details
The Tripp Lite SmartOnline SU2200RTXLCDN 2200 VA dual conversion online UPS offers full load backup/run time of 4 mins and half load backup/run time of 12 mins. It measures 3 1/2" x 17 1/2" x 19". The UPS has six NEMA 5-15/20R plugs, one NEMA L5-20R plug, DB9 serial port, SNMP/web slot as well as USB port for connectivity. It has seven front panel LEDs that indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation as well as AC output status. It Includes SNMPWEBCARD web management card, USB cable, DB9 cable, EPO cable, PowerAlert software, mounting hardware, owner's manual.
- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3 1/2"H x 17 1/2"W x 19"D
- Backup/run time (full load): 4 min, 12 min (half load)
- Output voltage: 100, 110, 115, 120, 127 VAC (nominal)
- LED indicators: Seven front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode
- Form factor: 2U tower/rack/wall mountable, hot-swappable batteries, Housing material: Steel
- Replacement battery: RBC94-2U
- Interface: Contact closure, DB9 serial, SNMP/web slot, USB, Receptacles: Six NEMA 5-15/20R, one NEMA L5-20R
- Input connection: 5-20P, Cord length: 10'
- Switching time: 4 ms, Input phase: Single, Input circuit breakers: 30 A
- Input voltage: 100, 110, 115, 120, 127 VAC, Frequency compatibility: 50 / 60 Hz, Rated input current: 16 A (max load)
- Waveform: Pure sine wave, Suppression joule rating: 570 J
- Cooling method: Fan, Audible alarm indicates startup/shutdown, power failure, low battery, overload and fault conditions
- Operating temperature: 0-40 deg C, Storage temperature: -15 to 50 deg C, Relative humidity: 0-95% (non-condensing), BTU/Hr. (full load): 1085
- Includes UPS, SNMPWEBCARD web management card, USB cable, DB9 cable, EPO cable, PowerAlert software, mounting hardware, owner's manual
- RoHS Compliant
- Weight: 48.5 lbs.
- Comes with 2 years limited warranty
