Highlights
View Details- High-performance on-line double-conversion UPS with interactive LCD interface is ideal for critical voice, data, medical or industrial IT application
- Dimensions: 8.8cmH x 43.8cmW x 61.6cmD
- Output volt amp capacity: 3000 VA, Output kVA capacity: 3 kVA, Output watt capacity: 2700 W, Output kW capacity: 2.7 kW, Power factor: 0.9
Tripp Lite SmartOnline Double-Conversion UPS, 208/230 V 3 kVA 2.7 kW (SUINT3000LCD2U)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite SmartOnline SUINT3000LCD2U 208/230 V 3 kVA 2.7 kW double-conversion UPS features two switchable 4 outlet load banks and has four front panel LEDs for AC input, AC output, battery and fault. It features five front panel switches that are on/off, up, down as well as escape. It comes with 4-post rack-mount installation kit, C19-to-C20 power cable, USB, RS-232 cable, two C13-to-C14 power cables as well as owner's manual.
- High-performance on-line double-conversion UPS with interactive LCD interface is ideal for critical voice, data, medical or industrial IT application
- Dimensions: 8.8cmH x 43.8cmW x 61.6cmD
- Output volt amp capacity: 3000 VA, Output kVA capacity: 3 kVA, Output watt capacity: 2700 W, Output kW capacity: 2.7 kW, Power factor: 0.9
- Frequency compatibility: 50/60 Hz, Output voltage regulation: +/- 2 percent (line mode), +/- 10 percent (economy line), +/- 2 percent (battery mode)
- Load management receptacles: Two switchable 4-outlet load banks (3 C13 & 1 C19 per bank), Output AC waveform: Pure sine wave (AC mode)
- Rated input current (max load): 14.97 A, Nominal input voltage: Supported 200 VAC, 208 VAC, 220 VAC, 230 VAC, 240 VAC, Input phase: Single-phase
- Full load runtime: 5 mins (2700 W), Half load runtime: 13.5 mins (1350 W), External battery pack compatibility: BP72V15-2U, DC system voltage: 72 VDC

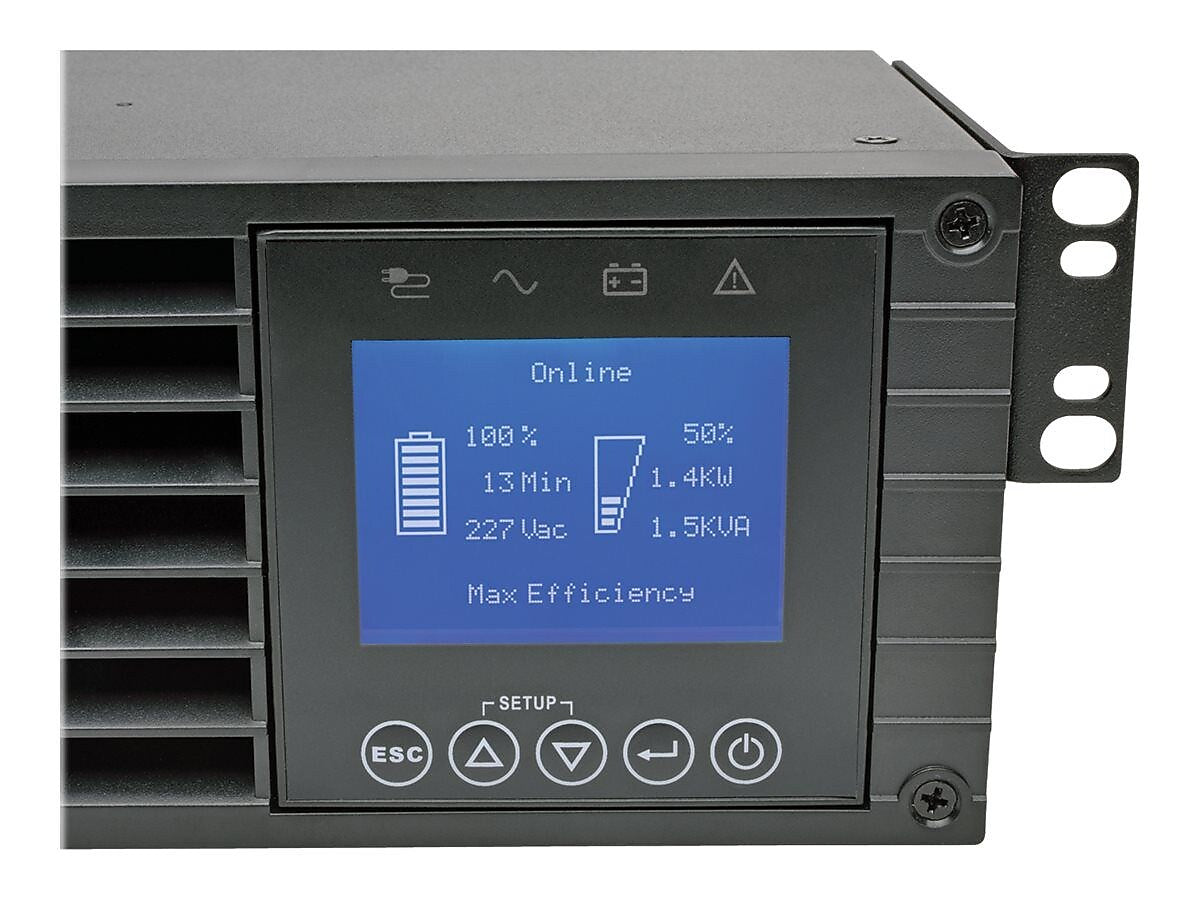

- LED indicators: Four front panel LEDs: AC input (green), AC output (green), battery (yellow) and fault (red)
- Switches: Five front panel switches: On/off, up, down and escape
- UPS dataline suppression details: Single line dialup/network dataline protection included
- AC suppression Joule rating: 570, AC suppression response time: Instantaneous
- Form factor: Rack-mountable
- Operating temperature range: 32 - 104 deg F, Relative humidity: 5 - 95 percent (non-condensing)
- Contains SmartOnline 3000 VA/2700 W on-line double-conversion UPS, 4-post rack-mount installation kit, USB, RS-232 cable, C19-to-C20 power cable
- Meets CE, Energy Star, FCC Part 15 Category A (EMI), CSA, EAC, SASO, UL1778, EMI IEC62040-2:2006, FCC Part 15 certifications and standards
- Weight: 31.2 kg
- Comes with 2 years limited warranty
| Manufacturer # | SUINT3000LCD2U |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | On-Line UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Tripp Lite |
| Compliance Standards | CE, Energy Star, FCC Part 15 Category A (EMI), CSA, EAC, SASO, UL1778, EMI IEC62040-2:2006, FCC Part 15 |
| Depth in Inches | 24.25 |
| Height in Inches | 3.46 |
| Input Voltage | 230 VAC |
| Joule Rating | 570 |
| Mountable | Mountable |
| On-line Phase | Single Phase |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Output Voltage | 230 VAC |
| Power Capacity (va) | 3000 |
| Rack Units | 2U |
| Usb Connectivity | USB Connection |
| Va Rating | 2501-3000 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 68.78 |
| Width in Inches | 17.24 |
Details
The Tripp Lite SmartOnline SUINT3000LCD2U 208/230 V 3 kVA 2.7 kW double-conversion UPS features two switchable 4 outlet load banks and has four front panel LEDs for AC input, AC output, battery and fault. It features five front panel switches that are on/off, up, down as well as escape. It comes with 4-post rack-mount installation kit, C19-to-C20 power cable, USB, RS-232 cable, two C13-to-C14 power cables as well as owner's manual.
- High-performance on-line double-conversion UPS with interactive LCD interface is ideal for critical voice, data, medical or industrial IT application
- Dimensions: 8.8cmH x 43.8cmW x 61.6cmD
- Output volt amp capacity: 3000 VA, Output kVA capacity: 3 kVA, Output watt capacity: 2700 W, Output kW capacity: 2.7 kW, Power factor: 0.9
- Frequency compatibility: 50/60 Hz, Output voltage regulation: +/- 2 percent (line mode), +/- 10 percent (economy line), +/- 2 percent (battery mode)
- Load management receptacles: Two switchable 4-outlet load banks (3 C13 & 1 C19 per bank), Output AC waveform: Pure sine wave (AC mode)
- Rated input current (max load): 14.97 A, Nominal input voltage: Supported 200 VAC, 208 VAC, 220 VAC, 230 VAC, 240 VAC, Input phase: Single-phase
- Full load runtime: 5 mins (2700 W), Half load runtime: 13.5 mins (1350 W), External battery pack compatibility: BP72V15-2U, DC system voltage: 72 VDC
- LED indicators: Four front panel LEDs: AC input (green), AC output (green), battery (yellow) and fault (red)
- Switches: Five front panel switches: On/off, up, down and escape
- UPS dataline suppression details: Single line dialup/network dataline protection included
- AC suppression Joule rating: 570, AC suppression response time: Instantaneous
- Form factor: Rack-mountable
- Operating temperature range: 32 - 104 deg F, Relative humidity: 5 - 95 percent (non-condensing)
- Contains SmartOnline 3000 VA/2700 W on-line double-conversion UPS, 4-post rack-mount installation kit, USB, RS-232 cable, C19-to-C20 power cable
- Meets CE, Energy Star, FCC Part 15 Category A (EMI), CSA, EAC, SASO, UL1778, EMI IEC62040-2:2006, FCC Part 15 certifications and standards
- Weight: 31.2 kg
- Comes with 2 years limited warranty
| Attribute Name | Attribute Value |
|---|
