Highlights
View Details- 18U with adjustable front and rear vertical rackmount rails
- Extended depth of 33" allow for standard server installation
- Dynamic/rolling weight capacity: 500 lbs., static/stationary weight capacity: 500.00 lbs.

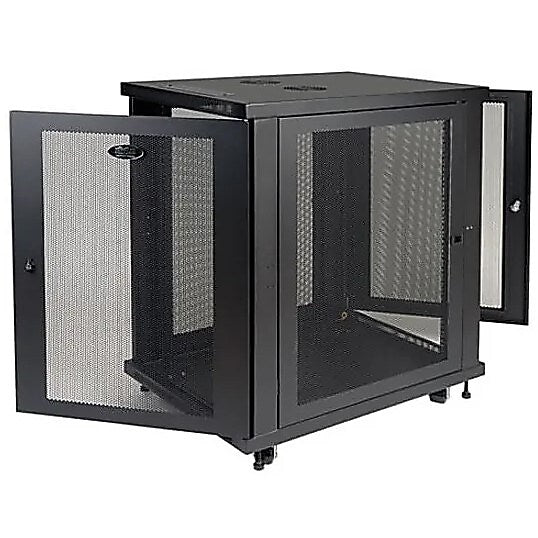

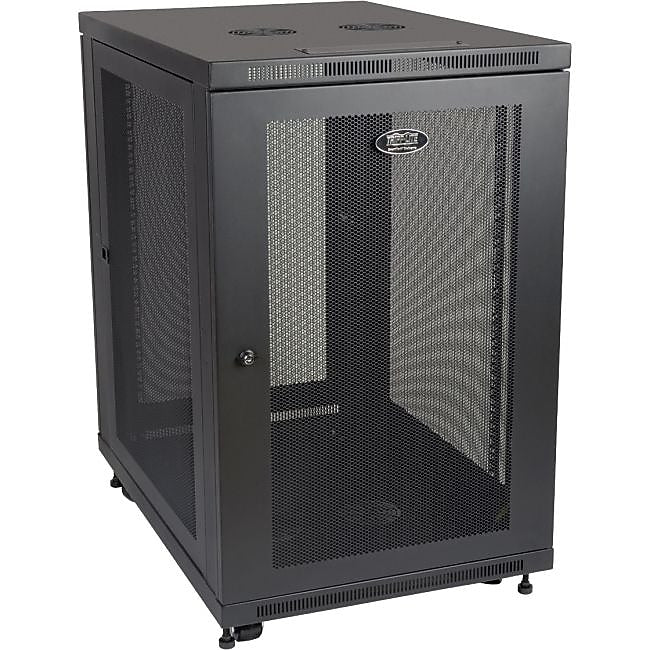

Tripp Lite SmartRack 18U Rack Mount Server Cabinet Enclosure (RA1698)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Tripp Lite 18U extra depth rack enclosure cabinet is compatible with all standard 19" rack equipment. Cabinet has top and bottom panels which are furnished with vents that remove warm air from enclosure and draw in cool air by convection.

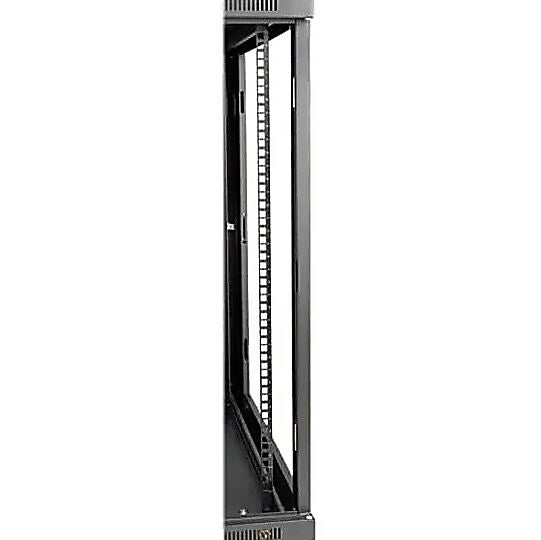

- 18U with adjustable front and rear vertical rackmount rails
- Extended depth of 33" allow for standard server installation
- Dynamic/rolling weight capacity: 500 lbs., static/stationary weight capacity: 500.00 lbs.
- Dimensions: 35.6"(H) x 23.6"(W) x 33 1/2"(D)
- Rack height: 18U, rack width: 19"

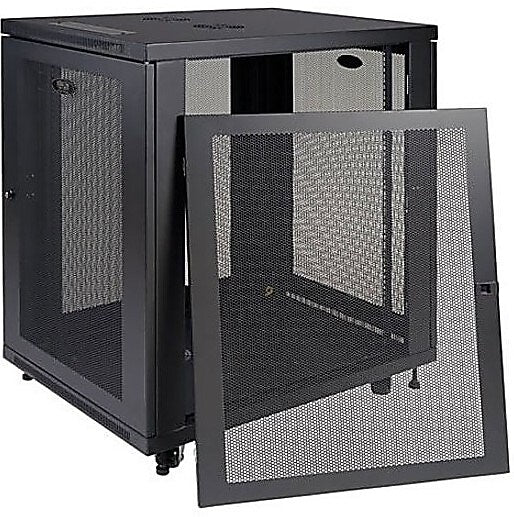

- Locking, reversible front door and locking, removable side panels, fully assembled for quick installation, casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
- Front rail

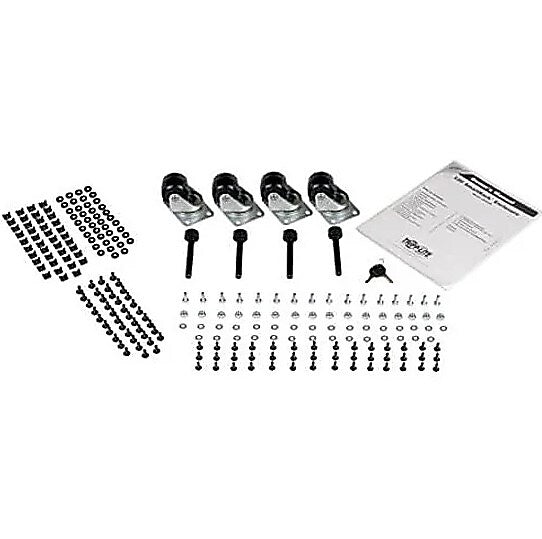

- Package contents: SmartRack 18U extra depth rack enclosure cabinet, 42 x M6 screws, 42 x M6 cage nuts, 42 x M6 washers, 4 x casters, 4 x levelers, 2 x keys, owner's manual
- Certification and standards: RoHS, green compliant
- Weight: 105 lbs.
- Warranty: 5 years limited
| Manufacturer # | RA1698 |
| Brand Name | Tripp Lite |
| Kit | No |
| Rack Units | 18U |
| Rack Or Wall Mount | Rack Mount |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Series Or Collection | SmartRack |
| Server Rack Or Cabinet Type | Cabinet Enclosure |
| Warranty Information | 5 Year |
Details
Tripp Lite 18U extra depth rack enclosure cabinet is compatible with all standard 19" rack equipment. Cabinet has top and bottom panels which are furnished with vents that remove warm air from enclosure and draw in cool air by convection.
- 18U with adjustable front and rear vertical rackmount rails
- Extended depth of 33" allow for standard server installation
- Dynamic/rolling weight capacity: 500 lbs., static/stationary weight capacity: 500.00 lbs.
- Dimensions: 35.6"(H) x 23.6"(W) x 33 1/2"(D)
- Rack height: 18U, rack width: 19"
- Locking, reversible front door and locking, removable side panels, fully assembled for quick installation, casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
- Front rail
- Package contents: SmartRack 18U extra depth rack enclosure cabinet, 42 x M6 screws, 42 x M6 cage nuts, 42 x M6 washers, 4 x casters, 4 x levelers, 2 x keys, owner's manual
- Certification and standards: RoHS, green compliant
- Weight: 105 lbs.
- Warranty: 5 years limited
| Attribute Name | Attribute Value |
|---|
