Highlights
View Details- UPS-depth wall mount rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 90.45 cm H x 59.69 cm W x 65.99 cm D, 19"W (rack), Device depth: 7.62 - 62.23 cm, Factory preset rack depth: 24.99 cm
- Black steel
Tripp Lite SmartRack 18U Wall Mount Server Cabinet Enclosure (SRW18USDP)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

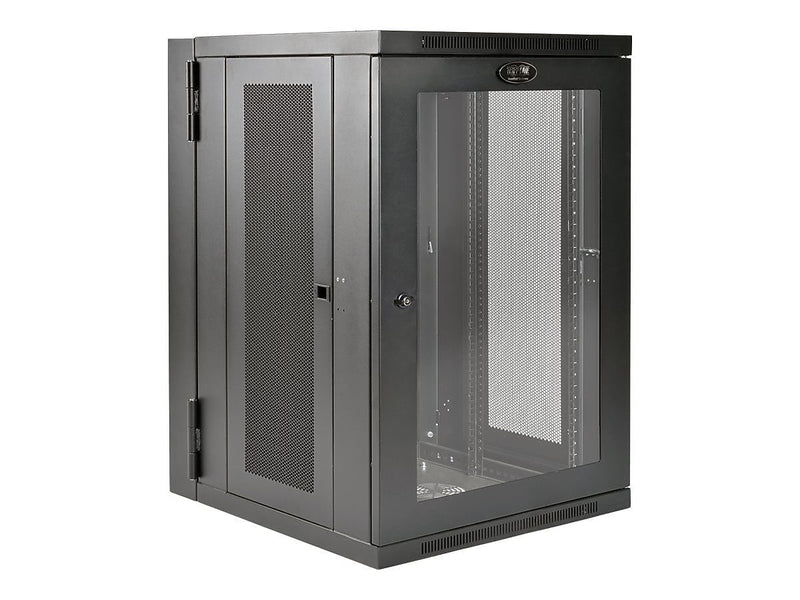

The Tripp Lite SmartRack® SRW18USDP 18U UPS-depth wall-mount rack cabinet with hinged back, is designed to house shallow equipment up to 24 1/2" deep in network closets, retail locations and classrooms. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lb. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. The vented top, bottom and removable side panels allow air to flow freely through the cabinet to keep the equipment cool.
- UPS-depth wall mount rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 90.45 cm H x 59.69 cm W x 65.99 cm D, 19"W (rack), Device depth: 7.62 - 62.23 cm, Factory preset rack depth: 24.99 cm
- Black steel
- Form factor: Wall mountable
- Maximum weight capacity: 250 lbs., static/stationary weight capacity: 250 lbs.
- Rack height (U spaces): 18, grounding lug: Front and back door frames
- Houses EIA-standard 19" rack equipment in 18U of space

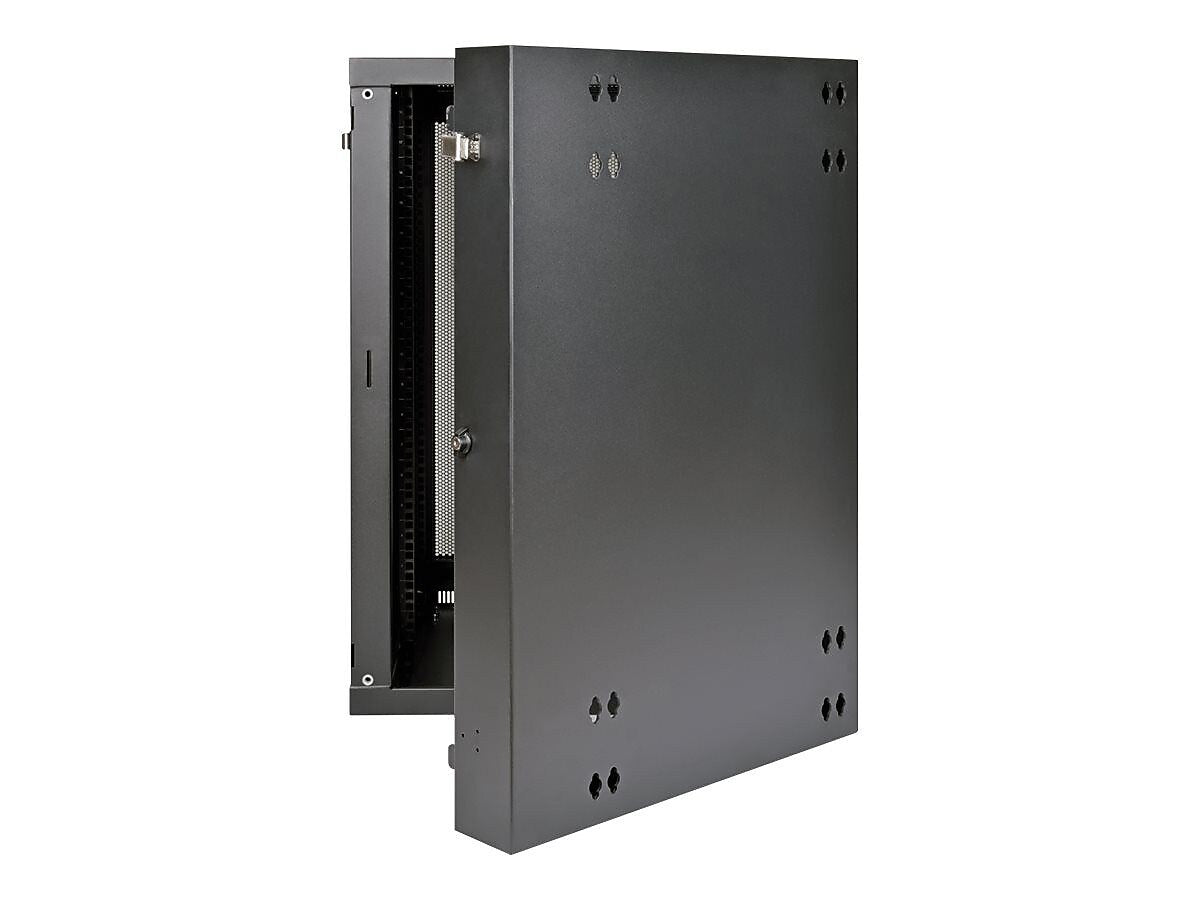

- Hinged cabinet swings away from the wall to allow easy access to equipment and cabling during installation, rotate cabinet 180 deg before mounting
- Side panels and doors lock securely to prevent damage/theft, vented panels allow generous airflow, convenient ports with removable covers
- Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit, wall mounting holes spaced 16" apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8" increments to accommodate equipment, rails adjust easily
- Rails support square-hole or threaded-hole mounting, rack spaces numbered for easy reference
- Provides physical equipment and media security required for PCI DSS compliance

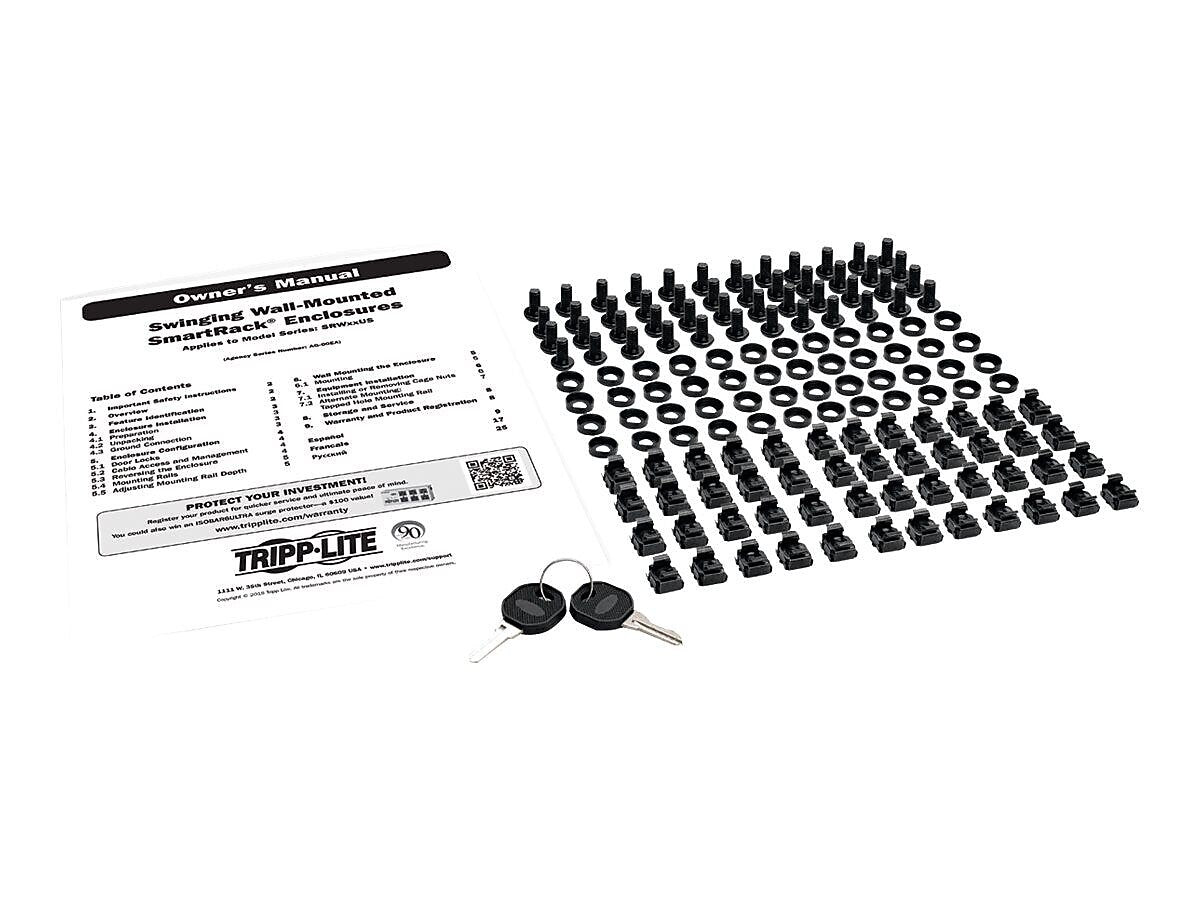

- Includes rack cabinet, 42 x M6 screws, 42 x M6 cage nuts, 42 x M6 washers, 42 x 12-24 screws, 2 x keys, owner manual
- Meets Green compliant, EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS standards
- Weight: 45.77 Kg
- Comes with 5 year limited warranty
| Manufacturer # | SRW18USDP |
| Brand Name | Tripp Lite |
| Kit | No |
| Maximum Weight Capacity (lbs) | 250 |
| Rack Units | 18U |
| Rack or Wall Mount | Wall Mount |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Series or Collection | SmartRack |
| Server Rack or Cabinet Type | Cabinet Enclosure |
| Warranty Information | 5 Year |
Details
The Tripp Lite SmartRack® SRW18USDP 18U UPS-depth wall-mount rack cabinet with hinged back, is designed to house shallow equipment up to 24 1/2" deep in network closets, retail locations and classrooms. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lb. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. The vented top, bottom and removable side panels allow air to flow freely through the cabinet to keep the equipment cool.
- UPS-depth wall mount rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 90.45 cm H x 59.69 cm W x 65.99 cm D, 19"W (rack), Device depth: 7.62 - 62.23 cm, Factory preset rack depth: 24.99 cm
- Black steel
- Form factor: Wall mountable
- Maximum weight capacity: 250 lbs., static/stationary weight capacity: 250 lbs.
- Rack height (U spaces): 18, grounding lug: Front and back door frames
- Houses EIA-standard 19" rack equipment in 18U of space
- Hinged cabinet swings away from the wall to allow easy access to equipment and cabling during installation, rotate cabinet 180 deg before mounting
- Side panels and doors lock securely to prevent damage/theft, vented panels allow generous airflow, convenient ports with removable covers
- Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit, wall mounting holes spaced 16" apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8" increments to accommodate equipment, rails adjust easily
- Rails support square-hole or threaded-hole mounting, rack spaces numbered for easy reference
- Provides physical equipment and media security required for PCI DSS compliance
- Includes rack cabinet, 42 x M6 screws, 42 x M6 cage nuts, 42 x M6 washers, 42 x 12-24 screws, 2 x keys, owner manual
- Meets Green compliant, EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS standards
- Weight: 45.77 Kg
- Comes with 5 year limited warranty
| Attribute Name | Attribute Value |
|---|
