Highlights
View Details- Rack cabinet used in classrooms, back offices and other areas with limited floor space
- Dimensions: 14.6"H x 23.6"W x 21.7"D (unit), 6U"H x 19"W x 20.5"D (rack)
- Color: Black, Material: Steel

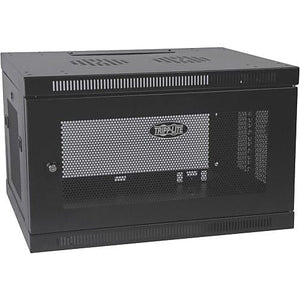

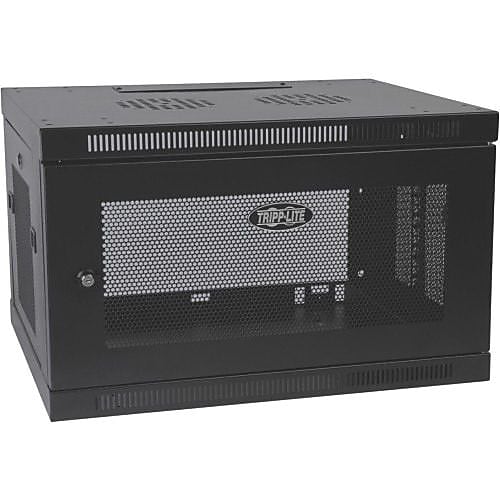

Tripp Lite SmartRack 6U Wall Mount Server Cabinet Enclosure (SRW6UDP)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite SmartRack 6U low-profile switch-depth-plus wall-mount rack enclosure cabinet in black, is perfect for use in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space. Cabinet measuring 14.6" x 23.6" x 21.7", has durable steel construction for longer endurance. This enclosure cabinet has a maximum weight capacity of 200 lbs and static/stationary weight capacity of 90.70 lbs. It has wall-mounting holes spaced 16" apart for easy and standard wall stud placement. It comes with 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers, 12 12-24 screws, removable mounting plate, three mounting plate screws and two keys.
- Rack cabinet used in classrooms, back offices and other areas with limited floor space
- Dimensions: 14.6"H x 23.6"W x 21.7"D (unit), 6U"H x 19"W x 20.5"D (rack)
- Color: Black, Material: Steel
- Maximum weight capacity: 200 lbs.
- Static/stationary weight capacity: 90.7 lbs.
- Rack height: 6U, Rack width: 19", Rack depth: 20.5"
- Grounding lug: Front and back door frames
- Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space
- Side panels and front door lock securely to help prevent damage, tampering or theft, vented panels allow generous airflow that keeps equipment cool
- Rotate cabinet 180 deg before mounting to open reversible front door left or right, convenient ports with removable covers
- Ships fully assembled for quick installation, mounts to wall or rolls on floor with tripp lite’s optional SRCASTER caster kit
- Wall-mounting holes spaced 16" apart for standard wall stud placement
- Vertical mounting rails adjust in 0.875" increments to accommodate equipment up to 20.5" deep, such as network switches and patch panels
- Rails adjust easily - unscrew them, slide them to desired depth and screw them back in, Rails support square-hole or threaded-hole mounting
- Rack spaces numbered for easy reference
- Includes: Wall-mount rack enclosure cabinet, 12 x M6 screws, 12 x M6 cage nuts, 12 x M6 cup washers, 12 x 12-24 screws, removable mounting plate
- Meets EIA-310-E, RoHS certificates and standards
- Weight: 200 lbs. max, 90.7 lbs. static capacity
| Manufacturer # | SRW6UDP |
| Brand Name | Tripp Lite |
| Kit | No |
| Maximum Weight Capacity (lbs) | 200 |
| Rack Units | 6U |
| Rack or Wall Mount | Wall Mount |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Series or Collection | SmartRack |
| Server Rack or Cabinet Type | Cabinet Enclosure |
Details
The Tripp Lite SmartRack 6U low-profile switch-depth-plus wall-mount rack enclosure cabinet in black, is perfect for use in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space. Cabinet measuring 14.6" x 23.6" x 21.7", has durable steel construction for longer endurance. This enclosure cabinet has a maximum weight capacity of 200 lbs and static/stationary weight capacity of 90.70 lbs. It has wall-mounting holes spaced 16" apart for easy and standard wall stud placement. It comes with 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers, 12 12-24 screws, removable mounting plate, three mounting plate screws and two keys.
- Rack cabinet used in classrooms, back offices and other areas with limited floor space
- Dimensions: 14.6"H x 23.6"W x 21.7"D (unit), 6U"H x 19"W x 20.5"D (rack)
- Color: Black, Material: Steel
- Maximum weight capacity: 200 lbs.
- Static/stationary weight capacity: 90.7 lbs.
- Rack height: 6U, Rack width: 19", Rack depth: 20.5"
- Grounding lug: Front and back door frames
- Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space
- Side panels and front door lock securely to help prevent damage, tampering or theft, vented panels allow generous airflow that keeps equipment cool
- Rotate cabinet 180 deg before mounting to open reversible front door left or right, convenient ports with removable covers
- Ships fully assembled for quick installation, mounts to wall or rolls on floor with tripp lite’s optional SRCASTER caster kit
- Wall-mounting holes spaced 16" apart for standard wall stud placement
- Vertical mounting rails adjust in 0.875" increments to accommodate equipment up to 20.5" deep, such as network switches and patch panels
- Rails adjust easily - unscrew them, slide them to desired depth and screw them back in, Rails support square-hole or threaded-hole mounting
- Rack spaces numbered for easy reference
- Includes: Wall-mount rack enclosure cabinet, 12 x M6 screws, 12 x M6 cage nuts, 12 x M6 cup washers, 12 x 12-24 screws, removable mounting plate
- Meets EIA-310-E, RoHS certificates and standards
- Weight: 200 lbs. max, 90.7 lbs. static capacity
