Highlights
View Details- Low profile secure rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 73.15 cm H x 65.02 cm W x 20.32 cm D, 19"W (rack), Device depth: 43.18 - 50.80 cm
- Black steel

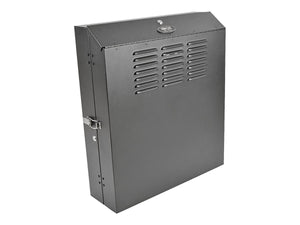

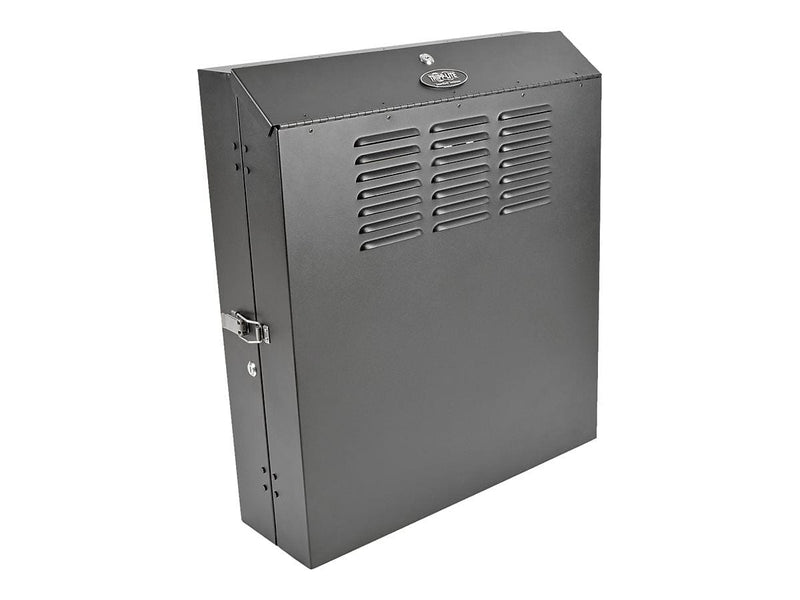

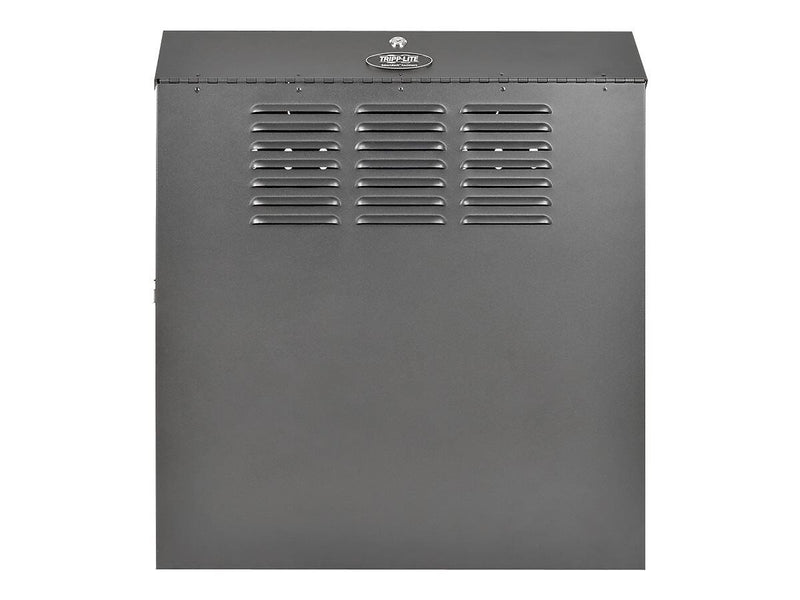

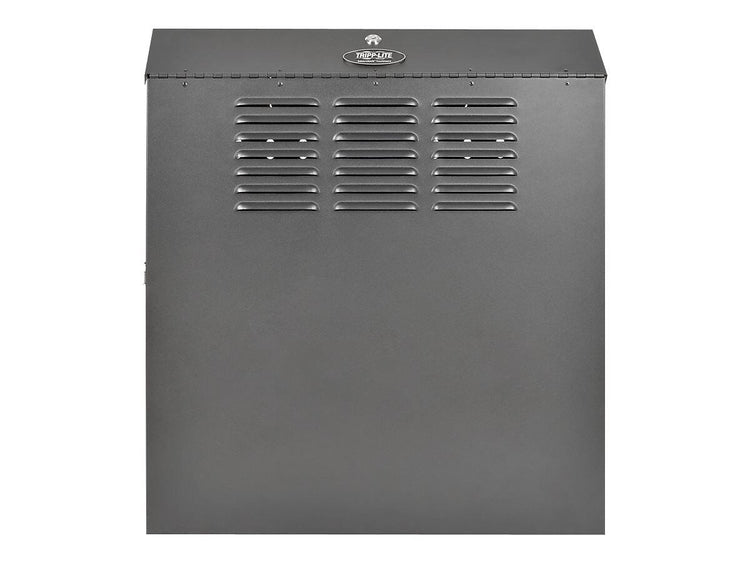

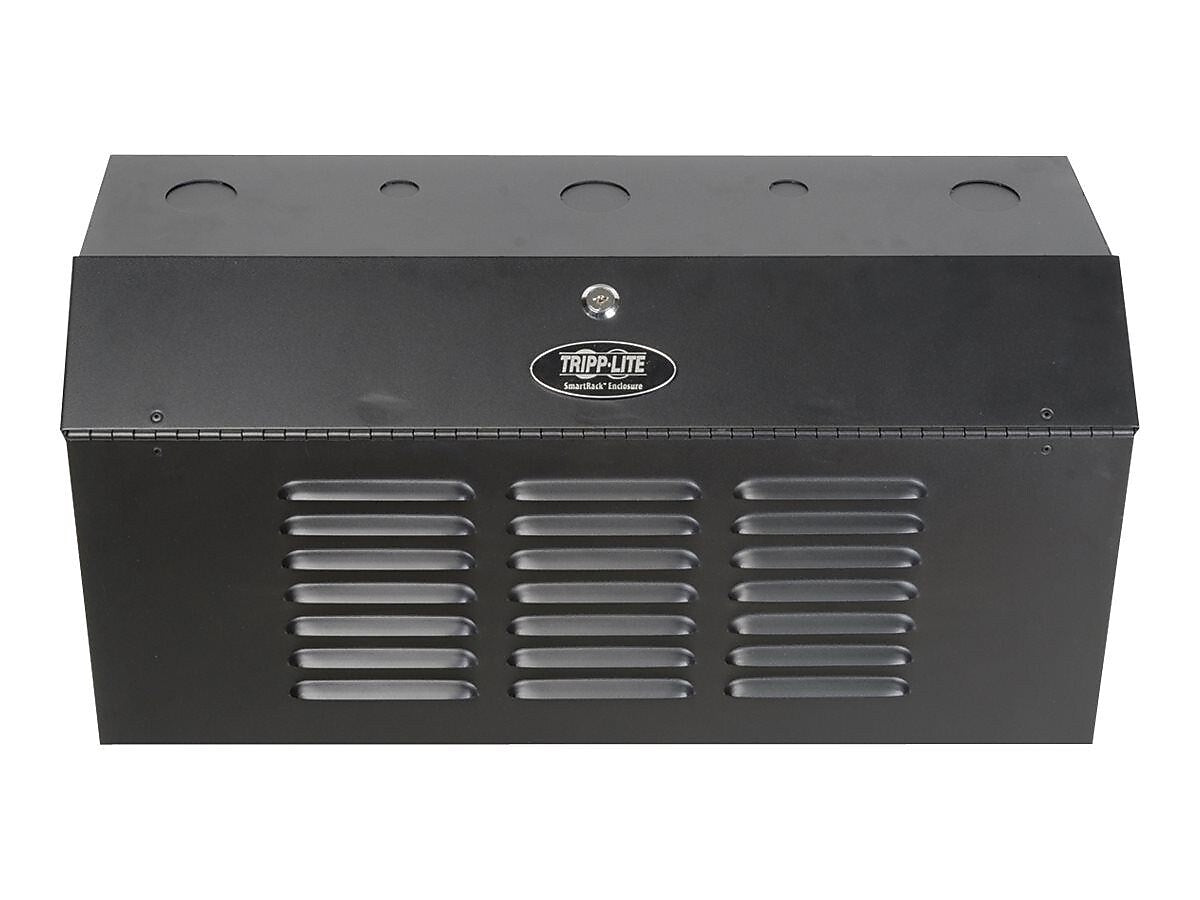

Tripp Lite SmartRack SRWF4U 4U Rack Mount Server Cabinet Enclosure (SRWF4U)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Tripp Lite SmartRack® SRWF4U 4U low-profile vertical-mount rack cabinet is designed to house shallow equipment up to 20" deep in network closets, retail locations and classrooms. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lb. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. The vented top, bottom and removable side panels allow air to flow freely through the cabinet to keep the equipment cool.
- Low profile secure rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 73.15 cm H x 65.02 cm W x 20.32 cm D, 19"W (rack), Device depth: 43.18 - 50.80 cm
- Black steel
- Form factor: Wall mountable
- Maximum weight capacity: 150 lbs., static/stationary weight capacity: 150 lbs.
- Rack height (U spaces): 4
- Houses EIA-standard 19" rack equipment in 4U of space, vertical-mount cabinet extends only 8" from the wall while housing equipment up to 20" deep

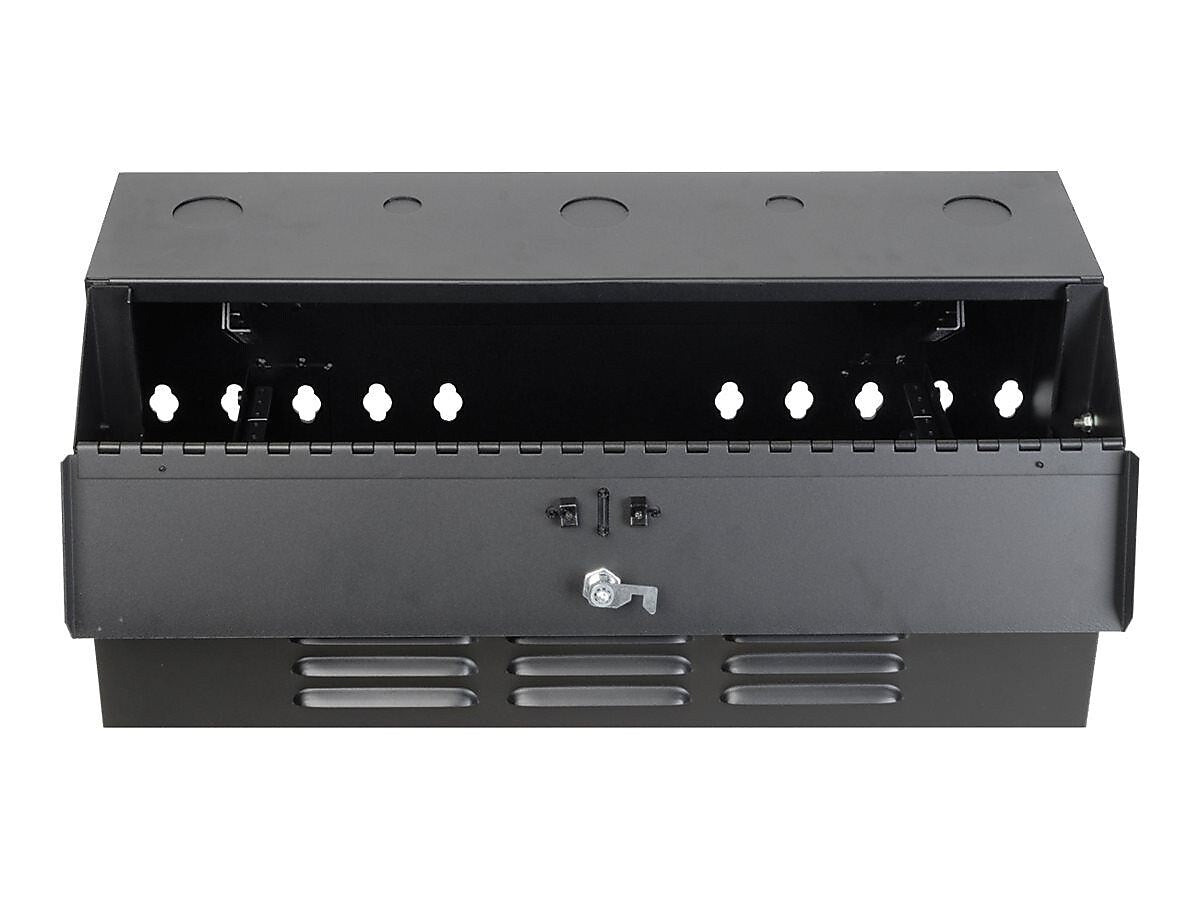

- Includes a slide-out 2U mounting bracket for patch panels up to 2 1/2" deep, top panel and reversible front door lock securely to prevent damage/theft
- Front door latch accommodates a user-supplied padlock for added security, vented cabinet keeps equipment cool, convenient ports with removable covers

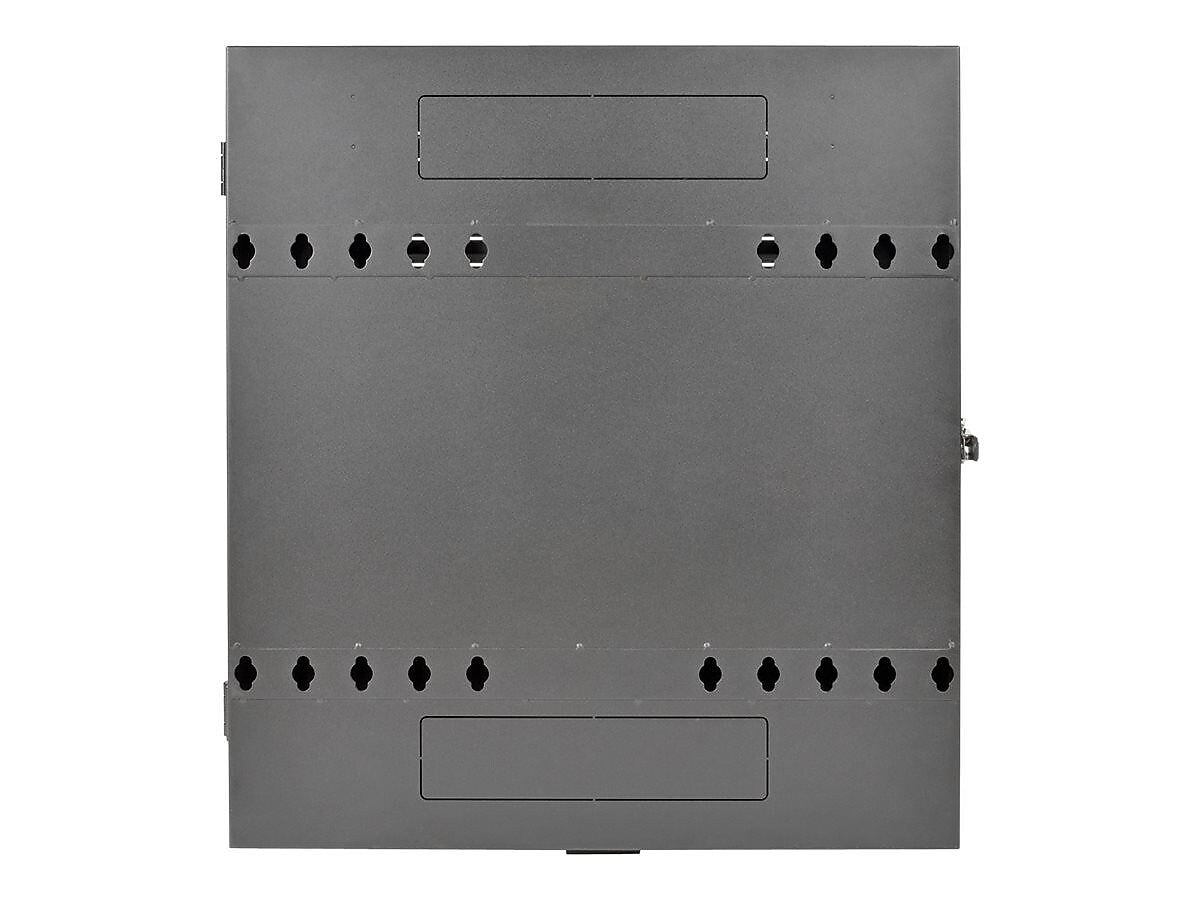

- Wall mounting holes spaced 16" apart for standard wall stud placement, rails adjust easily, threaded mounting holes support M6 or 12-24 mounting
- Rack spaces marked for easy reference, provides physical equipment and media security required for PCI DSS compliance
- Includes rack cabinet, 12 x M6 screws, 12 x M6 cup washers, 12 x 12-24 screws, 2 x keys, owner's manual
- Meets Green compliant, RoHS, EIA-310-E standards
- Weight: 27.3 Kg
- Comes with 5 year limited warranty
| Manufacturer # | SRWF4U |
| Brand Name | Tripp Lite |
| Kit | No |
| Maximum Weight Capacity (lbs) | 150 |
| Rack Units | 4U |
| Rack or Wall Mount | Rack Mount |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Series or Collection | SmartRack SRWF4U |
| Server Rack or Cabinet Type | Cabinet Enclosure |
| Warranty Information | 5 Year |
Details
The Tripp Lite SmartRack® SRWF4U 4U low-profile vertical-mount rack cabinet is designed to house shallow equipment up to 20" deep in network closets, retail locations and classrooms. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lb. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. The vented top, bottom and removable side panels allow air to flow freely through the cabinet to keep the equipment cool.
- Low profile secure rack cabinet is suitable for network wiring closets, retail locations, classrooms and back offices with limited floor space
- Dimensions: 73.15 cm H x 65.02 cm W x 20.32 cm D, 19"W (rack), Device depth: 43.18 - 50.80 cm
- Black steel
- Form factor: Wall mountable
- Maximum weight capacity: 150 lbs., static/stationary weight capacity: 150 lbs.
- Rack height (U spaces): 4
- Houses EIA-standard 19" rack equipment in 4U of space, vertical-mount cabinet extends only 8" from the wall while housing equipment up to 20" deep
- Includes a slide-out 2U mounting bracket for patch panels up to 2 1/2" deep, top panel and reversible front door lock securely to prevent damage/theft
- Front door latch accommodates a user-supplied padlock for added security, vented cabinet keeps equipment cool, convenient ports with removable covers
- Wall mounting holes spaced 16" apart for standard wall stud placement, rails adjust easily, threaded mounting holes support M6 or 12-24 mounting
- Rack spaces marked for easy reference, provides physical equipment and media security required for PCI DSS compliance
- Includes rack cabinet, 12 x M6 screws, 12 x M6 cup washers, 12 x 12-24 screws, 2 x keys, owner's manual
- Meets Green compliant, RoHS, EIA-310-E standards
- Weight: 27.3 Kg
- Comes with 5 year limited warranty
