Highlights
View Details- Backup/Run Time: 5 Minute 500VA Full Load, 17 Minute 250VA Half Load
- Battery Recharge Time: 4 Hour
- Package Contents: SMART500RT1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual

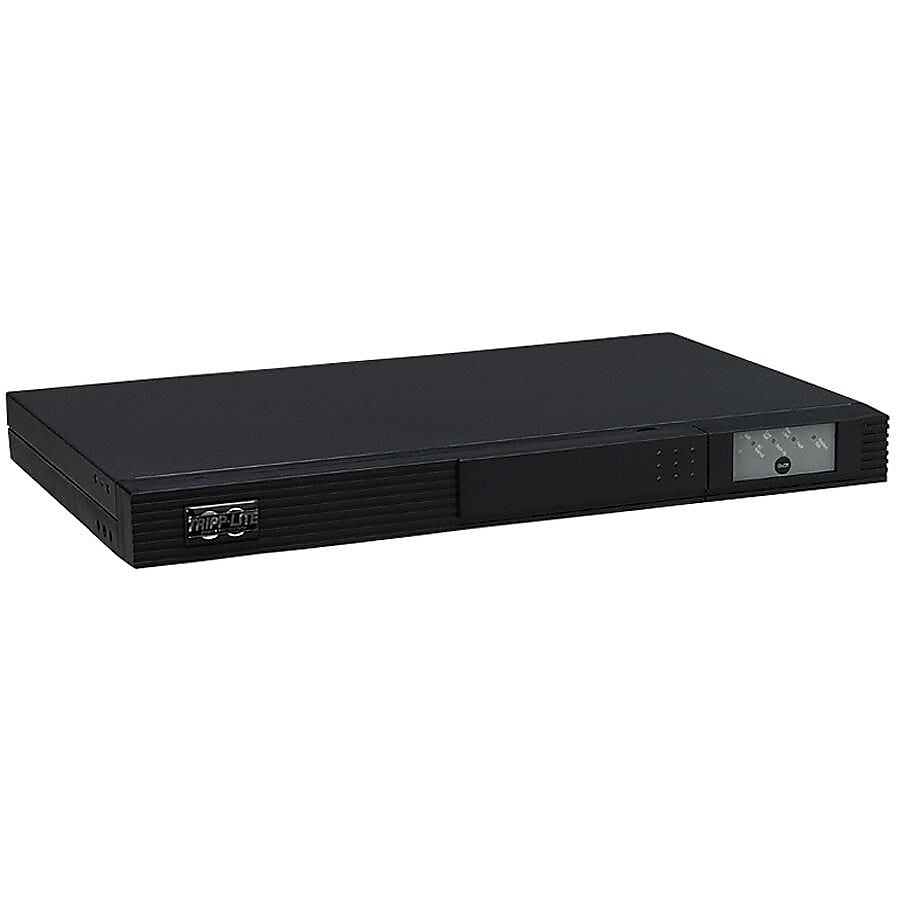

Tripp Lite UPS Smart 500VA UPS, 7-Outlets, Black (SMART500RT1U)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Keep your systems safe by adding the Tripp Lite SMART500RT1U UPS to your existing network setup. This line-interactive UPS works as a backup power option with its output power capacity of 300 W, and protects your equipment from unexpected power outages or brownouts. Its high-capacity battery provides a run time of 14.6 mins (150 W) at half load and 3.2 mins (300 W) at full load, and requires 16 hours of recharge time. For enhanced functionality, it comes with RS232 and EPO ports, and an option for SNMPWEBCARD to allow simultaneous use.
- Backup/Run Time: 5 Minute 500VA Full Load, 17 Minute 250VA Half Load
- Battery Recharge Time: 4 Hour
- Package Contents: SMART500RT1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual
- Dimensions: 17.5" Width x 11.75" Depth
- Input Voltage: 110V AC
- Interfaces/Ports: 1 x DB-9 Serial, 1 x USB
- Standard Warranty: 2 Year
- Output Voltage: 120V AC Single-phase
- Weight: 18.8 lb.
- Batteries: Sealed Lead Acid User-replaceable Hot-swappable
- Form Factor: 1U Tower/Rack Mountable
- Load Capacity: 500VA/300W
- Network Management: SNMP Manageable Optional
- Receptacles: 7 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Input Voltage Range: 120V AC Single-phase
| Manufacturer # | D77493 |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | No |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup Or Ups Device Type | Line-Interactive UPS |
| Battery Backup Or Ups Form Factor | Rackmount |
| Brand Name | Tripp Lite |
| Charge Time (hours) | 4 |
| Compliance Standards | cUL, NOM, FCC Class B certified, UL 1778 |
| Connector, Port Or Interface Type(s) | 1 x DB-9 Serial, 1 x USB |
| Depth in Inches | 11.73 |
| Height in Inches | 1.77 |
| Input Voltage | 120 VAC |
| Joule Rating | 1800 |
| Mountable | Mountable |
| On-line Phase | Single Phase |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 7 |
| Output Power Capacity (w) | 300 |
| Output Voltage | 120 VAC |
| Power Capacity (va) | 500 |
| Rack Units | 1U |
| Series Or Collection | UPS Smart 500VA 300W Rackmount AVR 120V USB DB9 SNMP 1URM |
| True Color | Black |
| Types of Battery | Other |
| Usb Connectivity | USB Connection |
| Va Rating | Less than 500 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 18.74 |
| Width in Inches | 17.5 |
Details
Keep your systems safe by adding the Tripp Lite SMART500RT1U UPS to your existing network setup. This line-interactive UPS works as a backup power option with its output power capacity of 300 W, and protects your equipment from unexpected power outages or brownouts. Its high-capacity battery provides a run time of 14.6 mins (150 W) at half load and 3.2 mins (300 W) at full load, and requires 16 hours of recharge time. For enhanced functionality, it comes with RS232 and EPO ports, and an option for SNMPWEBCARD to allow simultaneous use.
- Backup/Run Time: 5 Minute 500VA Full Load, 17 Minute 250VA Half Load
- Battery Recharge Time: 4 Hour
- Package Contents: SMART500RT1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual
- Dimensions: 17.5" Width x 11.75" Depth
- Input Voltage: 110V AC
- Interfaces/Ports: 1 x DB-9 Serial, 1 x USB
- Standard Warranty: 2 Year
- Output Voltage: 120V AC Single-phase
- Weight: 18.8 lb.
- Batteries: Sealed Lead Acid User-replaceable Hot-swappable
- Form Factor: 1U Tower/Rack Mountable
- Load Capacity: 500VA/300W
- Network Management: SNMP Manageable Optional
- Receptacles: 7 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Input Voltage Range: 120V AC Single-phase
