Highlights
View Details- Input voltage: 100/110/115/120/127 VAC nominal
- Output voltage: 100/110/115/120/127 VAC nominal +/- 3% (50/60 Hz)
- Power capacity: 2.2 kVA

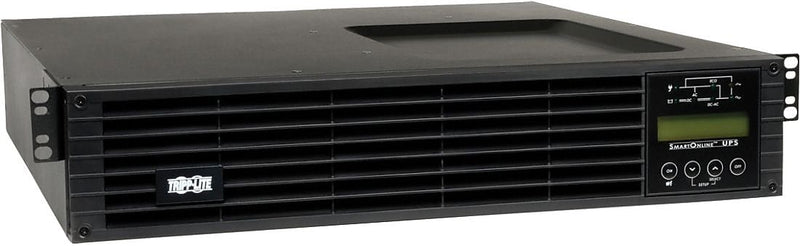

Tripp Lite UPS SmartOnline 2200VA Battery, 6-Outlets, Black (SU2200RTXLCD2U)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Extended runtime options available. Maintains battery-derived AC output during power failures with zero transfer time.
- Input voltage: 100/110/115/120/127 VAC nominal
- Output voltage: 100/110/115/120/127 VAC nominal +/- 3% (50/60 Hz)
- Power capacity: 2.2 kVA
- Plug/connector type: NEMA 5-20P, 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
- Battery information: Sealed lead acid hot swappable, 4 min 1800 W full load and 12 min 1900 W half load run time, <3 Hours recharge time, front panel battery access, 48 VDC system voltage
- Form factor: 2U tower/rack mountable
- Interface/ports: DB 9 RS 232 serial, USB
- 10' cord length
- Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions, cold start capable, high efficiency economy mode operation
- Material: Steel (housing)
- Management: Overload 30A circuit breaker protection, automatic/internal bypass switch, emergency power OFF, 7 front panel LEDs indicators, front panel LCD display, alarm indicator, 2 off/on control switches
- EMI/RFI AC noise suppression
- Power factor: 0.82, pure sine wave for battery mode, 16A input current, 570 J surge rating, fan cooling method
- Load banks support remote reboot or programmable load shedding options, supports Watchdog application, OS and hard reboot restart options for remote applications
- Operating temperature: 32 - 104 deg F (0 - 40 deg C), Storage temperature: 5 - 122 deg F ( - 15 - 50 deg C), Humidity: 0 - 95% non condensing
- Applications: Critical server and network equipment in datacenters, computer rooms and network closets
- Certifications and standards: UL 1778, CSA, FCC part 15 A, ROHS
- Includes: SU2200RTXLCD2U UPS system, PowerAlert software with USB, serial and EPO cabling, 4 post rackmount installation kit, instruction manual
- Weight: 48.5 lbs.
- Warranty: 2 years limited
Details
Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Extended runtime options available. Maintains battery-derived AC output during power failures with zero transfer time.
- Input voltage: 100/110/115/120/127 VAC nominal
- Output voltage: 100/110/115/120/127 VAC nominal +/- 3% (50/60 Hz)
- Power capacity: 2.2 kVA
- Plug/connector type: NEMA 5-20P, 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
- Battery information: Sealed lead acid hot swappable, 4 min 1800 W full load and 12 min 1900 W half load run time, <3 Hours recharge time, front panel battery access, 48 VDC system voltage
- Form factor: 2U tower/rack mountable
- Interface/ports: DB 9 RS 232 serial, USB
- 10' cord length
- Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions, cold start capable, high efficiency economy mode operation
- Material: Steel (housing)
- Management: Overload 30A circuit breaker protection, automatic/internal bypass switch, emergency power OFF, 7 front panel LEDs indicators, front panel LCD display, alarm indicator, 2 off/on control switches
- EMI/RFI AC noise suppression
- Power factor: 0.82, pure sine wave for battery mode, 16A input current, 570 J surge rating, fan cooling method
- Load banks support remote reboot or programmable load shedding options, supports Watchdog application, OS and hard reboot restart options for remote applications
- Operating temperature: 32 - 104 deg F (0 - 40 deg C), Storage temperature: 5 - 122 deg F ( - 15 - 50 deg C), Humidity: 0 - 95% non condensing
- Applications: Critical server and network equipment in datacenters, computer rooms and network closets
- Certifications and standards: UL 1778, CSA, FCC part 15 A, ROHS
- Includes: SU2200RTXLCD2U UPS system, PowerAlert software with USB, serial and EPO cabling, 4 post rackmount installation kit, instruction manual
- Weight: 48.5 lbs.
- Warranty: 2 years limited
