Highlights
View Details- Frequency: 47 - 63 Hz, 65 kHz switching
- Dimensions: 1.3"(H) x 3.61"(W) x 2.36"(D)
- Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet
Ubiquiti Gigabit Ethernet Adapter (POE-48-24W-G)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

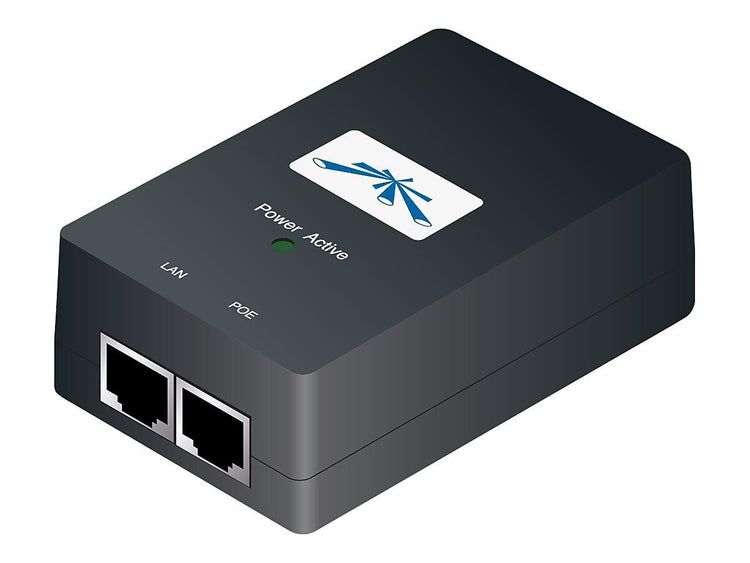

Ubiquiti™ Networks™ 48 VDC 24 W Power over Ethernet injector with gigabit LAN port features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord and features an LED display to indicate status of power.
- Frequency: 47 - 63 Hz, 65 kHz switching
- Dimensions: 1.3"(H) x 3.61"(W) x 2.36"(D)
- Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet
- Power: Output power: 24 W, input voltage: 110 - 220 VAC, 48 VDC output, input current: 600 mA at 110 VAC, 400 mA at 220 VAC, 500 mA output
- Efficiency: 80+%, output ripple: 1%, regulation: + or - 1% line, + or - 3% load, peak pulse current: 36A (10/1000microsecond) data
- Operating temperature: -10 - +60 deg C, Operating humidity: 5 - 90% non condensing
- Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power
- Shunt capacitance: <5 pf data, response time: <1 nS, 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
- Compatibility: Rocket-Ti, UAP-Pro
- Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
- Weight: 5.59 oz.
| Manufacturer # | POE4824WG |
| Brand Name | Ubiquiti |
| Compatibility | Rocket-Ti, UAP-Pro |
| Depth in Inches | 2.36 |
| Gigabit | Yes |
| Height in Inches | 1.3 |
| Network Adapter Type | Ethernet |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Voltage Rating | 110 - 220 VAC |
| Weight (lbs.) | 0.35 |
| Width in Inches | 3.61 |
Details
Ubiquiti™ Networks™ 48 VDC 24 W Power over Ethernet injector with gigabit LAN port features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord and features an LED display to indicate status of power.
- Frequency: 47 - 63 Hz, 65 kHz switching
- Dimensions: 1.3"(H) x 3.61"(W) x 2.36"(D)
- Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet
- Power: Output power: 24 W, input voltage: 110 - 220 VAC, 48 VDC output, input current: 600 mA at 110 VAC, 400 mA at 220 VAC, 500 mA output
- Efficiency: 80+%, output ripple: 1%, regulation: + or - 1% line, + or - 3% load, peak pulse current: 36A (10/1000microsecond) data
- Operating temperature: -10 - +60 deg C, Operating humidity: 5 - 90% non condensing
- Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power
- Shunt capacitance: <5 pf data, response time: <1 nS, 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
- Compatibility: Rocket-Ti, UAP-Pro
- Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
- Weight: 5.59 oz.
| Attribute Name | Attribute Value |
|---|
