Highlights
View Details- This four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse
- Features 4 x Universal Video Ports (each provides: 2 x video connectors, 1 x USB B 2.0, 1 x 3.5mm speaker), 1 x console (2 x video connectors, 2 x USB A 2.0, 1 x 3.5mm speaker)
- Dimensions: 2.2"H x 13.7"W x 5"D

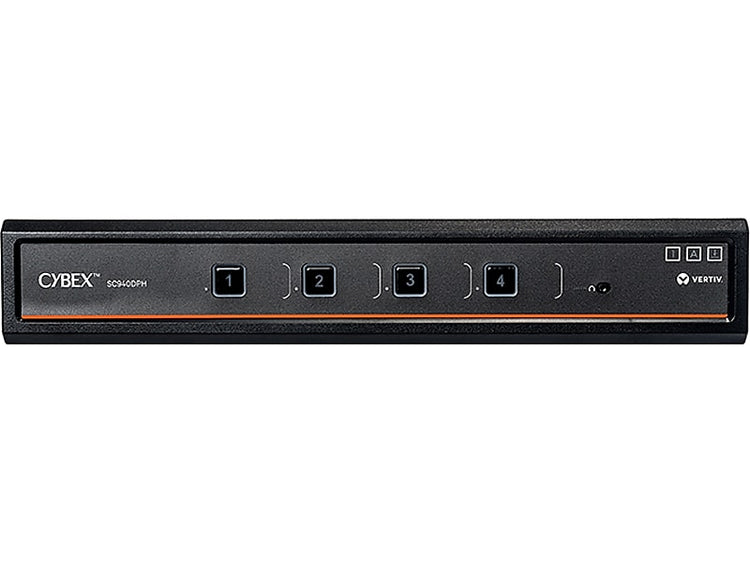

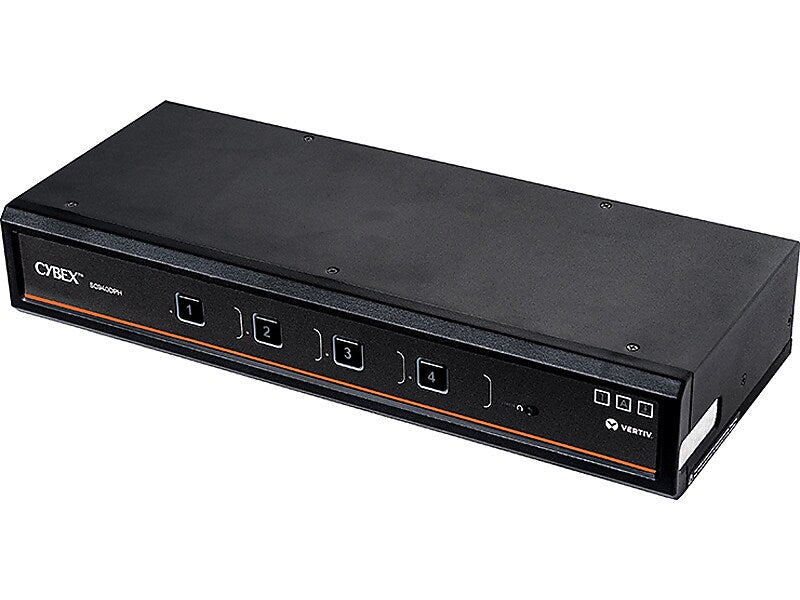

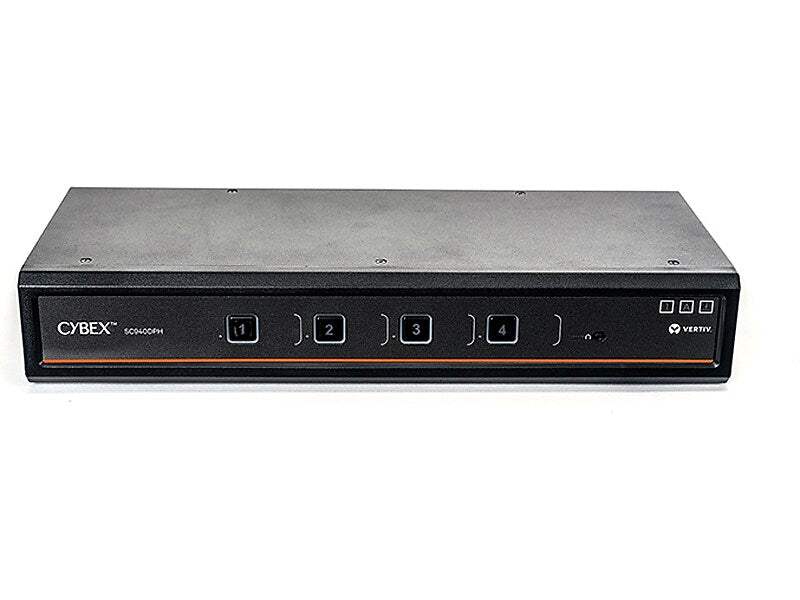

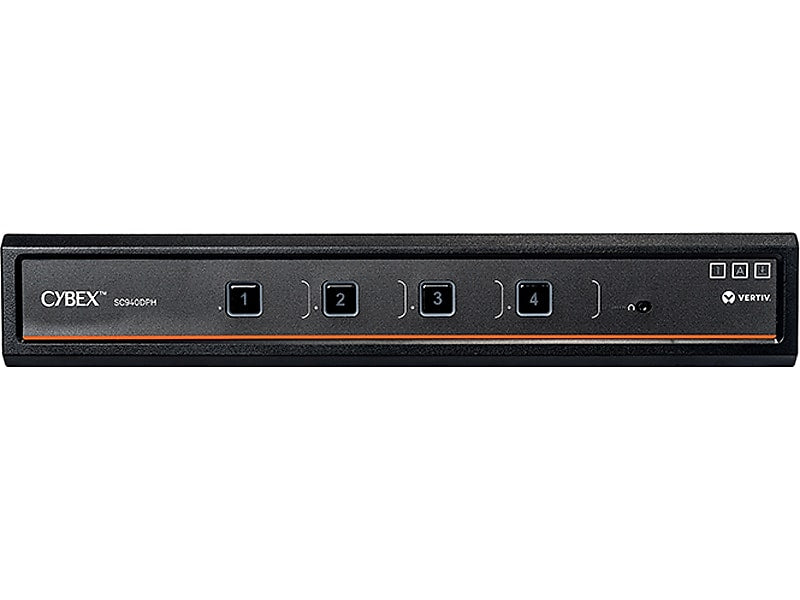

Vertiv Cybex Secure DPH SC940DPH-400 USB DisplayPort HDMI 4-Port KVM Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Vertiv Cybex SC940DPH is a four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse. The SC940DPH comes with a Universal Video Connector to support either DP, HDMI or DVI-D connectivity with resolution up to UHD 4K 60Hz. Touchscreen support and Vertiv's patented keyboard lock status indicator are all standard features.
- This four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse
- Features 4 x Universal Video Ports (each provides: 2 x video connectors, 1 x USB B 2.0, 1 x 3.5mm speaker), 1 x console (2 x video connectors, 2 x USB A 2.0, 1 x 3.5mm speaker)
- Dimensions: 2.2"H x 13.7"W x 5"D
- Supports either HDMI or DP on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
- Unidirectional data flow of keyboard, mouse, video, and audio
- Isolated switch ports provide discrete processing paths to each computer
- Native video supports up to UHD 4K at 60Hz
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Touch screen support
- Smart-card (CAC) or biometric readers for authentication on any attached computer
- Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
- Ease of setup and use
- Button LED colors can be customized for enhanced channel identification
- Always-on active anti-tampering system, and heavy-duty tamper resistant enclosure with holographic tamper evident seals
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- 3-year manufacturer limited warranty
| Manufacturer # | SC940DPH400 |
| # of Ports | 4 |
| Brand Name | Vertiv |

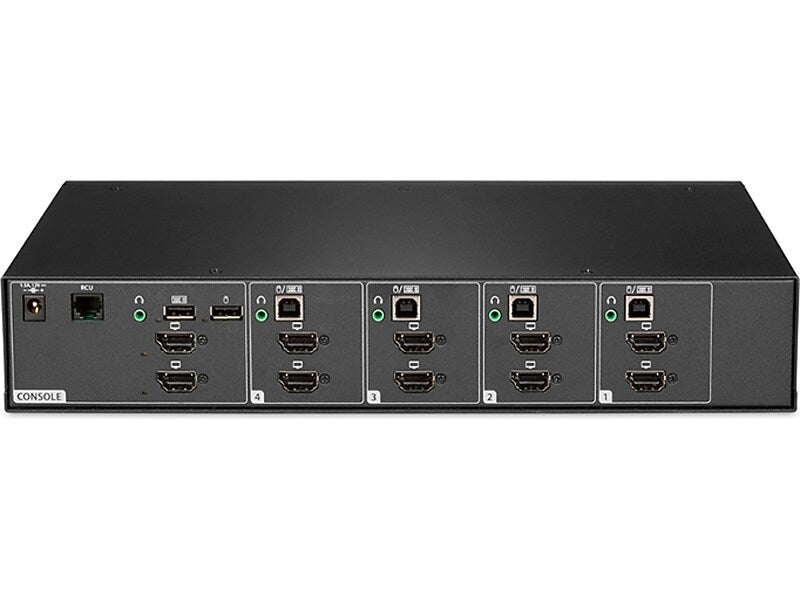

| Connector, Port or Interface Type(s) | 4 x Universal Video Ports (each provides: 2 x video connectors/1 x USB B 2.0/1 x 3.5mm)/1 x console (2 x video connectors/2 x USB A 2.0/1 x 3.5mm) |
| Connects Devices (to and From) | To up to four computers from a single keyboard, monitor and mouse |
| Display Port | Yes |
| Hdmi | Yes |
| Kvm Cable or Switch Type | KVM Switch |
| Maximum Resolution | UHD 4K (3840 x 2160), 60Hz |
| Power Source | AC Powered (100 - 240V AC), 1 x external power supply (2.5A max) |
| Series or Collection | Cybex Secure DPH |
| Usb | Yes |
| Warranty Information | 3 Year |
Details
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Vertiv Cybex SC940DPH is a four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse. The SC940DPH comes with a Universal Video Connector to support either DP, HDMI or DVI-D connectivity with resolution up to UHD 4K 60Hz. Touchscreen support and Vertiv's patented keyboard lock status indicator are all standard features.
- This four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse
- Features 4 x Universal Video Ports (each provides: 2 x video connectors, 1 x USB B 2.0, 1 x 3.5mm speaker), 1 x console (2 x video connectors, 2 x USB A 2.0, 1 x 3.5mm speaker)
- Dimensions: 2.2"H x 13.7"W x 5"D
- Supports either HDMI or DP on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
- Unidirectional data flow of keyboard, mouse, video, and audio
- Isolated switch ports provide discrete processing paths to each computer
- Native video supports up to UHD 4K at 60Hz
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Touch screen support
- Smart-card (CAC) or biometric readers for authentication on any attached computer
- Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
- Ease of setup and use
- Button LED colors can be customized for enhanced channel identification
- Always-on active anti-tampering system, and heavy-duty tamper resistant enclosure with holographic tamper evident seals
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- 3-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
