Highlights
View Details- WG9020 module have Single Mode for Fiber cable and LC (Lucent Connector) is for fiber connector.
- Network Transceiver is SFP+ Transceiver Module Used for 10 Gigabit Ethernet connectivity.
- The WG9020 module supports a data transfer rate of up to 10 Gbps, (10,000 Mbps), 10,000,000 Kbps (Kilobits per second) over optical fiber.
WatchGuard Firebox Gigabit Ethernet Optical Fiber SFP+ Transceiver Module, 10,000 Mbps (WG9020)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

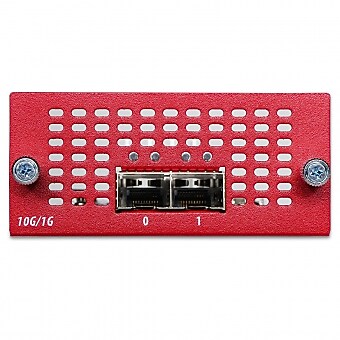

WatchGuard WG9020 Firebox M-Series 2-Port 10GbE SFP+ Expansion Module The WatchGuard Firebox M-Series 2-Port 10-Gigabit SFP+ Expansion Module allows you to add more interfaces to your M-Series Firebox appliance (sold separately). It is easily installed in the interface slot on your 3rd Gen Firebox (see specifications tab for compatibility).
- WG9020 module have Single Mode for Fiber cable and LC (Lucent Connector) is for fiber connector.
- Network Transceiver is SFP+ Transceiver Module Used for 10 Gigabit Ethernet connectivity.
- The WG9020 module supports a data transfer rate of up to 10 Gbps, (10,000 Mbps), 10,000,000 Kbps (Kilobits per second) over optical fiber.
- This module supports a maximum distance of up to 10,000 meters when using single-mode fiber.
- The WG9020 module Supports 10 Gigabit Ethernet
- Power Consumption for this module is 2.5 watts.
- This module is msa compliant.
- It supports MTBF 1,000,000 hours.
- The WG9020 module operates at a wavelength of 1310 nm.
| Manufacturer # | WG9020 |
| Brand Name | WatchGuard |
| Compatibility | Firebox M290, Firebox M390, Firebox M590, Firebox M690 |
| Connector, Port or Interface Type(s) | LC (Lucent Connector), SFP+ (Small Form-factor Pluggable Plus) |
| Data Transfer Rate | 10,000 mbps |
| Data Transfer Rate (gbps) | 10 |
| Data Transfer Rate (mbps) | 10000 |
| Depth in Inches | 9.29 |
| Ethernet | Yes |
| Fiber Cable Type | Single Mode |
| Fiber Connector Type | LC |
| Gigabit | Yes |
| Height in Inches | 2.4 |
| Hot Swappable | No |
| Msa Compliant | Yes it is msa compliant |
| Mtbf (hours) | 1000000 |
| Material of Item | Metal |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Max. Distance (meters) | 10000 |
| Network Transceiver Type | SFP+ |
| Operating Temperature (celsius) | 0° to 40°C |
| Operating Temperature (fahrenheit) | (32° to 104°F) |
| Power Consumption (watts) | 2.5 |
| Protocols | 10 Gigabit Ethernet, SFP+ (Small Form-factor Pluggable Plus) |
| Selling Quantity (uom) | Each |
| Series or Collection | Firebox |
| True Color | Red |
| Used for | The WG9020 module is used to provide 10 Gigabit Ethernet connectivity over optical fiber networks. |
| Wavelength (nm) | 1310 |
| Weight (lbs.) | 0.04 |
| Width in Inches | 5.98 |
Details
WatchGuard WG9020 Firebox M-Series 2-Port 10GbE SFP+ Expansion Module The WatchGuard Firebox M-Series 2-Port 10-Gigabit SFP+ Expansion Module allows you to add more interfaces to your M-Series Firebox appliance (sold separately). It is easily installed in the interface slot on your 3rd Gen Firebox (see specifications tab for compatibility).
- WG9020 module have Single Mode for Fiber cable and LC (Lucent Connector) is for fiber connector.
- Network Transceiver is SFP+ Transceiver Module Used for 10 Gigabit Ethernet connectivity.
- The WG9020 module supports a data transfer rate of up to 10 Gbps, (10,000 Mbps), 10,000,000 Kbps (Kilobits per second) over optical fiber.
- This module supports a maximum distance of up to 10,000 meters when using single-mode fiber.
- The WG9020 module Supports 10 Gigabit Ethernet
- Power Consumption for this module is 2.5 watts.
- This module is msa compliant.
- It supports MTBF 1,000,000 hours.
- The WG9020 module operates at a wavelength of 1310 nm.
| Attribute Name | Attribute Value |
|---|
