Highlights
View Details- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color

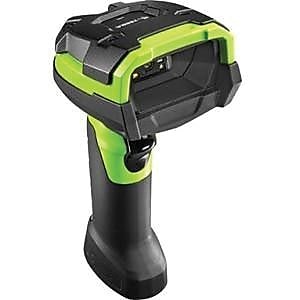

Zebra DS3678-ER 1D/2D Ultra-Rugged Handheld Barcode Scanner, Wireless, Industrial Green (DS3678-ER3U4212SVW)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Zebra DS3678-ER3U4212SVW ultra-rugged wireless handheld barcode scanner in industrial green color, is designed to capture any 1D or 2D barcode from near contact to as far as 70' away. This scanner provides the ultimate in versatility and performance, which helps you drive throughput, accuracy and customer service to a new level.
- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Power source: 4.5 to 5.5 VDC (host powered), 11.4 VDC - 12.6 VDC (external), PowerPrecision+ 3100 mAh lithium-ion rechargeable battery
- Illumination: One 660 nm LED, scans per full charge: 70000+
- Imager field of view: Near: 42 deg (horizontal) x 20 deg (vertical), Far: 12 deg (horizontal) x 7.6 deg (vertical)
- Print contrast: 25% min, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Connectivity: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Depth of field: 5.0 to 100" at code 15 mil, 3.5 to 260" at code 40 mil, 20 to 840" at code 100 mil, 4 to 44" at code 10 mil
- Input type: 1D, 2D
- Barcode symbology supported: Code 39, code 128, code 93, codabar/NW7, code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, base 32
- Temperature: -20 to 50 deg C operating, -40 to 70 deg C storage, humidity: 5 to 95% condensing
- The most indestructible design in its class, extreme temperature rating, multi-code captures & processes up to 20 barcodes simultaneously
- Includes standard cradle - USB kit, scan cable, power supply line cord
- Meets EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 standards
- Weight: 15.38 oz.
- Comes with 3 year warranty
| Manufacturer # | DS3678ER3U4212SVW |
| Barcode Reader & Scanner Type | Barcode Scanners |
| Brand Name | Zebra |
| Warranty Information | 3 Year |
Details
The Zebra DS3678-ER3U4212SVW ultra-rugged wireless handheld barcode scanner in industrial green color, is designed to capture any 1D or 2D barcode from near contact to as far as 70' away. This scanner provides the ultimate in versatility and performance, which helps you drive throughput, accuracy and customer service to a new level.
- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Power source: 4.5 to 5.5 VDC (host powered), 11.4 VDC - 12.6 VDC (external), PowerPrecision+ 3100 mAh lithium-ion rechargeable battery
- Illumination: One 660 nm LED, scans per full charge: 70000+
- Imager field of view: Near: 42 deg (horizontal) x 20 deg (vertical), Far: 12 deg (horizontal) x 7.6 deg (vertical)
- Print contrast: 25% min, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Connectivity: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Depth of field: 5.0 to 100" at code 15 mil, 3.5 to 260" at code 40 mil, 20 to 840" at code 100 mil, 4 to 44" at code 10 mil
- Input type: 1D, 2D
- Barcode symbology supported: Code 39, code 128, code 93, codabar/NW7, code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, base 32
- Temperature: -20 to 50 deg C operating, -40 to 70 deg C storage, humidity: 5 to 95% condensing
- The most indestructible design in its class, extreme temperature rating, multi-code captures & processes up to 20 barcodes simultaneously
- Includes standard cradle - USB kit, scan cable, power supply line cord
- Meets EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 standards
- Weight: 15.38 oz.
- Comes with 3 year warranty
| Attribute Name | Attribute Value |
|---|
