Highlights
View Details- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
Zebra DS3678-SR 1D/2D Ultra-Rugged Handheld Barcode Scanner, Wireless, Industrial Green (DS3678-SR3U42A0SFW)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

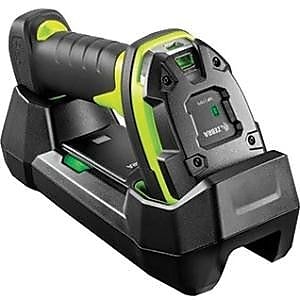

The Zebra DS3678-SR3U42A0SFW ultra-rugged wireless handheld barcode scanner in industrial green color, comes with a high impact housing that is virtually impenetrable. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5' away. It comes with a complete solution that includes a sealed rugged cradle, a smart battery and Zebra's Wi-Fi friendly mode that prevents interference with your Wi-Fi network.
- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Power source: 4.5 to 5.5 VDC (host powered), 11.4 VDC - 12.6 VDC (external), PowerPrecision+ 3100 mAh lithium-ion rechargeable battery
- Illumination: 1 hyper red 660 nm LED, scans per full charge: 70000+
- Imager field of view: 42 deg (horizontal), 28 deg (vertical)
- Print contrast: 15% min, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Connectivity: Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Depth of field: 1.3 to 6.7" at code 5 mil, 2.8 to 28" at code 20 mil, 1.7 to 60" at code 40 mil, 1.9 to 6" at code 7.5 mil
- Input type: 1D, 2D
- Barcode symbology supported: Code 39, code 128, code 93, codabar/NW7, code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, base 32
- Temperature: -20 to 50 deg C operating, -40 to 70 deg C storage, humidity: 5 to 95% condensing
- The most indestructible design in its class, extreme temperature rating, multi-code captures & processes up to 20 barcodes simultaneously
- Includes standard cradle - USB kit cable 12 V P/S cradle power supply
- Meets EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 standards
- Weight: 14.4 oz.
- Comes with 3 year warranty
| Manufacturer # | DS3678SR3U42A0SFW |
| Barcode Reader & Scanner Type | Barcode Scanners |
| Brand Name | Zebra |
| Warranty Information | 3 Year |
Details
The Zebra DS3678-SR3U42A0SFW ultra-rugged wireless handheld barcode scanner in industrial green color, comes with a high impact housing that is virtually impenetrable. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5' away. It comes with a complete solution that includes a sealed rugged cradle, a smart battery and Zebra's Wi-Fi friendly mode that prevents interference with your Wi-Fi network.
- Handheld wireless ultra-rugged barcode scanner is perfect for capture 1D and 2D barcodes at standard ranges
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Power source: 4.5 to 5.5 VDC (host powered), 11.4 VDC - 12.6 VDC (external), PowerPrecision+ 3100 mAh lithium-ion rechargeable battery
- Illumination: 1 hyper red 660 nm LED, scans per full charge: 70000+
- Imager field of view: 42 deg (horizontal), 28 deg (vertical)
- Print contrast: 15% min, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Connectivity: Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Depth of field: 1.3 to 6.7" at code 5 mil, 2.8 to 28" at code 20 mil, 1.7 to 60" at code 40 mil, 1.9 to 6" at code 7.5 mil
- Input type: 1D, 2D
- Barcode symbology supported: Code 39, code 128, code 93, codabar/NW7, code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, base 32
- Temperature: -20 to 50 deg C operating, -40 to 70 deg C storage, humidity: 5 to 95% condensing
- The most indestructible design in its class, extreme temperature rating, multi-code captures & processes up to 20 barcodes simultaneously
- Includes standard cradle - USB kit cable 12 V P/S cradle power supply
- Meets EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 standards
- Weight: 14.4 oz.
- Comes with 3 year warranty
| Attribute Name | Attribute Value |
|---|
