Highlights
View Details- Ultra-rugged handheld barcode scanner
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color

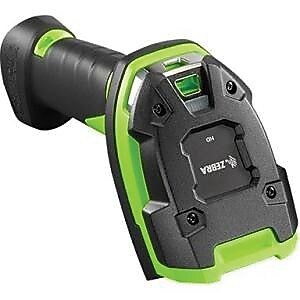

Zebra Technologies DS3678-SR3U4210SFW Barcode Scanner, Handheld
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Zebra DS3678-SR3U4210SFW barcode scanner in industrial green color, offers superior scanning performance on any 1D/2D barcodes, even if they are under heavy shrink-wrap or damaged, dirty or poorly printed. The Bluetooth v4.0 provides secure wireless communication and maximum energy efficiency. Its rugged design withstands multiple 8' drops to concrete. It has USB, RS232 and keyboard wedge interfaces for external connectivity.
- Ultra-rugged handheld barcode scanner
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Barcode symbology supported: 1D - Code 39, code 128, code 93, codabar/NW7, code 11, 2D - PDF417, micro PDF417, Aztec, DataMatrix, Maxi code
- Imager field of view: 42 deg (horizontal), 28 deg (vertical)
- Connectivity: Wireless, Bluetooth 4.0 LE
- Power: 4.5 - 5.5 VDC (host powered), 11.4 - 12.6 VDC (external), 3100 mAh lithium-ion rechargeable battery
- User indicators: Beeper, LED indicator, vibration, image sensor: 1280 x 800 pixels
- Illumination: 1 x hyper red 660 nm LED, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Decode ranges: 1.3 to 6.7" at 5 mil code 128, 2.8 to 28" at 20 mil code 128, 1.7 to 60" at 40 mil code 128, 1.9 to 6" at 7.5 mil DataMatrix
- Temperature: -4 to 122 deg F (operating), -40 to 158 deg F (storage), Humidity: 5% to 95% condensing
- Multi-code captures and processes up to 20 barcodes simultaneously
- Advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen
- Features dustproof, sprayproof and waterproofed to IP67 - can be sprayed down with jetting water and even submersed in water for up to 30 min
- Includes sealed rugged cradle
- Meets RoHS EN 50581: 2012, CAN/CSA C22.2 No. 60950-1-07, CU, EN 50581:2012, EN 55022:2010/AC:2011, EN 55024:2010, EN 60601-1-2:2007 standards
- Weight: 14.4 oz.
- Comes with 3 year warranty
| Manufacturer # | 5A0032 |
| Barcode Reader & Scanner Type | Barcode Scanners |
| Brand Name | Zebra Technologies |
| Connector, Port or Interface Type(s) | USB, RS232, keyboard wedge |
| Depth in Inches | 5.6 |
| Display Color | Red |
| Handheld or Mounted | Handheld |
| Height in Inches | 7.3 |
| Power Source | Battery powered |
| Scan Resolution | 1280 x 800 pixels |
| Series or Collection | DS3678 |
| True Color | Industrial Green |
| Warranty Information | 3 Year |
| Weight (ounces) | 14.4 |
| Width in Inches | 3 |
| Esigning Surface | Not Signature Compatible |
Details
The Zebra DS3678-SR3U4210SFW barcode scanner in industrial green color, offers superior scanning performance on any 1D/2D barcodes, even if they are under heavy shrink-wrap or damaged, dirty or poorly printed. The Bluetooth v4.0 provides secure wireless communication and maximum energy efficiency. Its rugged design withstands multiple 8' drops to concrete. It has USB, RS232 and keyboard wedge interfaces for external connectivity.
- Ultra-rugged handheld barcode scanner
- Dimensions: 7.3"H x 3"W x 5.6"D
- Comes in industrial green color
- Interfaces/ports: USB, RS232, keyboard wedge
- Barcode symbology supported: 1D - Code 39, code 128, code 93, codabar/NW7, code 11, 2D - PDF417, micro PDF417, Aztec, DataMatrix, Maxi code
- Imager field of view: 42 deg (horizontal), 28 deg (vertical)
- Connectivity: Wireless, Bluetooth 4.0 LE
- Power: 4.5 - 5.5 VDC (host powered), 11.4 - 12.6 VDC (external), 3100 mAh lithium-ion rechargeable battery
- User indicators: Beeper, LED indicator, vibration, image sensor: 1280 x 800 pixels
- Illumination: 1 x hyper red 660 nm LED, skew: +/- 60 deg, pitch: +/- 60 deg, roll: +/- 360 deg
- Data rate: 3 Mbps (2.1 Mbps) for classic Bluetooth, 1 Mbps (0.27 Mbps) for low energy
- Decode ranges: 1.3 to 6.7" at 5 mil code 128, 2.8 to 28" at 20 mil code 128, 1.7 to 60" at 40 mil code 128, 1.9 to 6" at 7.5 mil DataMatrix
- Temperature: -4 to 122 deg F (operating), -40 to 158 deg F (storage), Humidity: 5% to 95% condensing
- Multi-code captures and processes up to 20 barcodes simultaneously
- Advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen
- Features dustproof, sprayproof and waterproofed to IP67 - can be sprayed down with jetting water and even submersed in water for up to 30 min
- Includes sealed rugged cradle
- Meets RoHS EN 50581: 2012, CAN/CSA C22.2 No. 60950-1-07, CU, EN 50581:2012, EN 55022:2010/AC:2011, EN 55024:2010, EN 60601-1-2:2007 standards
- Weight: 14.4 oz.
- Comes with 3 year warranty
